Bringsmart JGY-370 Worm Gear Electric Motor DC 6V 24 Volt 12v DC Gear Motor
JGY-370
Bringsmart JGY-370 Worm Gear Electric Motor DC 6V 24 Volt 12v DC Gear Motor
Quantity
Why Choose Bringsmart JGY-370 Motor:
Global Compliance and Certified Quality We understand that quality and compliance are non-negotiable for the European and US markets. Our commitment to excellence is proven by:
ISO 9001 Certified Manufacturing: All Bringsmart motors are produced under strict quality control standards, ensuring consistency and reliability across every batch.
CE & RoHS Compliant: Bringsmart motors meet the necessary environmental and safety standards required for distribution and use in European Union (CE) and global markets (RoHS).
Your Long-Term Partnership Guarantee We stand behind the durability of our engineering. We offer a flexible and comprehensive 6 to 60-month after-sales warranty and support service based on your specific project requirements, minimizing your operational risks and ensuring continuous performance.
ISO 9001 Certified Manufacturing: All Bringsmart motors are produced under strict quality control standards, ensuring consistency and reliability across every batch.
CE & RoHS Compliant: Bringsmart motors meet the necessary environmental and safety standards required for distribution and use in European Union (CE) and global markets (RoHS).
Your Long-Term Partnership Guarantee We stand behind the durability of our engineering. We offer a flexible and comprehensive 6 to 60-month after-sales warranty and support service based on your specific project requirements, minimizing your operational risks and ensuring continuous performance.
Bringsmart is a professional motor manufacturer with over a decade of expertise in the industry,having served more than 16,500 brand clients to date, the company counts renowned enterprises such as Apple, Haier, Lenovo, Deli, and Xiaopeng Automobile among its partners(many of whom have entered into confidentiality agreements).
Bringsmart JGY-370 Worm Gear Electric Motor 0.3-20Kg.cm DC 6V 24 Volt 12v DC Gear Motor
The Worm Gear Electric Motor is made of high quality material:
Shell:zinc alloy aluminum material, according to the customer's use environment to do anti-rust treatment, such as more humid environment.
Turbine, worm gear: using high-quality pure copper, if you need to run quietly, can be upgraded to high-quality mute material.
Other gears: adopting ball precision gears, all-metal gears, which can withstand higher torque than ordinary gears and reduce the risk of tooth breakage.
Turbine, worm gear: using high-quality pure copper, if you need to run quietly, can be upgraded to high-quality mute material.
Other gears: adopting ball precision gears, all-metal gears, which can withstand higher torque than ordinary gears and reduce the risk of tooth breakage.
JGY-370 Worm gear electric motor application for coffee machine motor, coffee marker, BBQ machine, automatic Vending machines, Robot, CNC machining, etc.
Compact Structure of JGY-370 Worm Gear Electric Motor:
Unlike ordinary motors, the output shaft of right angle gear motor is 90 degrees perpendicular to the input shaft, which makes the structure more compact and saves installation space. Worm gear electric motor is especially suitable for the equipment which has restriction on the installation position. Nowadays, the products are developing in the direction of intelligentization and smaller and smaller volume, so this Worm gear electric motor design is more widely used.
Self-locking Design For JGY-370 Worm Gear Electric Motor
Worm gear electric motor under certain conditions, the motor stops, the shaft will be locked due to the internal worm gear design, will not occur reversal or positional shift. Worm gear electric motor is safer and can partially replace the braking device, which is especially suitable for projects with this kind of demand, such as escalators, automatic locks, automatic doors of chicken coops, elevating platforms, cranes and so on.
You can find out how the worm gear motor is self-locking by following the link below: Advantages of Bringsmart worm gear motor？
JGY-370 Worm gear electric motor application for coffee machine motor, coffee marker, BBQ machine, automatic Vending machines, Robot, CNC machining, etc.
Product data of JGY-370 Worm Gear Electric Motor
Basic information
| Sort by power source type | DC |
| Diameter of gearbox (mm） | 46*32 |
| Diameter of gearbox (inch） | 1.81*1.26 |
| Max. length（mm） | 82 |
| Max. length（inch） | 3.23 |
| Companies producing the product | Fuzhou Bringsmart Intelligent Tech. Co., Ltd |
Input
| Operating voltage (v) | 6v 24v 12v dc gear motor |
| Operating current | 0.015-1.7A |
Output
| No load speed | 1-375rpm |
| Load speed | 0.7-260rpm |
| Load torque | 0.4-20kg.com |
| Load power | 0.5-1.3w |
| Stall torque | 1-60kg.com |
Parameter of JGY-370 Worm Gear Electric Motor
JGY-370 parameter can be customized according to your requirements voltage, 6V, 12V 24V, speed, torque, the following is only the standard parameters,
if you need other parameters, please contact us.
| Model: JGY-370 | Parameter Table | ||||||||||
| Voltage | No Load | Load Torque | Stall | Reducer | Weight | ||||||
| Workable Range | Rated Volt.V | Speed (rpm) | Current (ma) | Speed (rpm) | Current (ma) | Torque (kg.cm) | Output (W) | Torque (kg.cm) | Current (A) | Ratio | Unit (g) |
| 3-9V | 6 | 375 | 40 | 260 | 250 | 0.5 | 1.3 | 1.5 | 1.7 | 16 | 165 |
| 3-9V | 6 | 160 | 40 | 128 | 250 | 0.7 | 1.3 | 2.8 | 1.7 | 37.3 | 165 |
| 3-9V | 6 | 40 | 40 | 32 | 250 | 2.5 | 1.3 | 10 | 1.7 | 150 | 167 |
| 3-9V | 6 | 18 | 40 | 14 | 250 | 5 | 1.3 | 20 | 1.7 | 324 | 168 |
| 3-9V | 6 | 10 | 40 | 8 | 250 | 10 | 1.3 | 40 | 1.7 | 588 | 170 |
| 3-9V | 6 | 6 | 40 | 4 | 250 | 15 | 1.3 | 60 | 1.7 | 972 | 170 |
| 3-9V | 6 | 3 | 40 | 2 | 250 | 20 | 1.3 | 60 | 1.7 | 1720 | 175 |
| 3-9V | 6 | 2 | 40 | 1.5 | 250 | 20 | 1.3 | 60 | 1.7 | 3000 | 175 |
| 6-15V | 12 | 375 | 35 | 260 | 180 | 0.4 | 1.1 | 1.5 | 1 | 16 | 165 |
| 6-15V | 12 | 160 | 35 | 128 | 180 | 0.55 | 1.1 | 2.2 | 1 | 37.3 | 165 |
| 6-15V | 12 | 40 | 35 | 32 | 80 | 2.2 | 1.1 | 8 | 1 | 150 | 167 |
| 6-15V | 12 | 18 | 35 | 14 | 180 | 4.8 | 1.1 | 16 | 1 | 324 | 168 |
| 6-15V | 12 | 10 | 35 | 8 | 180 | 8 | 1.1 | 32 | 1 | 588 | 170 |
| 6-15V | 12 | 6 | 35 | 4 | 180 | 14 | 1.1 | 56 | 1 | 972 | 170 |
| 6-15V | 12 | 3 | 35 | 2 | 180 | 14 | 1.1 | 56 | 1 | 1720 | 170 |
| 6-15V | 12 | 2 | 15 | 1.5 | 60 | 10 | 0.5 | 40 | 1 | 3000 | 170 |
| 12-26V | 24 | 237 | 15 | 165 | 60 | 0.3 | 0.5 | 1 | 0.3 | 16 | 165 |
| 12-26V | 24 | 101 | 15 | 80 | 60 | 0.5 | 0.5 | 2 | 0.3 | 37.3 | 165 |
| 12-26V | 24 | 25 | 15 | 20 | 60 | 1.5 | 0.5 | 6 | 0.3 | 150 | 167 |
| 12-26V | 24 | 12 | 15 | 9 | 60 | 3 | 0.5 | 12 | 0.3 | 324 | 168 |
| 12-26V | 24 | 6 | 15 | 4 | 60 | 6 | 0.5 | 24 | 0.3 | 588 | 170 |
| 12-26V | 24 | 4 | 15 | 3 | 60 | 14 | 0.5 | 56 | 0.3 | 972 | 170 |
| 12-26V | 24 | 2 | 15 | 1.5 | 60 | 18 | 0.5 | 56 | 0.3 | 1720 | 175 |
| 12-26V | 24 | 1 | 15 | 0.7 | 60 | 20 | 0.5 | 56 | 0.3 | 3000 | 175 |

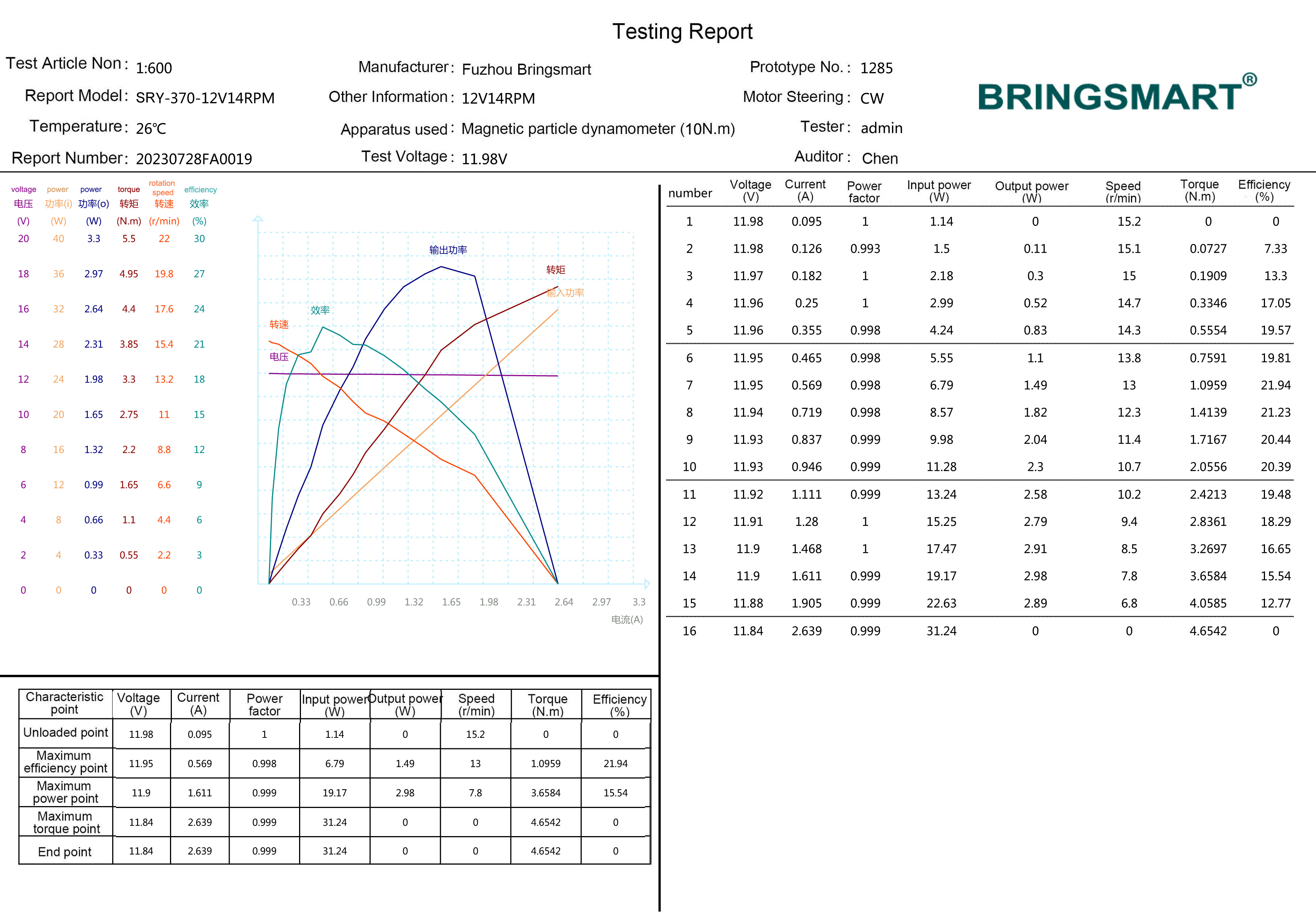

Contact us for a Test Report of JGY-370 Worm Gear Electric Motor
Our JGY-370 is available in various speeds, the following shows current, torque and speed data for 12v DC gear motor, no load speed 40rpm.
Please contact us for other speeds.
Applicable Industriesfor JGY-370 Worm Gear Electric Motor
Bringsmart worm gear motor has a wide range of applications, and you can see it in almost every industry. It can be used in coffee machine motor, coffee marker, automatic barbecue machine, chicken house automatic door,automatic Vending machines, Robot, CNC machining, etc. You can click on the picture below to understand the industry JGY-370 worm gear motor is suitable for.
| Smart Home Appliances | Agriculture and Animal Husbandry | Mall Automation Industry | Robotics Industry |
 |  |  |  |
Custom Case for JGY-370 Worm Gear Electric Motor
You can click on the picture below to see how Bringsmart worm gear motor provides customized services for brand customers, solving the problems of high noise, insufficient torque, short life, waterproof, electromagnetic interference and high cost (the following cases involving privacy have been confidential or have been approved by customers).
| Motor for motorized curtains | Motor for ice cream vending machine | Motor for automatic chicken coop door |
 |  |  |

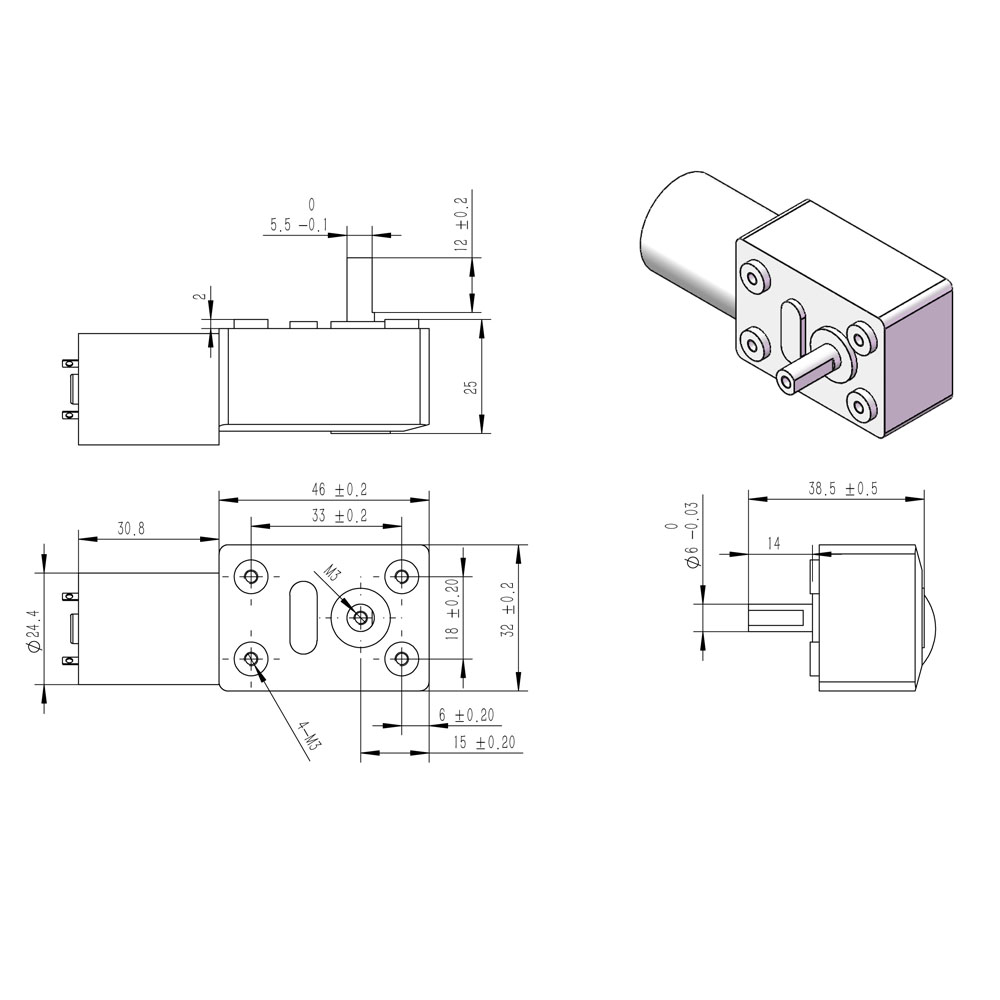

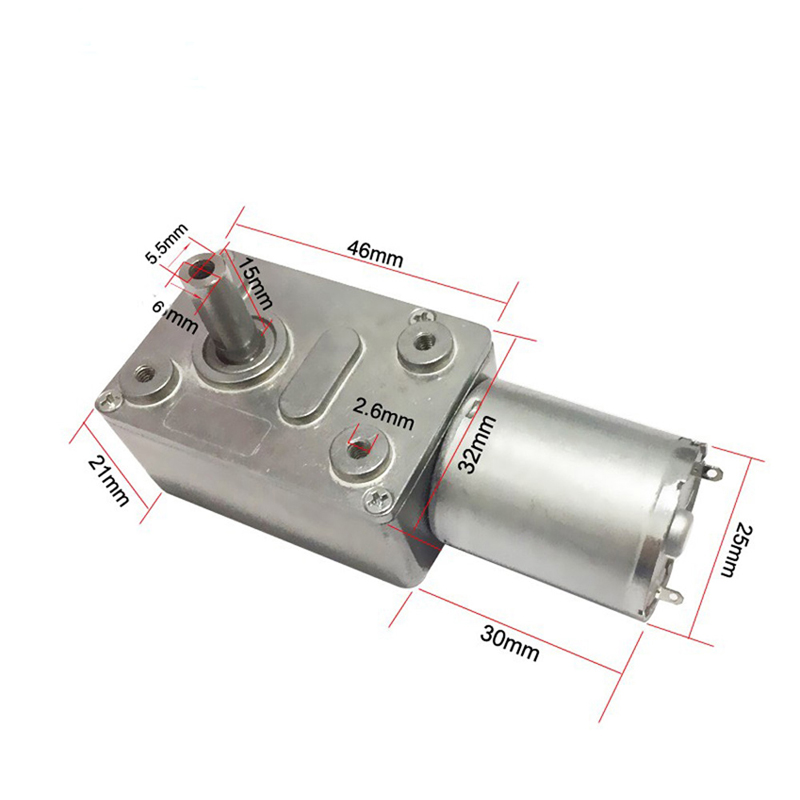

Size of JGY-370 Worm Gear Electric Motor-mm (Contact us to request STEP CAD files )
If you are not satisfied with the speed or torque of JGY-370 Worm Gear Electric Motor, then we recommend you other motors, you can click to check the following.
Only some of the models are shown, you can also contact us for others.
Below are the different shaft styles of this motor, we can customize the shaft length and shape according to your needs.

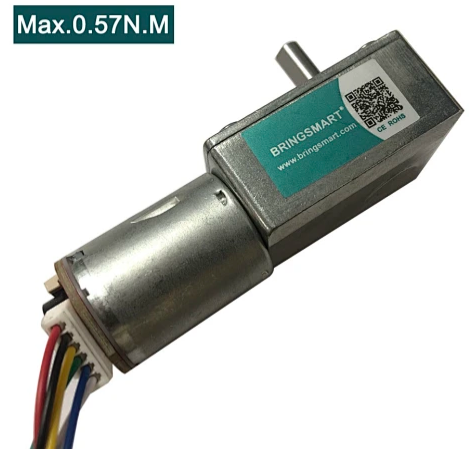

With encoder style: can provide precise speed and position control.
With encoder style: can provide precise speed and position control.
(click on picture to learn more)

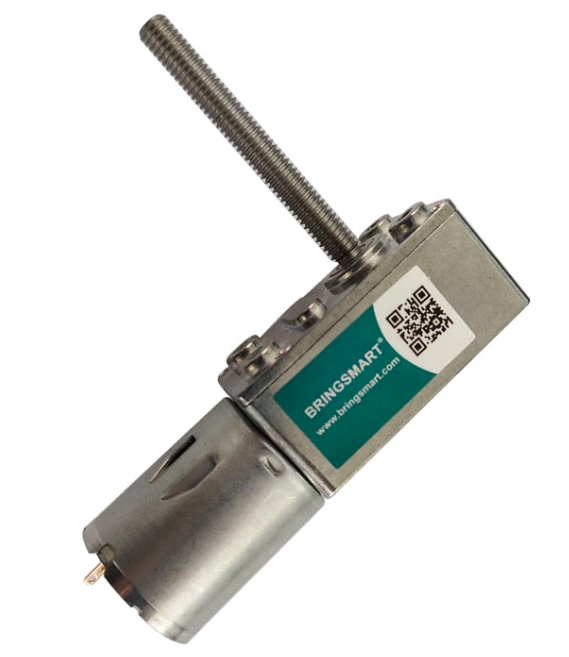

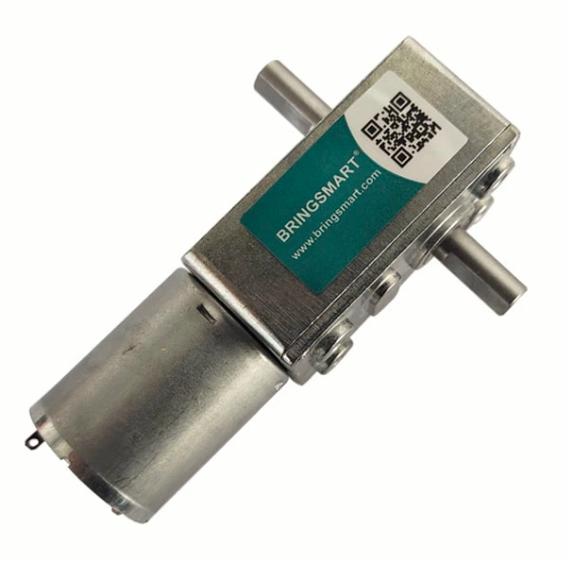

Dual shaft motor | Long and screw shaft motor | With encoder gear motor |
 |  |  |
Below is the worm gear motor with higher torque. (click on picture to learn more)

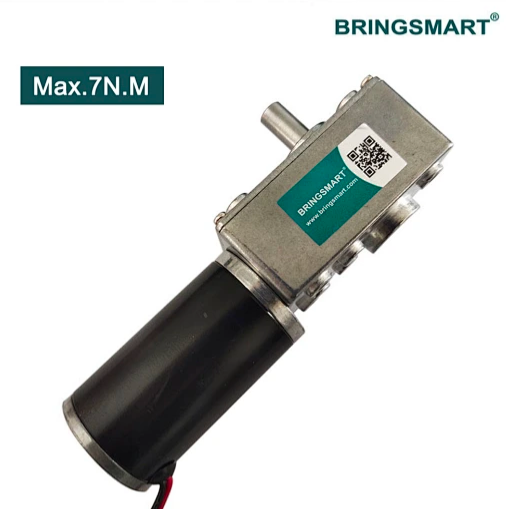

Max. torque: 70kgf.cm | Max. torque: 120kgf.cm | Max. torque: 400kgf.cm |
 |  |  |
BRINGSMART MOTOR DESIGN
If you are interested in this motor, then you can also find out more about what we can do for your project, which can reduce your project costs and development time.
Multiple parameters
We can do many kinds of gearmotor voltage, current, speed, load, just tell us the parameters you need.
Shaft modifications
If your project has a customized need for the gear motors shaft material (carbon steel, alloy steel, stainless steel, etc.), shaft length (long shaft, short shaft, single shaft, double shaft), shaft shape (d-cuts, keyway cuts, location holes, threaded shafts, and shaped shafts), please give us your drawings, and we use the most advanced shaft machining equipments to meet your needs.
Wires and connectors
We can assemble the length and parameters of wires and connectors of dc brush and brushless motors according to your requirements.
Customised wiresets including all manner of connectors from JST, Hirose, AMP, Molex, AVX, and Kyocera

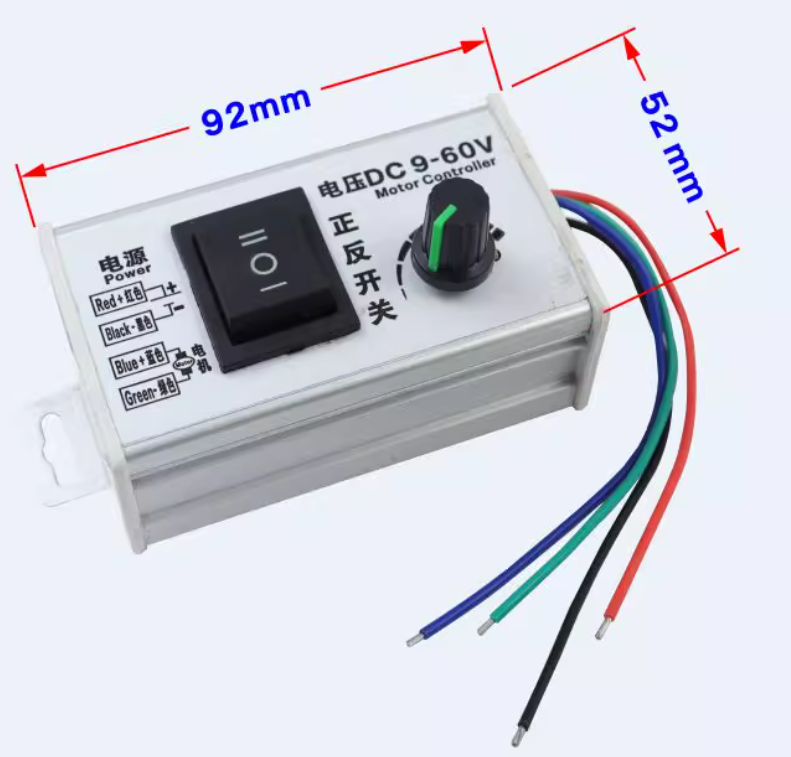

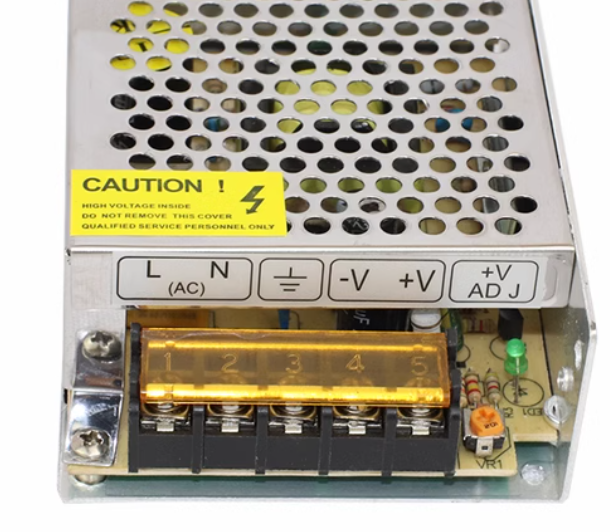

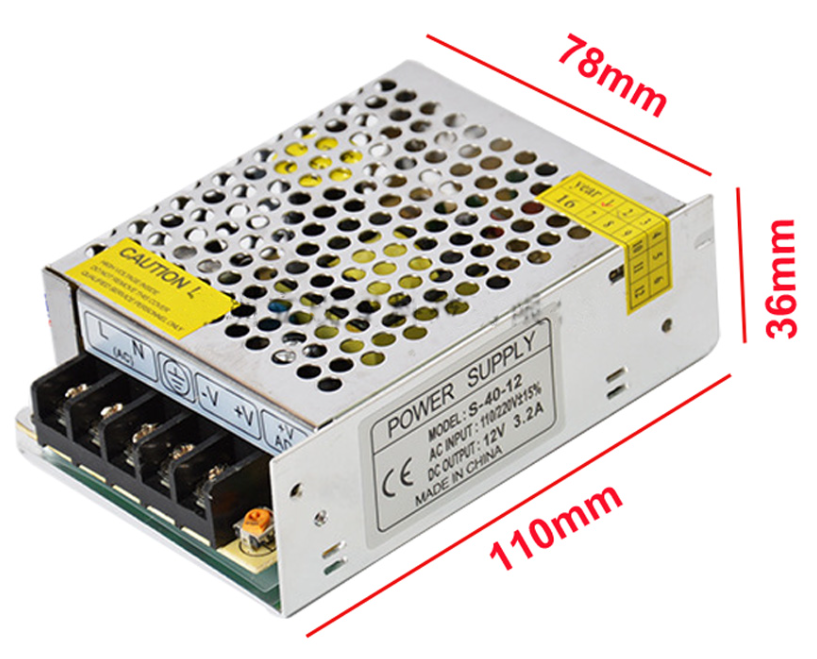

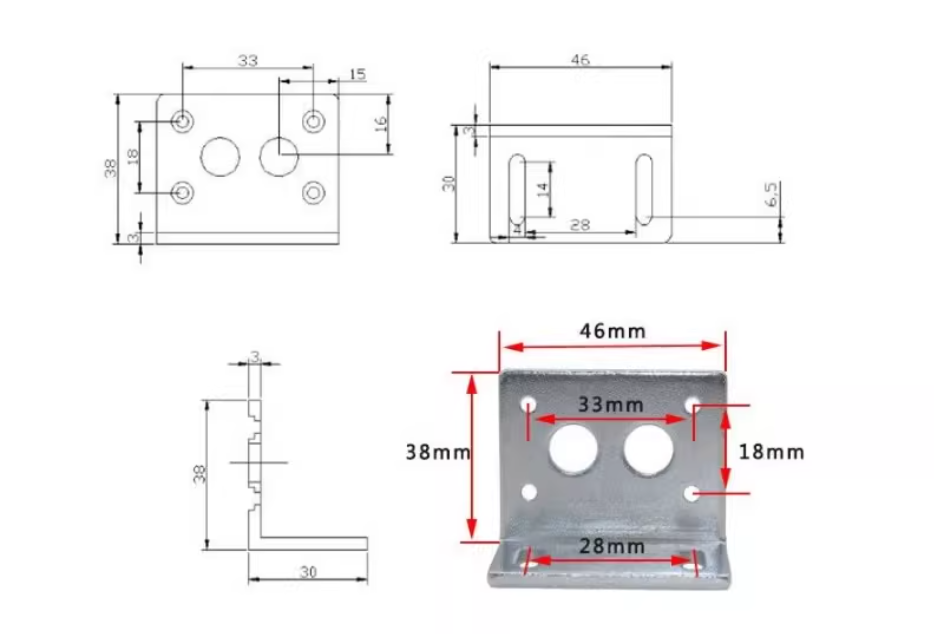

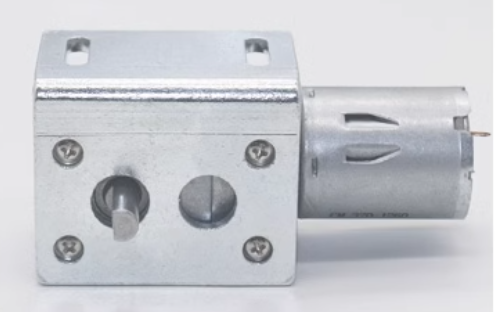

We also offer the following motor accessories, each of which has been rigorously selected and tested to ensure a perfect match for our motors, ensuring the stability of your application.
