High Torque Low rpm Motor 20-120kg.cm DC 24v Worm Gear Motor Self-locking 11-195RPM SRA5882-45 BringSmart
SRA5882-45
Quantity
High Torque Low rpm Motor 20-120kg.cm DC 24v Worm Gear Motor Self-locking 11-195RPM SRA5882-45 BringSmart
The high torque dc motor is made of high quality material:
Torque motor Shell: zinc alloy aluminum material, according to the customer's use environment to do anti-rust treatment, such as more humid environment.
Turbine, worm gear of torque motor: using high-quality pure copper, if you need to run quietly, can be upgraded to high-quality mute material.
Other gears: for high torque low rpm motor: adopting ball precision gears, all-metal gears, which can withstand higher torque than ordinary gears and reduce the risk of tooth breakage.
Application of high torque worm gear motor: coffee machine motor, coffee marker, BBQ machine, automatic Vending machines, Robot, CNC machining, etc.
Worm Gear Motors Compact Structure:
Unlike ordinary motors, the output shaft of high torque worm gear motor is 90 degrees perpendicular to the input shaft, which makes the structure more compact and saves installation space. Worm high torque dc motor is especially suitable for the equipment which has restriction on the installation position. Nowadays, the products are developing in the direction of intelligentization and smaller and smaller volume, so this Worm gear motor design is more widely used.
Worm high torque dc motor Self-locking design:
Worm high torque dc electric motor under certain conditions, the motor stops, the shaft will be locked due to the internal worm gear design, will not occur reversal or positional shift. Worm gear motor is safer and can partially replace the braking device, which is especially suitable for projects with this kind of demand, such as escalators, automatic locks, automatic doors of chicken coops, elevating platforms, cranes and so on.

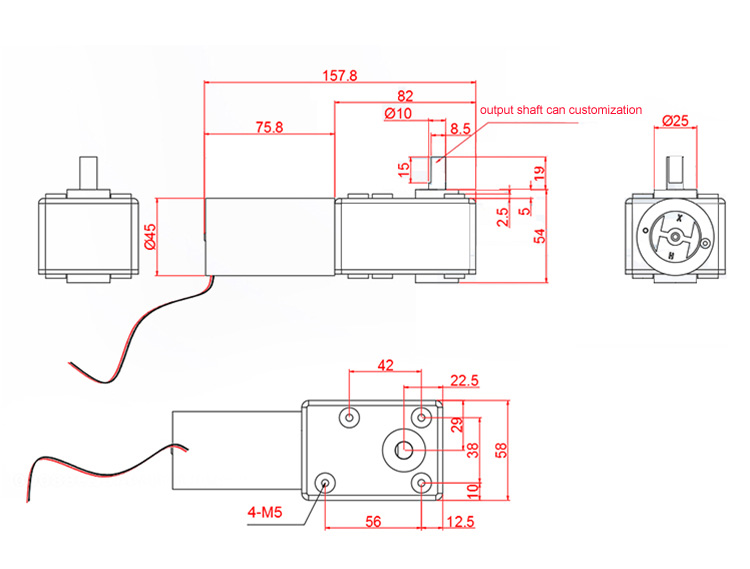

Product data
Basic information
| Sort by power source type | DC |
| Diameter of gearbox (mm） | 82*58 |
| Diameter of gearbox (inch） | 3.23*2.28 |
| Max. length（mm） | 158 |
| Max. length（inch） | 6.22 |
| Companies producing the product | Fuzhou Bringsmart Intelligent Tech. Co., Ltd |
Input
| Operating voltage (v) | 24v |
| Operating current | 0.27-12A |
Output
| No load speed | 11-195rpm |
| Load speed | 8.8-156rpm |
| Load torque | 20-120kg.com |
| Load power | 5.2-24.25w |
| Stall torque | 75-280kg.com |
This high torque motor is capable of delivering a stable load torque of 12N.M, 120kg.cm, at a load speed of 8.8rpm, and a maximum stall torque of 28N.M, 280kg.cm.
It is particularly well suited for use in equipment requiring high torque in a small installation space.
The torque and speed of high torque dc motor

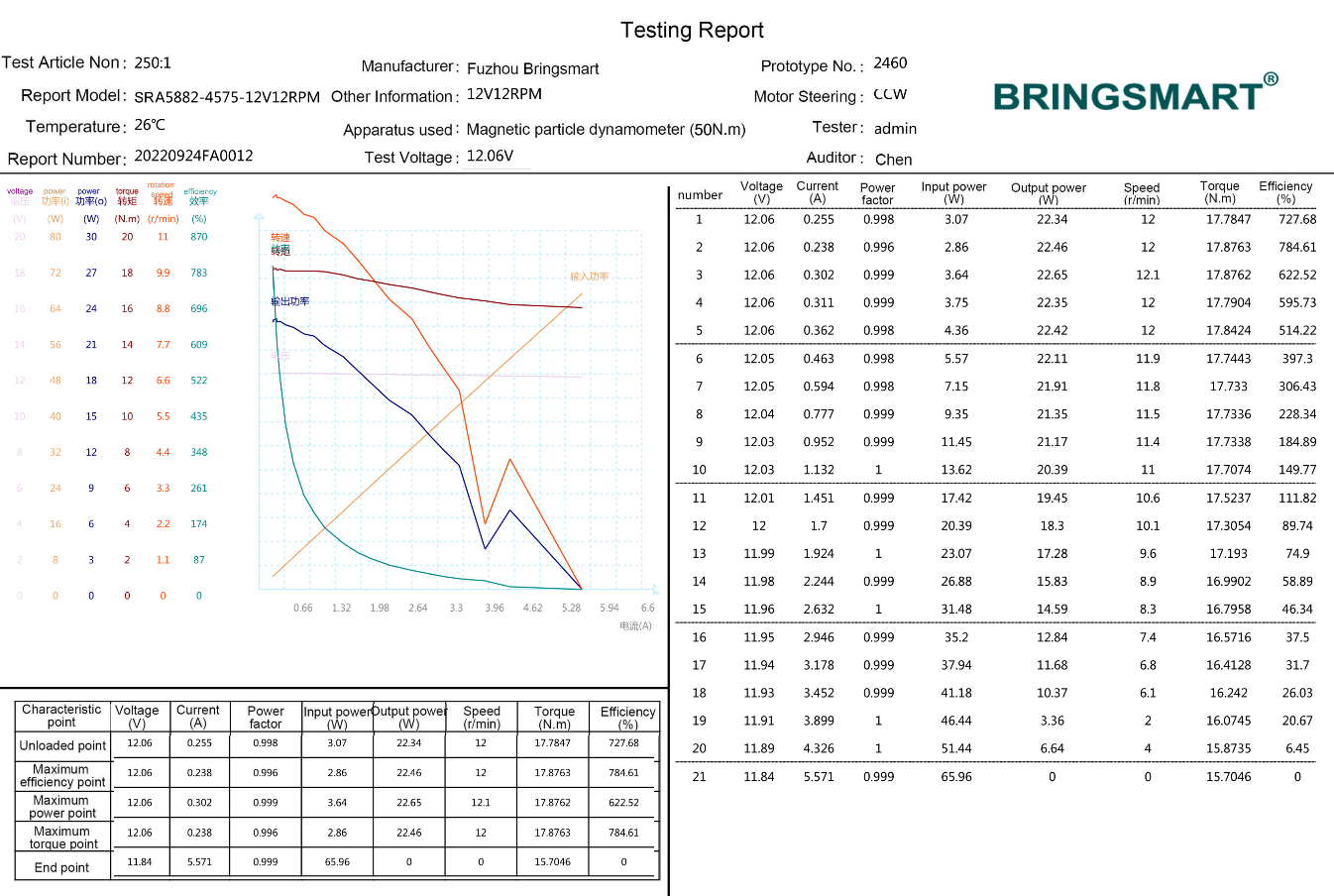

Our high torque low rpm motor is available in various speeds, the following shows current, torque and speed data for DC 12v no load speed 12rpm worm gear motors, please contact us for other speeds.
Inside the product specification table shows a standard model of high torque low rpm motor, but you may need a torque motor that is more suitable for your application, we will provide you with the following motor customization service:
1. more diverse parameters. We can change the voltage, speed, torque, current, size, protection class, electromagnetic protection, etc. according to your requirements.
2. the shape, size, material and double shaft design of the motor shaft.
3. precise control or positioning requirements, such as the addition of coding disks, etc.
4. modification of outlet wire sizes and connectors ( Such as JST, Hirose, AMP, Molex, AVX, and Kyocera etc.)
5. changes in lubricant specifications for special environmental requirements
6. change of motor housing material or treatment process, etc.
Customized Services for high torque dc motor
We realize that your application may require other accessories, and we have rigorously tested the following accessories to
ensure 100% fitment of this motor and increase the stability of your project.
1. Motor bracket:
made of 3mm high carbon steel material with electroplated surface treatment, it can fix the motor on other materials or platforms to
improve the stability of operation.
2. Power adapter:
Adopting high quality electronic parts to provide 100% power, stable voltage output, overcurrent, overload, short circuit protection.
Input voltage AC 100-240V, Output DC 12V or 24V 15A (according to the motor voltage you buy).
 |  |
3. Various types of shaft couplings
Shaft couplings can connect the output shaft of the motor to your equipment. It can be docked to the equipment with different
bore diameters. For example, synchronous wheels, metal couplings and so on.
 |  |  |
4. Various types of governors and controllers
PWM speed controllers, which can adjust the speed of the motor.
Controllers, which provide wired and wireless remote control of motor switching.
 |  |  |
Various high torque low rpm motor
If you are not satisfied with the speed or torque of this motor, then we recommend you other worm gear motors, you can click to check the following.
Only some of the models are shown, you can also contact us.

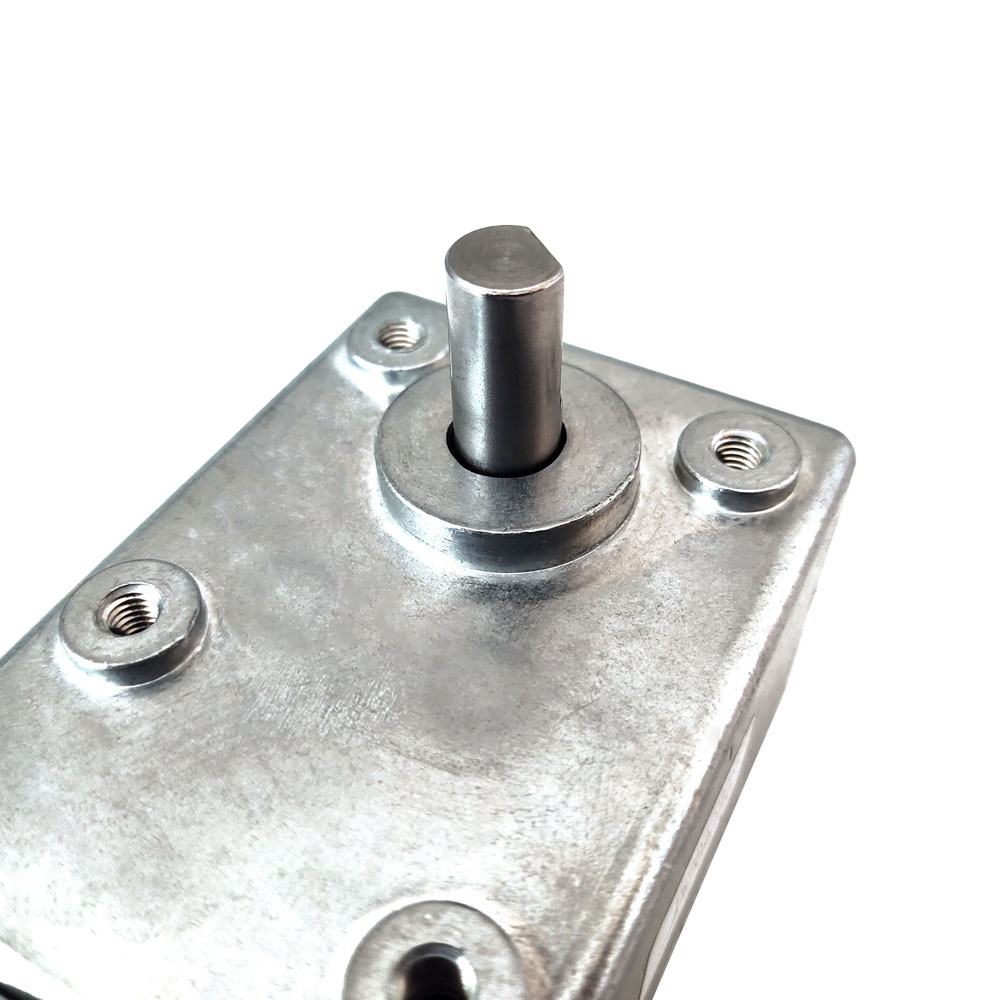

Below are the different shaft styles of this motor, we can customize the shaft length and shape according to your needs.
With encoder style: can provide precise speed and position control.
With encoder style: can provide precise speed and position control.
(click on picture to learn more)
Dual shaft motor | Long and screw shaft motor | With encoder gear motor |
 |  |  |
Below is the right angle gear motor with higher torque. (click on picture to learn more)
Max. torque: 70kgf.cm | Max. torque: 120kgf.cm | Max. torque: 400kgf.cm |
 |  |  |
BRINGSMART MOTOR DESIGN
If you are interested in this motor, then you can also find out more about what we can do for your project, which can reduce your project costs and development time.
Multiple parameters
We can do many kinds of gearmotor voltage, current, speed, load, just tell us the parameters you need.
Shaft modifications
If your project has a customized need for the gear motors shaft material (carbon steel, alloy steel, stainless steel, etc.), shaft length (long shaft, short shaft, single shaft, double shaft), shaft shape (d-cuts, keyway cuts, location holes, threaded shafts, and shaped shafts), please give us your drawings, and we use the most advanced shaft machining equipments to meet your needs.
Wires and connectors
We can assemble the length and parameters of wires and connectors of dc brush and brushless motors according to your requirements.
Customised wiresets including all manner of connectors from JST, Hirose, AMP, Molex, AVX, and Kyocera
We also offer the following motor accessories, each of which has been rigorously selected and tested to ensure a perfect match for our motors, ensuring the stability of your application.
