Vending machine motor

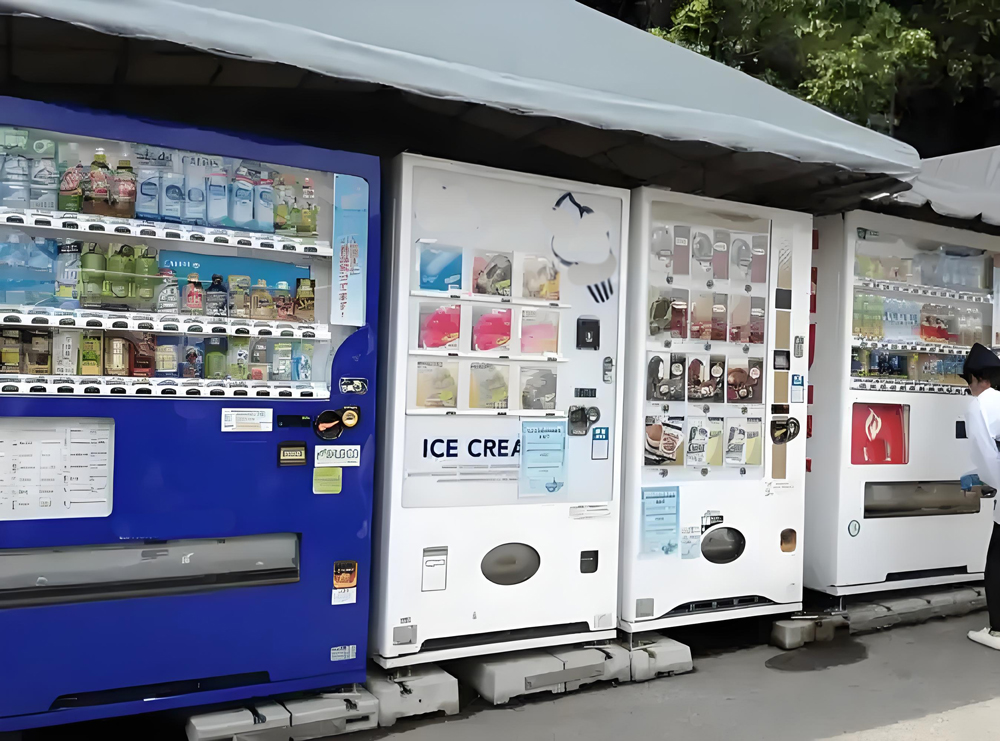

Motor for ice cream vending machine
12v dc motor high torque with protection class
Customer demand
-The customer used the mini moter in the ice cream vending machine, they contacted us during the sample testing phase, they were experiencing performance problems with the motors they were using and had other higher requirements for the dc motor with gearbox.

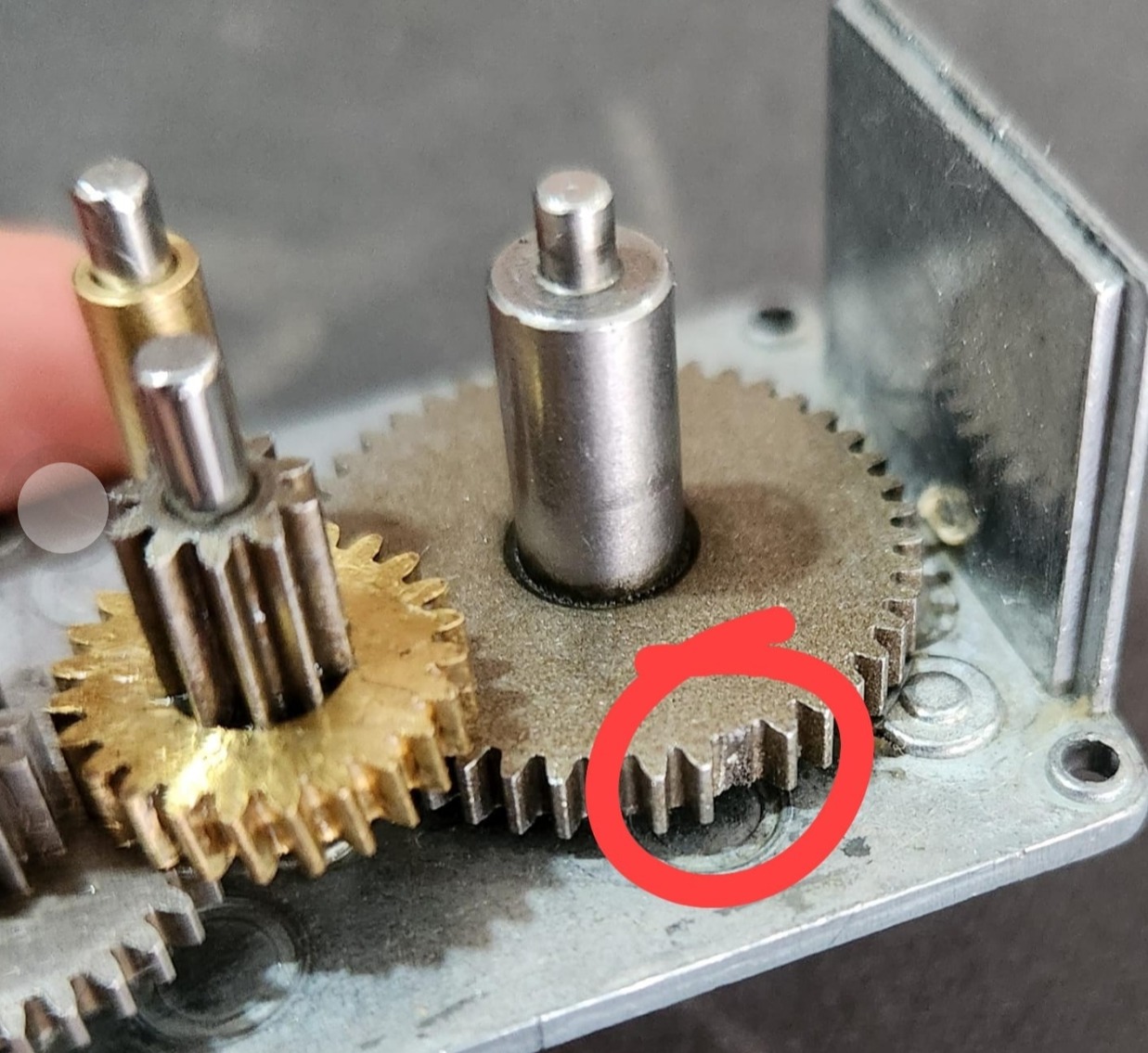

-Performance: The gearbox gears of the motor had broken teeth, but the torque of the dc gearmotor tested was sufficient to drive the equipment. They don't understand what the problem is.

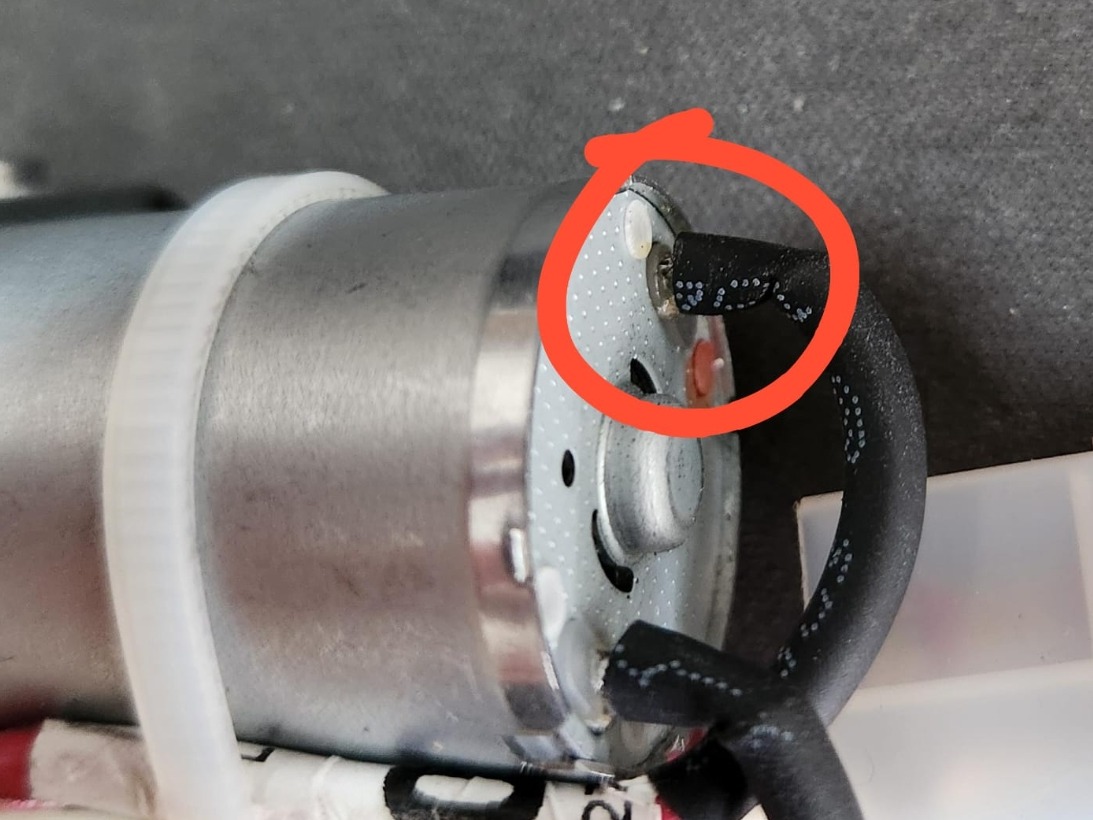

-The customer soldered the connecting wires themselves and the small gear motor was mounted in a position that caused the wiring to break easily.
-After getting the micro dc motor, the customer added the shaft couplings, connecting wires and terminals, and hope we can provide one-stop customized service.
Redesign
-We tested and analyzed the customer's geared dc motor and the usage scenario rigorously, and found that the performance parameters of the dc motor gear motor are true, but the customer used a mechanical limit switch to control the motor forward and reverse, which, combined with the inertia of the motor operation, will generate a very large load demand, far beyond the carrying capacity of 12 volt dc motor high torque used before.
-We recommended a larger size, higher torque of other styles of motors, but the customer has already done a complete set of design for the previous brushed dc motors, can only accept the size of the motor is about the same.
-For this special case, our engineering department customized a high torque dc electric motor for the customer without changing the size of the motor. Tests have shown that the enhanced motor has more than 50% more load bearing capacity than the previous dc gearmotors.
Starting from the need
In response to the customer's own welding conductor easy to break the problem, under normal circumstances, our production department welding will not appear such a problem, but after discussing with the customer, we re-designed a wiring board, using a safer, more reliable male and female wiring, to fundamentally eliminate the problem of poor contact.
Reduce future risk
One-stop customization

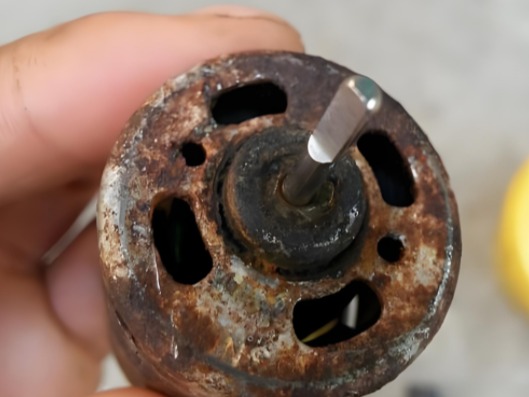

In addition, the dc geared motor is used in the ice cream vending machine, although the 12 volt high torque motor will not directly contact with water, but the internal humidity is relatively high, we offered to help the customer to customize a certain dust and moisture-proof IP rating of the 12 v electric motor, to protect the motor from corrosion of moisture, to extend the life of the motor to reduce after-sales trouble.
The customer is very satisfied with our preventive suggestion.

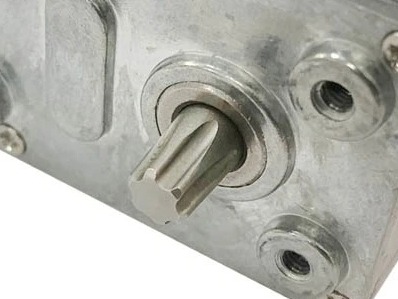

-The customer had purchased additional shaft couplings to interface with the ice cream vending machine, so we customized the motor output shaft to match the interface, which reduced the installation space, the cost of additional purchases and the assembly time.
-Finally, our production department also customized the specifications of the wiring, terminal blocks requested by the customer, and delivered the new low speed electric motor to the customer at the agreed time.
Results
-After 2 months of testing, the customer was very satisfied with our samples. After that, this customer not only used our motors for this model, but also used our other low speed high torque electric motor for other vending machines.
-The customer's team of engineers had a thorough knowledge of their design and equipment, but we had more experience with specific motor-related designs and were able to help optimize their project, reducing existing costs and potential future risks. In the end, Bringsmart helped the customer with a customized motor solution that included a redesign, preventative recommendations, and one-stop customization, which not only reduced shipment time, but also increased the customer's revenue by about 20% overall.
Which dc gear motor can be used for ice cream vending machine, vending machine business, pokemon vending machine, coffee vending machine, ice vending machine, pizza vending machine, toy vending machine >>

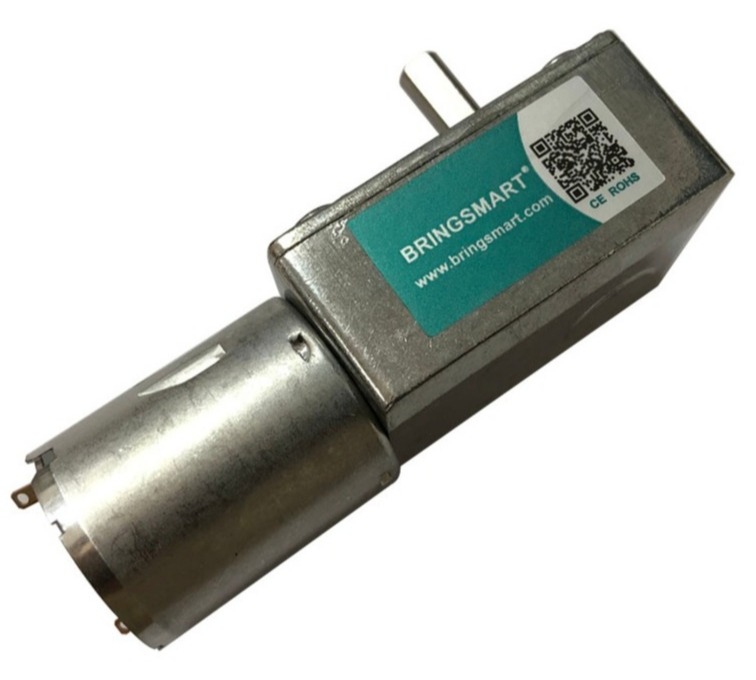

Bringsmart worm gear motor
Worm geared motors are compact, high torque and self-locking, consisting of a brushed or brushless high speed motor with a worm gearbox, which can be integrated with a Hall coding disk. Widely used in all kinds of household equipment, commercial automation equipment.
Bringsmart gear motor
Our gear motors are made of spur gear reducer, they can be made in 3-36v, speed range 1-2000rpm, motor diameter from 12mm-104mm. Please contact us.
Bringsmart planetary gear motor
Integrated planetary gearboxes from a variety of high-speed motors, with the advantage of high torque. gearbox diameters can be 16mm, 22mm, 25mm, 28mm, 32mm, 36mm, 42mm, 45mm, and torque up to 50N.M
