Planetary gear motor
Bringsmart produces planetary gearbox motor, gear box diameters of 16mm, 22mm, 25mm, 28mm, 32mm, 36mm, 42mm, 45mm, and torque up to 40.9N.M. They can be customized to include shafts, wires, connectors, voltages, speeds, torque, and more.

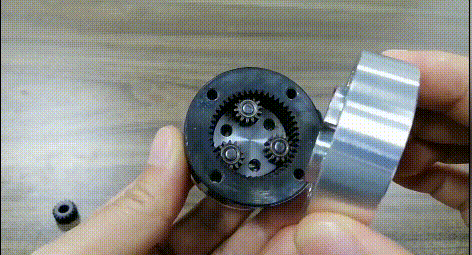

Planetary gear motor consists of a motor and a planetary gearbox. The gearbox is composed of a central sun gear, planetary gears or satellite gears on a carrier plate, and a fixed outer ring gear.
Planetary gear reducer generally has higher transmission efficiency and a larger reduction ratio than ordinary reducers. Thus, it can provide greater output torque under the same power. Meanwhile, its design is more compact with relatively smaller weight and volume, facilitating use and installation.
Planetary gearbox with motor has high efficiency, low noise and high torque, so it is widely used in fields such as robotics, automation and medical equipment.
Customization Range:
Additional voltage types.
Connecting cables (PTFE and PVC) and connectors.
Configurable shaft length and second shaft end.
Modified shaft dimensions and pinion configurations such as flats, gears, pulleys, and eccentrics.
Extended temperature range.
Vacuum compatibility (e.g., 9-5 Pa).
Modifications for high-speed and/or high-load applications.
Modifications for motors with increased electrical or mechanical tolerance requirements.
More here about planetary gear motors customizations and please contact us for further information.
Why Bringsmart Planetary Motors
High transmission efficiency: compared with ordinary gear motors, its structure is symmetrical, the internal planetary wheel is uniformly distributed, the reaction force acting on the center wheel and the rotating arm bearing is balanced, which improves the efficiency of energy utilization, making the transmission efficiency of planetary gear motors up to 95% or more, and the efficiency of some single-stage transmissions can even reach 99%.
High load capacity: multiple planetary gears meshing with the outer gear ring help to evenly distribute the external load weight, which can withstand greater torque and shock loads compared to traditional gearboxes, and is suitable for application scenarios that require large loads, such as industrial robots.
High precision: we combine the planetary distribution design of planetary gears with the continuous pursuit of a more precise manufacturing process, resulting in a higher transmission precision. The precision of single-stage planetary gear reducer can be achieved within 1 point, which can meet the requirements of equipment with high motion precision, such as robots, CNC machine tools, medical equipment and so on.
Low operating noise: multiple planetary gears are evenly distributed, so that the force between gears is more uniform, and vibration and shock can be evenly dispersed to various parts, while the circular arc structure design of the outer gear ring makes the gears close to each other, which can effectively reduce the noise.
Cost-effective: Although the manufacturing cost of planetary gear motors may be higher compared to ordinary motors, they have the advantages of high transmission efficiency, high load-bearing capacity, long service life, etc., and in the entire life cycle of the equipment, it is possible to reduce the costs brought about by frequent repairs and replacement of the equipment, and in the long run, it has a high cost-effective ratio.
