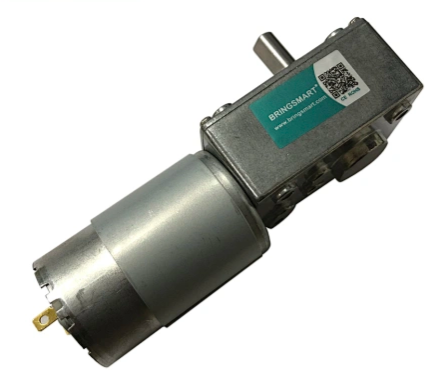

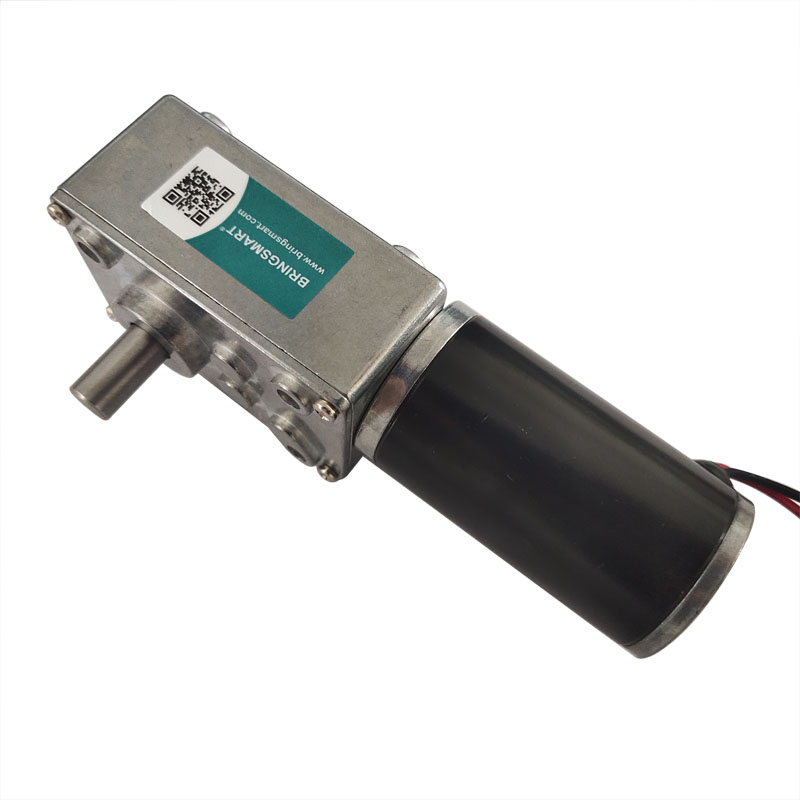

Bringsmart Right Angle Gear Motor DC 6V 24 Volt Self locking 12V Worm Gear Motor SR5840-31ZY for Robot
SR5840-31ZY SRA58SW31ZY
Quantity
Why Choose Bringsmart SR5840-31ZY Right Angle Gear Motor:
Global Compliance and Certified Quality We understand that quality and compliance are non-negotiable for the European and US markets. Our commitment to excellence is proven by:
ISO 9001 Certified Manufacturing: All Bringsmart motors are produced under strict quality control standards, ensuring consistency and reliability across every batch.
CE & RoHS Compliant: Bringsmart motors meet the necessary environmental and safety standards required for distribution and use in European Union (CE) and global markets (RoHS).
Your Long-Term Partnership Guarantee We stand behind the durability of our engineering. We offer a flexible and comprehensive 6 to 60-month after-sales warranty and support service based on your specific project requirements, minimizing your operational risks and ensuring continuous performance.
ISO 9001 Certified Manufacturing: All Bringsmart motors are produced under strict quality control standards, ensuring consistency and reliability across every batch.
CE & RoHS Compliant: Bringsmart motors meet the necessary environmental and safety standards required for distribution and use in European Union (CE) and global markets (RoHS).
Your Long-Term Partnership Guarantee We stand behind the durability of our engineering. We offer a flexible and comprehensive 6 to 60-month after-sales warranty and support service based on your specific project requirements, minimizing your operational risks and ensuring continuous performance.
Bringsmart is a professional 12v worm gear motor manufacturer with over a decade of expertise in the industry, having served more than 16,500 brand clients to date, the company counts renowned enterprises such as Apple, Haier, Lenovo, Deli, and Xiaopeng Automobile among its partners(many of whom have entered into confidentiality agreements).

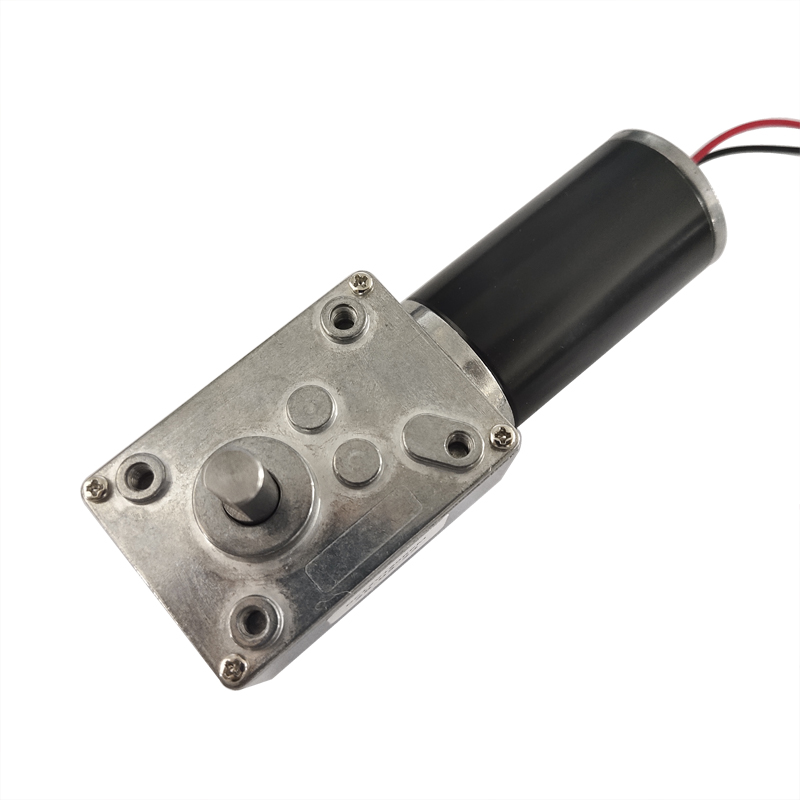

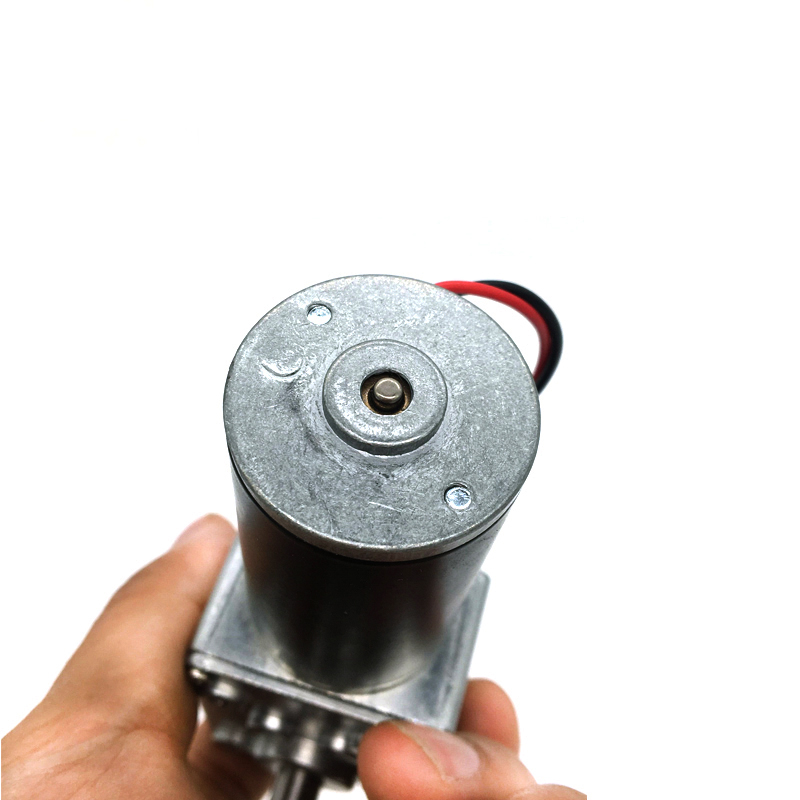

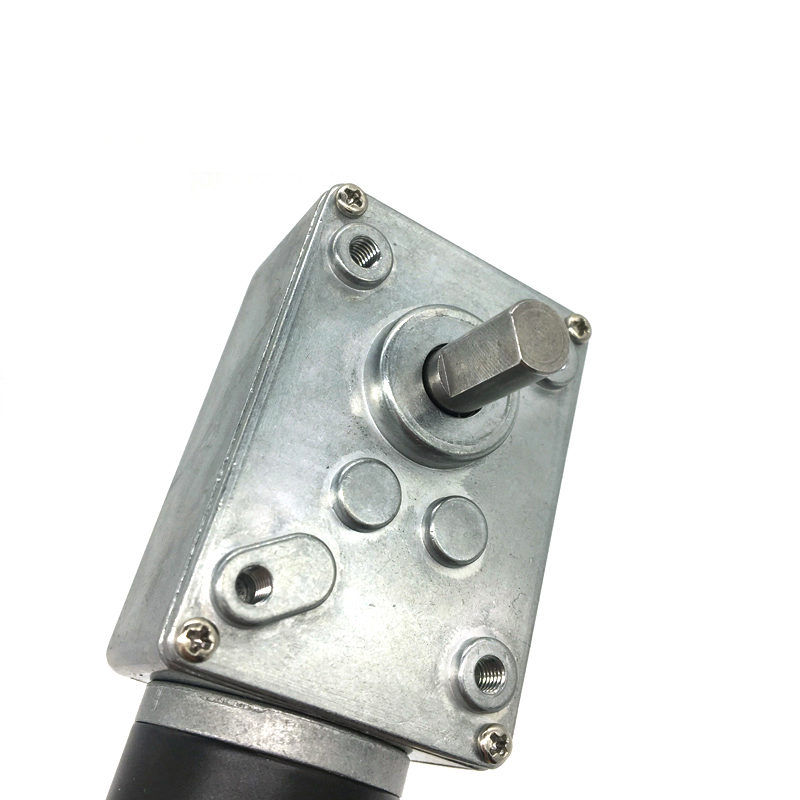

Bringsmart Right Angle Gear Motor DC 6V 24 Volt Self locking 12V Worm Gear Motor SR5840-31ZY for Robot
The Right Angle Gear Motor is made of high quality material:
Worm gear motors Shell: zinc alloy aluminum material, according to the customer's use environment to do anti-rust treatment, such as more humid environment.
Turbine, worm gear: using high-quality pure copper, if you need to run quietly, can be upgraded to high-quality mute material.
Other gears: adopting ball precision gears, all-metal gears, which can withstand higher torque than ordinary gears and reduce the risk of tooth breakage.
Right angle gear motor application for coffee machine motor, coffee marker, BBQ machine, automatic Vending machines, Robot, CNC machining, etc.

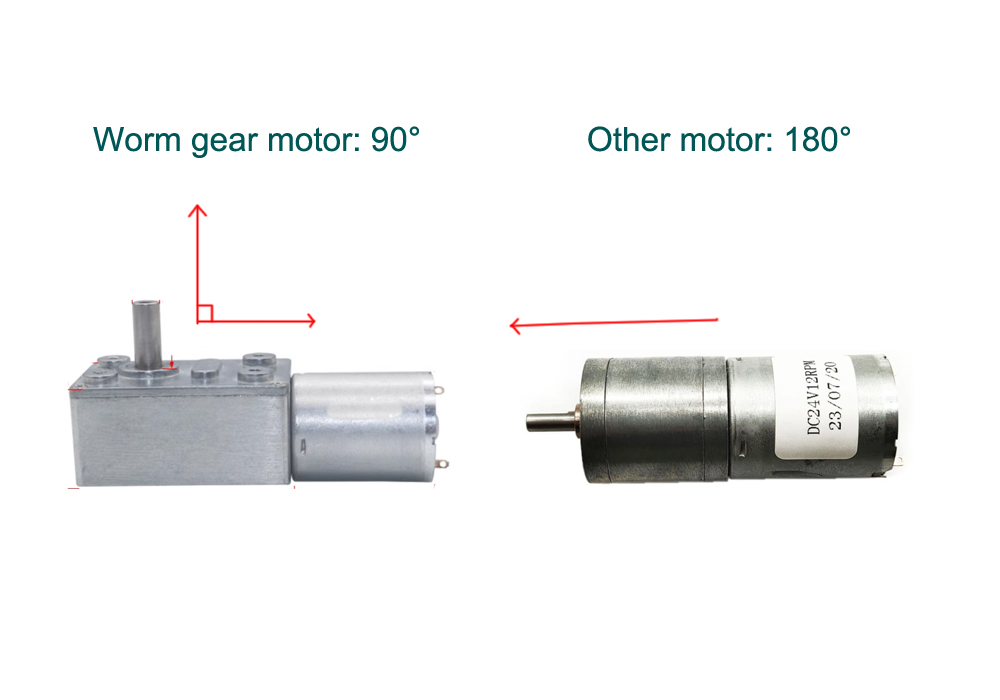

Right Angle Gear Motor Compact Structure:
Unlike ordinary motors, the output shaft of right angle gear motor is 90 degrees perpendicular to the input shaft, which makes the structure more compact and saves installation space. Worm gear motors is especially suitable for the equipment which has restriction on the installation position. Nowadays, the products are developing in the direction of intelligentization and smaller and smaller volume, so this Worm gear motor design is more widely used.
Right angle gear motor Self-locking design:
Worm gear electric motor under certain conditions, the motor stops, the shaft will be locked due to the internal worm gear design, will not occur reversal or positional shift. Worm gear electric motor is safer and can partially replace the braking device, which is especially suitable for projects with this kind of demand, such as escalators, automatic locks, automatic doors of chicken coops, elevating platforms, cranes and so on.
You can find out how the worm gear motor is self-locking by following the link below: Advantages of Bringsmart worm gear motor？
Right Angle Gear Motor Product data
Basic information
| Sort by power source type | DC |
| Diameter of gearbox (mm） | 58.1*40.1 |
| Diameter of gearbox (inch） | 2.29*1.58 |
| Max. length（mm） | 115.3 |
| Max. length（inch） | 4.54 |
| Companies producing the product | Fuzhou Bringsmart Intelligent Tech. Co., Ltd |
Input
| Operating voltage (v) | 6v 12v 24v |
| Operating current | 0.05-3.5A |
Output
| No load speed | 7-470rpm |
| Load speed | 6-330rpm |
| Load torque | 1.6-70kg.com |
| Load power | 2.5-11.7w |
| Stall torque | 9.8-70kg.com |
Parameter of SR5840-31ZY Right Angle Gear Motor
SR5840-31ZY parameter can be customized according to your requirements voltage, 24V or 12V worm gear motor, speed, torque, the following is only the standard parameters,
if you need other parameters, please contact us.
| Motor model | Rated voltage (V) | No load | Rated | Stall | weight | |||||
| V | Rotating speed +-10%(RPM) | Current (A) | Rotating speed +-10% (RPM) | Current (A) | Torque (KG.CM) | Output Power (W) | Torque (KG.CM) | Current (A) | g | |
| SR5840-31ZY-17X | 12 | 470 | 0.3 | 405 | 1 | 0.95 | 4.03 | 5.3 | 6.5 | 355 |
| SR5840-31ZY-31X | 12 | 260 | 0.3 | 225.9 | 1.129 | 1.49 | 3.52 | 10.42 | 6.5 | 355 |
| SR5840-31ZY-49X | 12 | 160 | 0.3 | 139.9 | 1.101 | 2.33 | 3.41 | 13.61 | 6.5 | 355 |
| SR5840-31ZY-100X | 12 | 80 | 0.3 | 71.9 | 1.155 | 3.94 | 2.96 | 25.59 | 6.5 | 355 |
| SR5840-31ZY-200X | 12 | 40 | 0.3 | 37.8 | 1.031 | 10.31 | 4.08 | 47.2 | 6.5 | 355 |
| SR5840-31ZY-290X | 12 | 27 | 0.3 | 22.9 | 1.117 | 13.26 | 3.17 | 65.74 | 6.5 | 355 |
| SR5840-31ZY-500X | 12 | 16 | 0.3 | 14.4 | 1.106 | 20.62 | 2.6 | No Stalling Data* | No Stalling Data* | 355 |
| SR5840-31ZY-670X | 12 | 12 | 0.3 | 10.6 | 1.088 | 30.57 | 3.09 | No Stalling Data* | No Stalling Data* | 355 |
| SR5840-31ZY-17X | 24 | 470 | 0.2 | 415.6 | 0.695 | 1.13 | 4.91 | 5.9 | 4 | 355 |
| SR5840-31ZY-31X | 24 | 260 | 0.2 | 232 | 0.59 | 1.53 | 3.71 | 12.8 | 4 | 355 |
| SR5840-31ZY-49X | 24 | 160 | 0.2 | 144.1 | 0.652 | 2.5 | 3.77 | 16.33 | 4 | 355 |
| SR5840-31ZY-100X | 24 | 80 | 0.2 | 74 | 0.643 | 4.48 | 3.47 | 29 | 4 | 355 |
| SR5840-31ZY-200X | 24 | 40 | 0.2 | 34 | 0.643 | 9.66 | 3.44 | 53.47 | 4 | 355 |
| SR5840-31ZY-290X | 24 | 27 | 0.2 | 25 | 0.697 | 13.42 | 3.52 | 65.68 | 4 | 355 |
| SR5840-31ZY-506X | 24 | 16 | 0.2 | 15 | 0.634 | 23.66 | 3.74 | No Stalling Data* | No Stalling Data* | 355 |
| SR5840-31ZY-670X | 24 | 12 | 0.2 | 11.1 | 0.612 | 26.59 | 3.09 | No Stalling Data* | No Stalling Data* | 355 |

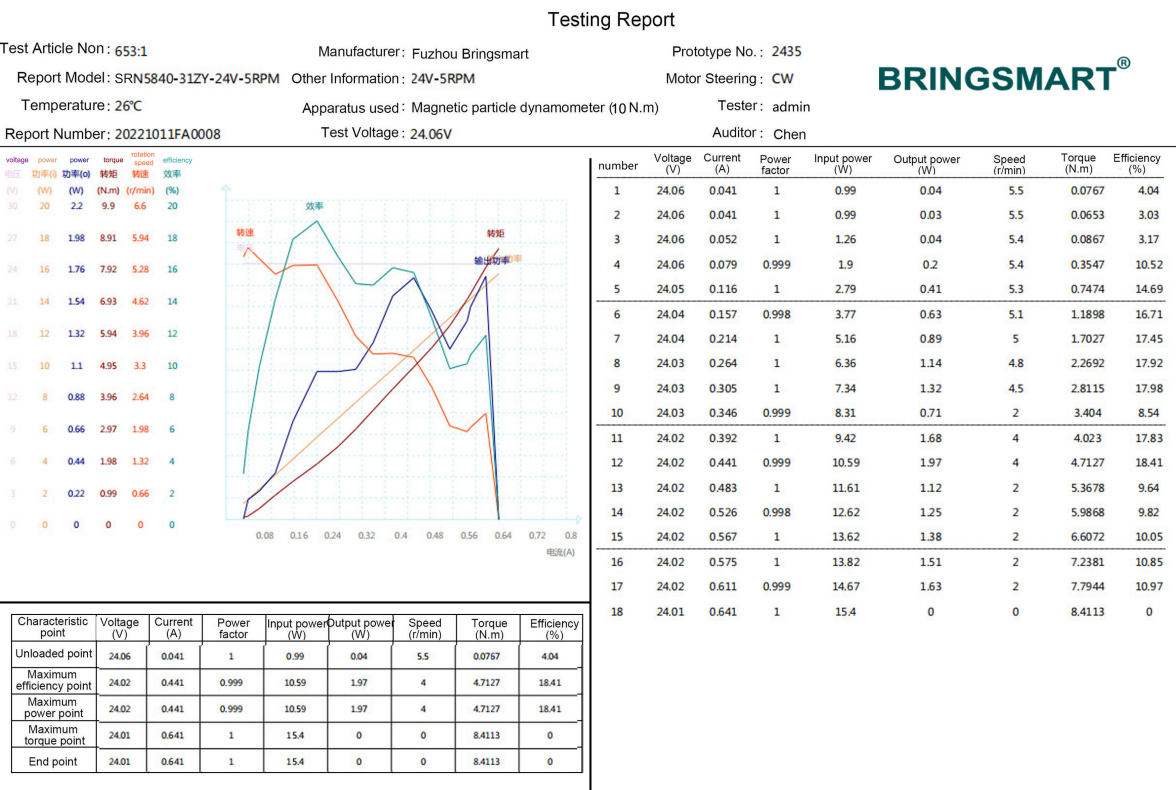

Contact us for a Test Report of SR5840-31ZY Right Angle Gear Motor
Our SR5840-31ZY is available in various speeds, the following shows current, torque and speed data for 24v DC gear motor, no load speed 5rpm.
Please contact us for other speeds or other 12v worm gear motor.
Applicable Industriesfor SR5840-31ZY Right Angle Gear Motor
Bringsmart 24v 12v worm gear motor has a wide range of applications, and you can see it in almost every industry. It can be used in coffee machine motor, coffee marker, automatic barbecue machine, chicken house automatic door,automatic Vending machines, Robot, CNC machining, etc. You can click on the picture below to understand the industry SR5840-31ZY worm gear motor is suitable for.
| Smart Home Appliances | Agriculture and Animal Husbandry | Mall Automation Industry | Robotics Industry |
 |  |  |  |
Custom Case for SR5840-31ZY Right Angle Gear Motor
You can click on the picture below to see how Bringsmart worm gear motor provides customized services for brand customers, solving the problems of high noise, insufficient torque, short life, waterproof, electromagnetic interference and high cost (the following cases involving privacy have been confidential or have been approved by customers).

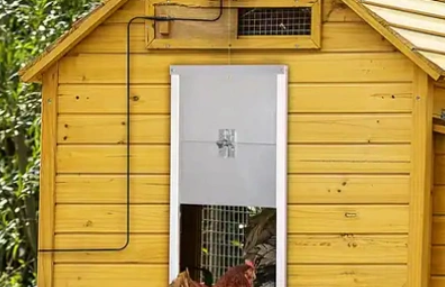

| Motor for motorized curtains | Motor for ice cream vending machine | Motor for automatic chicken coop door |
 |  |  |

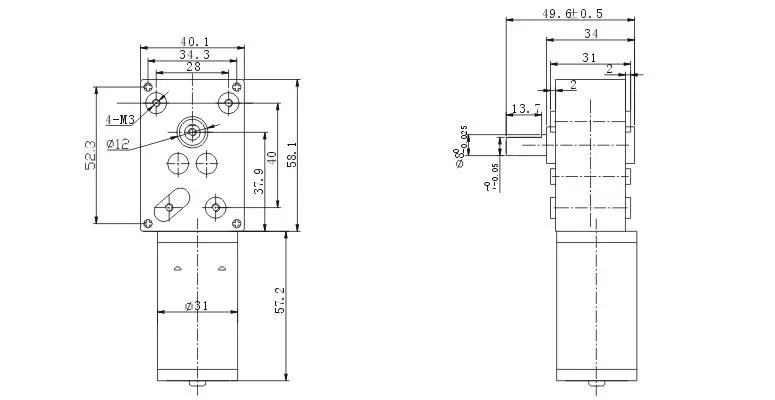

Size of SR5840-31ZY Right Angle Gear Motor-mm (Contact us to request STEP CAD files )
Mechanical Size
Inside the product specification table shows a standard model of SR5840-31zy Right Angle Gear Motor, but you may need a motor that is more suitable for your machines, we will provide you with the following motor customization service:
1. more diverse parameters. We can change the voltage, speed, torque, current, size, protection class, electromagnetic protection, etc. according to your requirements.
2. the shape, size, material and double shaft design of the motor shaft.
3. precise control or positioning requirements, such as the addition of coding disks, etc.
4. modification of outlet wire sizes and connectors ( Such as JST, Hirose, AMP, Molex, AVX, and Kyocera etc.)
5. changes in lubricant specifications for special environmental requirements
6. change of motor housing material or treatment process, etc.
Customized Services for 24v 12v worm gear motor
We realize that your application may require other accessories, and we have rigorously tested the following accessories to
ensure 100% fitment of this motor and increase the stability of your project.

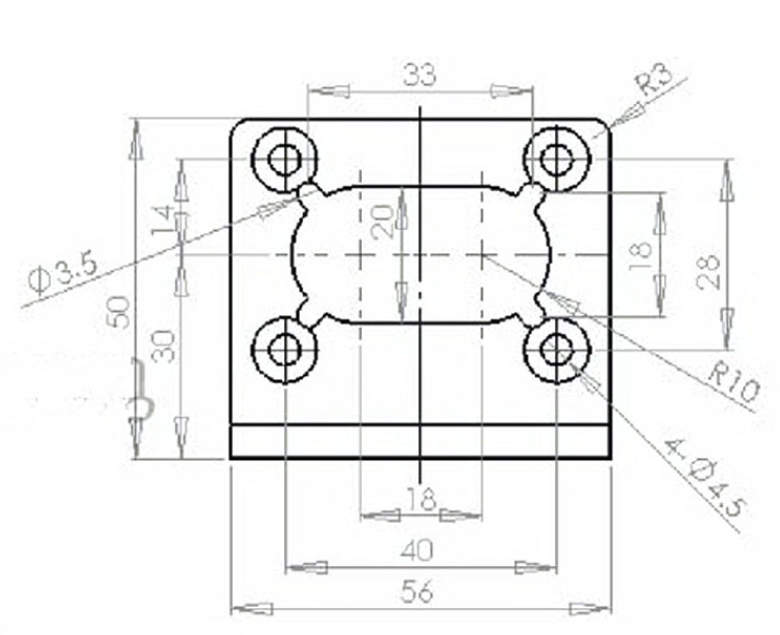

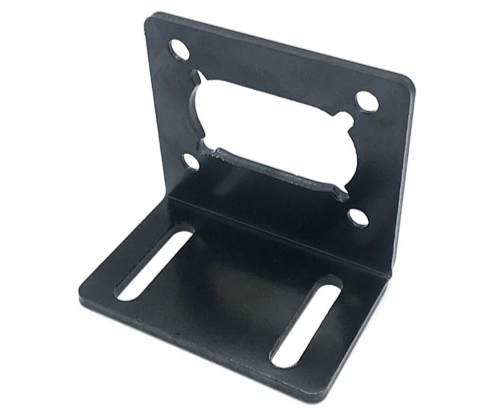

1. Bracket for Right Angle Gear Motor:
made of 3mm high carbon steel material with electroplated surface treatment, it can fix the motor on other materials or platforms to
improve the stability of operation.
 |  |

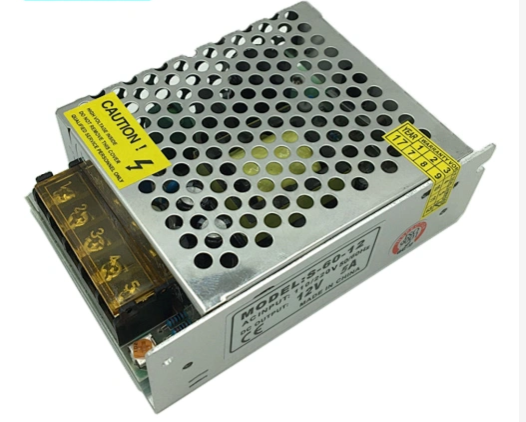

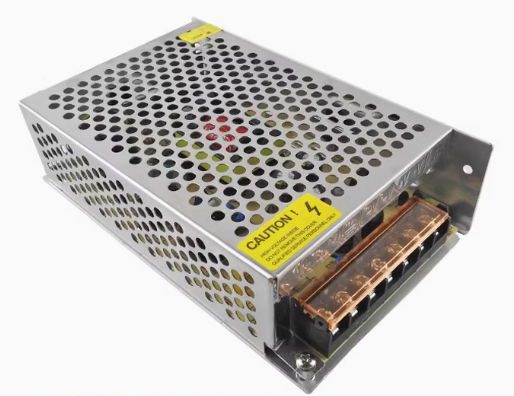

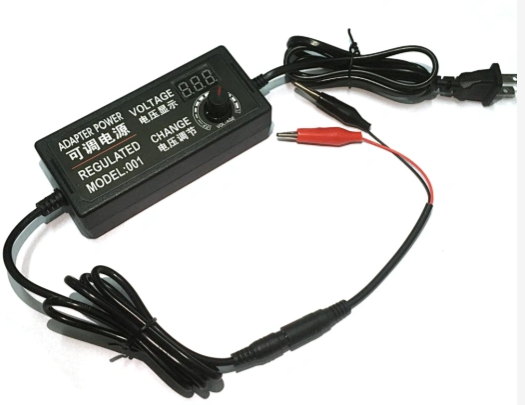

2. Power adapter for Right Angle Gear Motor:
Adopting high quality electronic parts to provide 100% power, stable voltage output, overcurrent, overload, short circuit protection.
Input voltage AC 100-240V, Output DC 12V or 24V 5A.
(If you buy our 12v worm gear motor, it is recommended to use a 12v transformer.
When the supply voltage exceeds the voltage of the motor, it may burn the motor. When it is less than the voltage of the motor,
the motor performance will become less. ).
 |  |

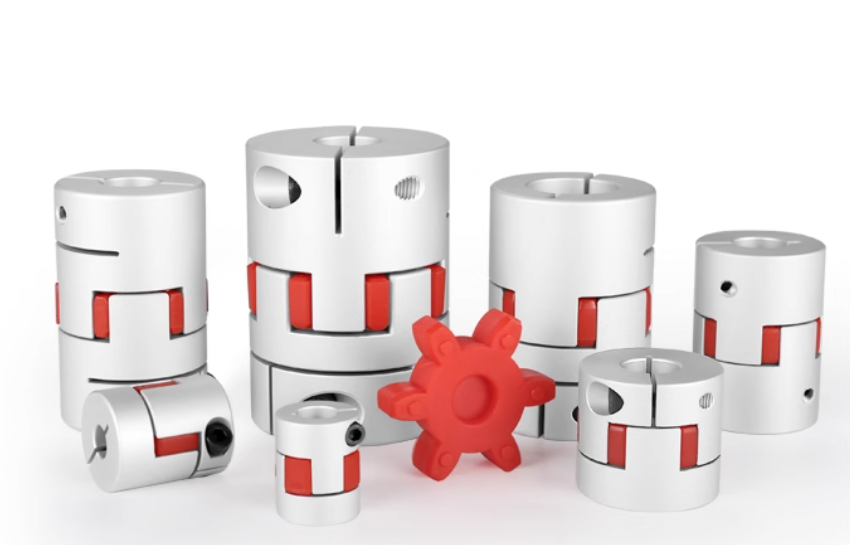

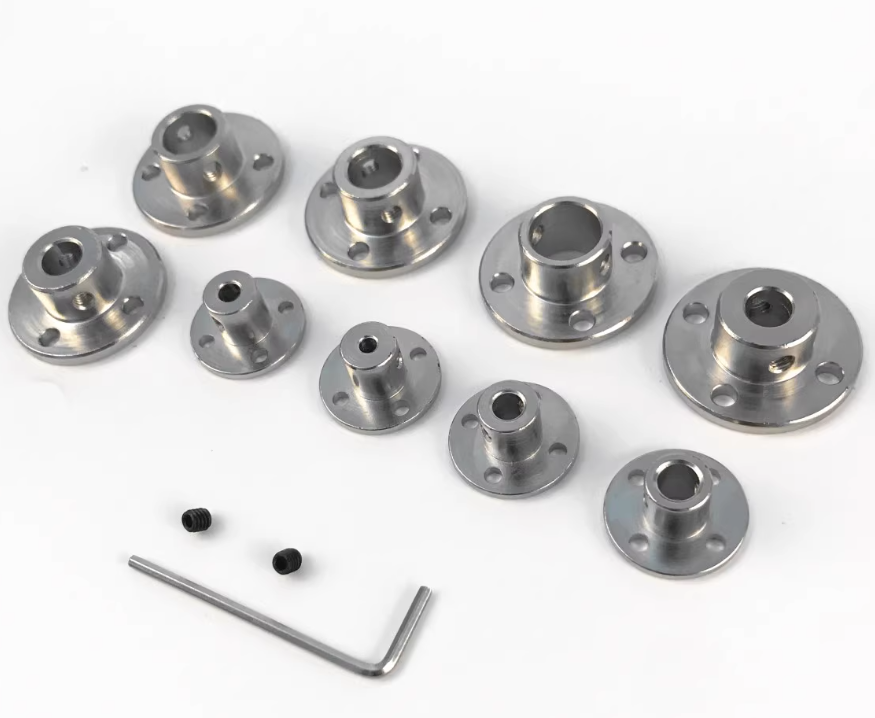

3. Various types of shaft couplings for Right Angle Gear Motor
Shaft couplings can connect the output shaft of the motor to your equipment. It can be docked to the equipment with different
bore diameters. For example, synchronous wheels, metal couplings and so on.
 |  |  |

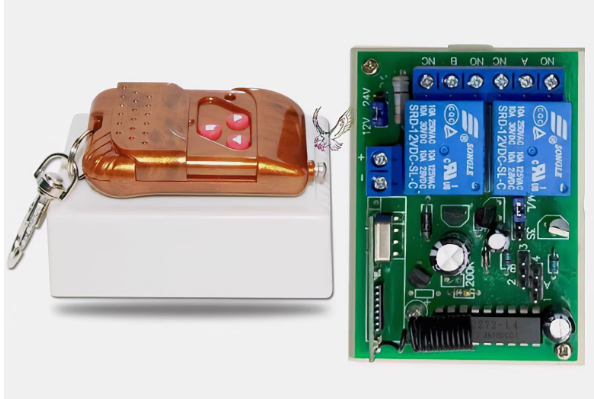

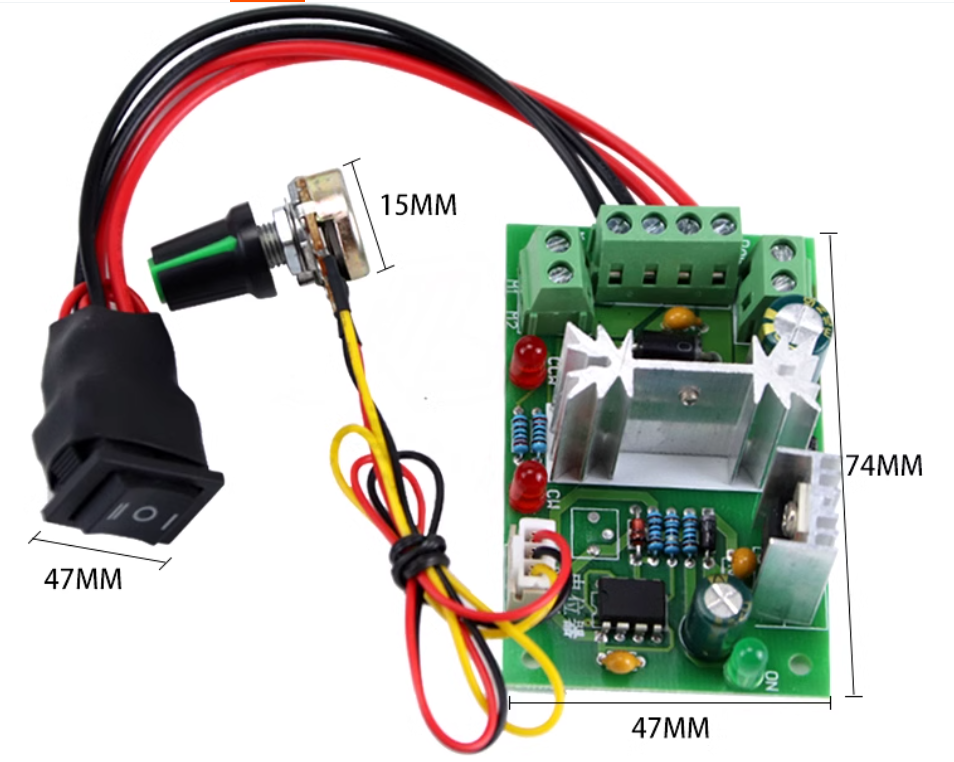

4. Various types of speed controllers and remote controllers for Right Angle Gear Motor
PWM speed controllers, which can adjust the speed of the motor.
Controllers, which provide wired and wireless remote control of motor switching.
 |  |  |
Various high torque motor for 12v worm gear motor
If you are not satisfied with the speed or torque of this motor, then we recommend you other worm gear motors, you can click to check the following.
Only some of the models are shown, you can also contact us.

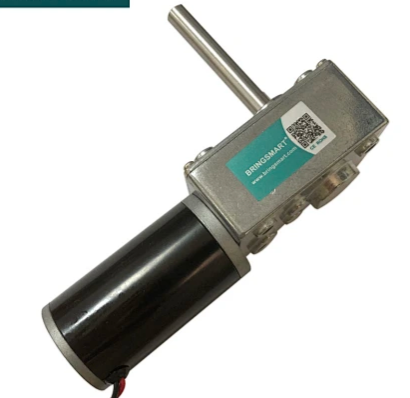

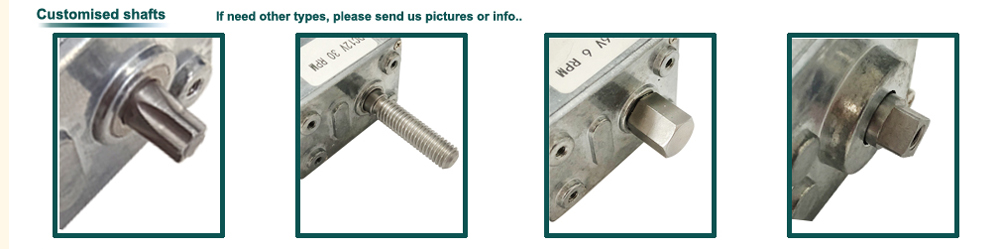

Below are the different shaft styles of this 24v or 12v worm gear motor, we can customize the shaft length and shape according to your needs.

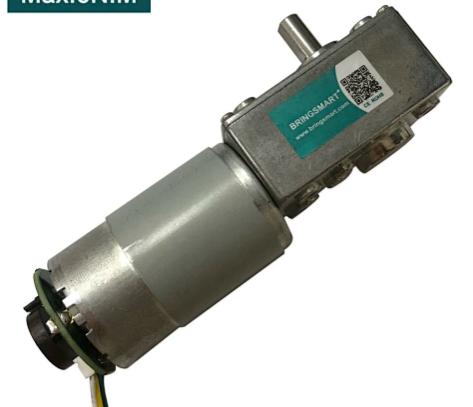

With encoder style: can provide precise speed and position control.
With encoder style: can provide precise speed and position control.
(click on picture to learn more)

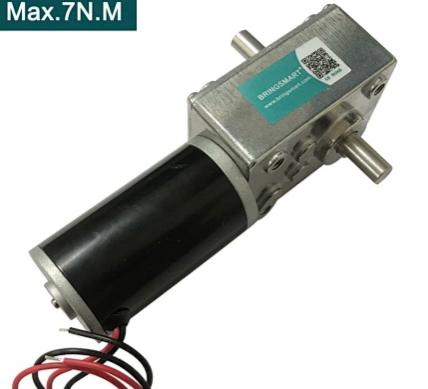

Dual shaft motor | Long and screw shaft motor | With encoder gear motor |
 |  |  |
Below is the right angle gear motor with higher torque. (click on picture to learn more)

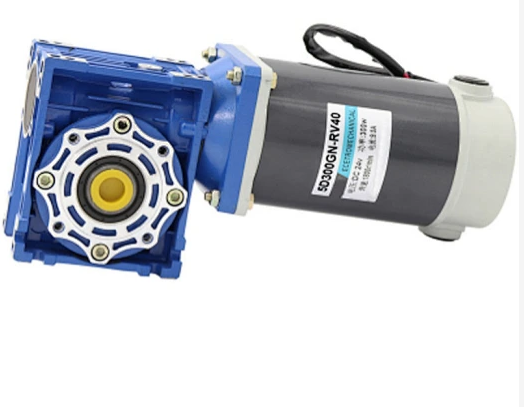

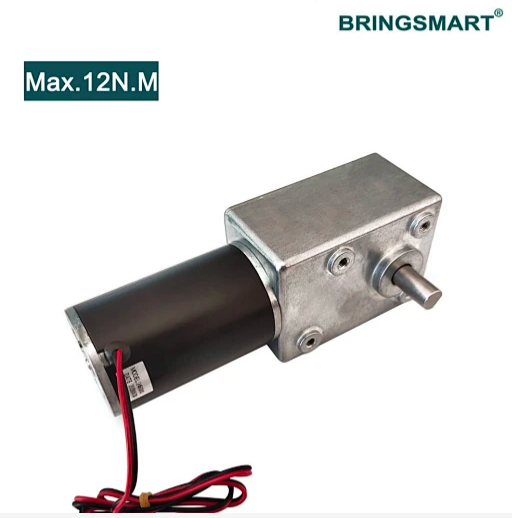

Max. torque: 70kgf.cm | Max. torque: 120kgf.cm | Max. torque: 400kgf.cm |
 |  |  |
BRINGSMART MOTOR DESIGN
If you are interested in this motor, then you can also find out more about what we can do for your project, which can reduce your project costs and development time.
Multiple parameters
We can do many kinds of gearmotor voltage, current, speed, load, just tell us the parameters you need.
Shaft modifications
If your project has a customized need for the gear motors shaft material (carbon steel, alloy steel, stainless steel, etc.), shaft length (long shaft, short shaft, single shaft, double shaft), shaft shape (d-cuts, keyway cuts, location holes, threaded shafts, and shaped shafts), please give us your drawings, and we use the most advanced shaft machining equipments to meet your needs.

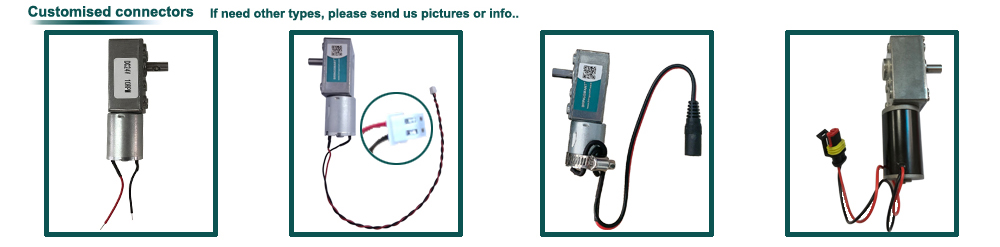

Wires and connectors
We can assemble the length and parameters of wires and connectors of dc brush and brushless motors according to your requirements.
Customised wiresets including all manner of connectors from JST, Hirose, AMP, Molex, AVX, and Kyocera
We also offer the following motor accessories, each of which has been rigorously selected and tested to ensure a perfect match for our motors, ensuring the stability of your application.
