Bringsmart CCM6N PWM Controller 6V 12V 24 VOLT 30V DC Motor Speed Controller

CCM6N

Quantity

Contact Now

add to cart

PWM Controller 6V 12V 24V 30V DC Motor Speed Controller 6A Pulse Width Modulator Positive Inversion

DC Speed controller

1. Can adjust the low speed, low noise, can control the motor is reversing, support for PLC control, external 5V signal can be adjusted speed, this product with positive and negative indicator and power indicator

2. Input Voltage: DC 6V-30V

3. Current: Rated current 6A, maximum through current 10A, Short circuit in less than 30s

4. Power: MAX 200W

5. Frequency: 16khz

6. PWM pulse width speed range: 0% - 100%

7. Size: 74 47 28mm, four positioning pitch plate edge 5mm, Positioning hole diameter 3.6mm

8. You can control an external 0-5V external voltage that can direct control of the speed of the motor, if you need a very small current 5V power supply, We can provide 100mA 5V power supply

9. All chips are imported original

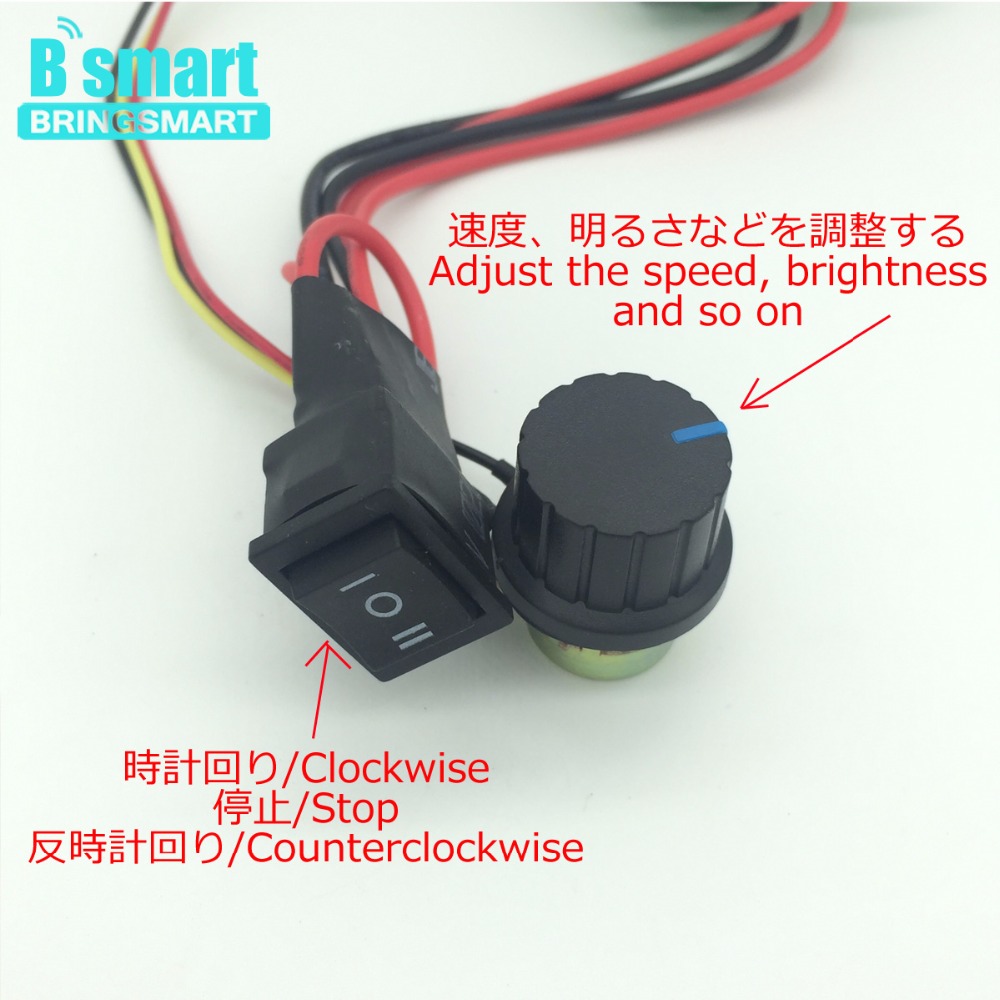

10. Control motor: Adjust Speed, CW/CCW And Stop

BRINGSMART MOTOR DESIGN

If you are interested in this motor, then you can also find out more about what we can do for your project, which can reduce your project costs and development time.

Multiple parameters

We can do many kinds of gearmotor voltage, current, speed, load, just tell us the parameters you need.

Shaft modifications

If your project has a customized need for the gear motors shaft material (carbon steel, alloy steel, stainless steel, etc.), shaft length (long shaft, short shaft, single shaft, double shaft), shaft shape (d-cuts, keyway cuts, location holes, threaded shafts, and shaped shafts), please give us your drawings, and we use the most advanced shaft machining equipments to meet your needs.

Wires and connectors

We can assemble the length and parameters of wires and connectors of dc brush and brushless motors according to your requirements.

Customised wiresets including all manner of connectors from JST, Hirose, AMP, Molex, AVX, and Kyocera

We also offer the following motor accessories, each of which has been rigorously selected and tested to ensure a perfect match for our motors, ensuring the stability of your application.
