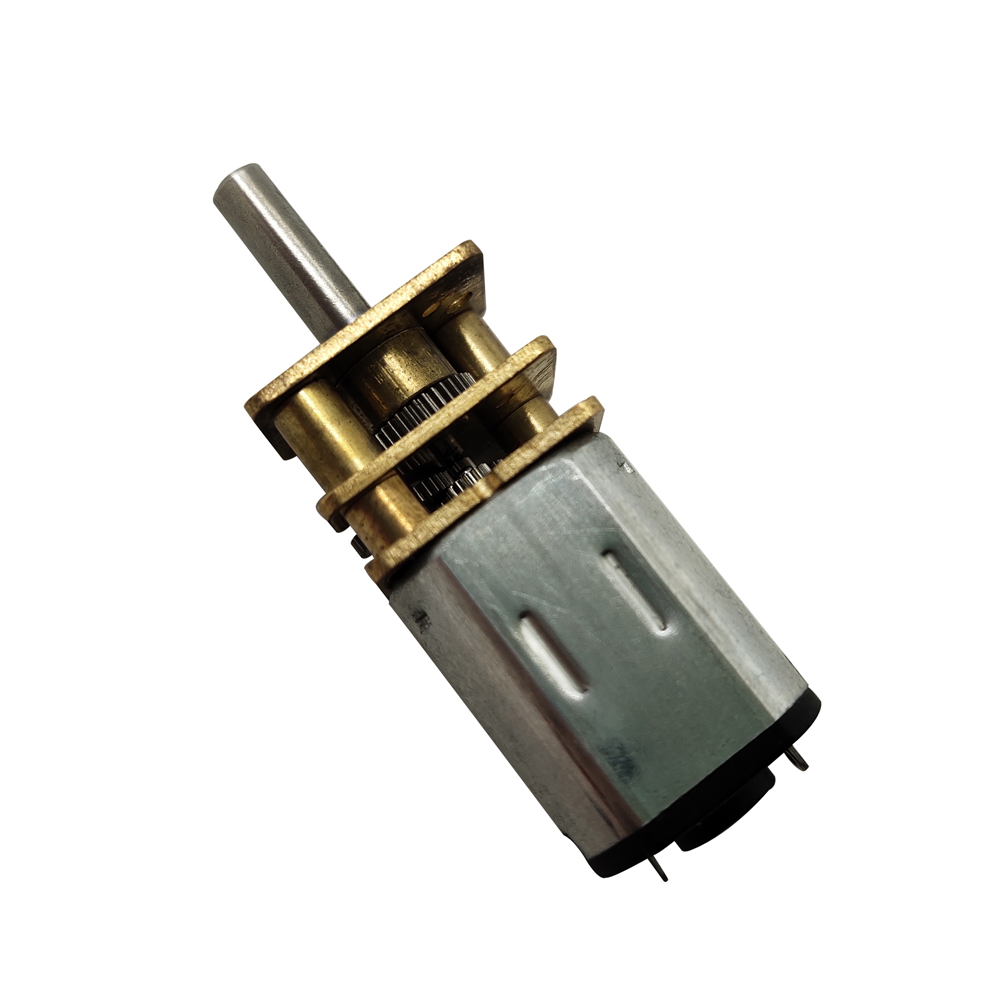

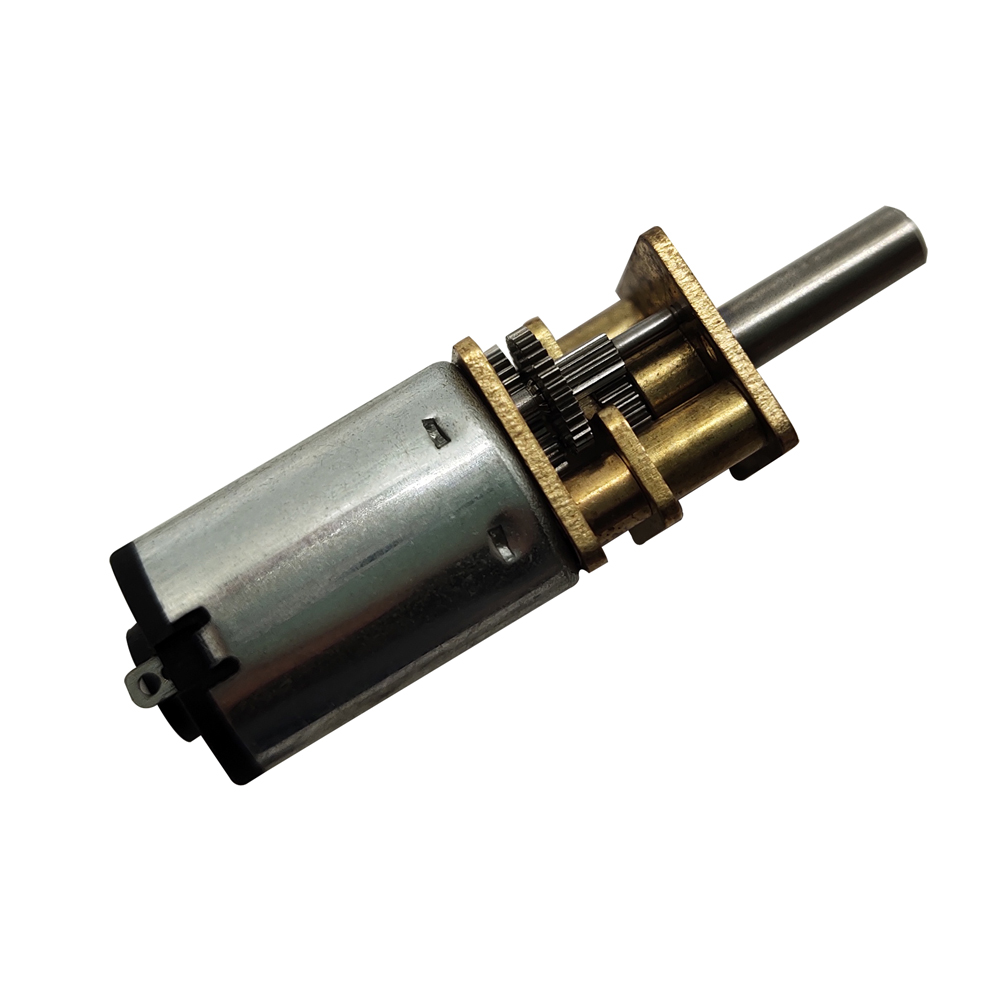

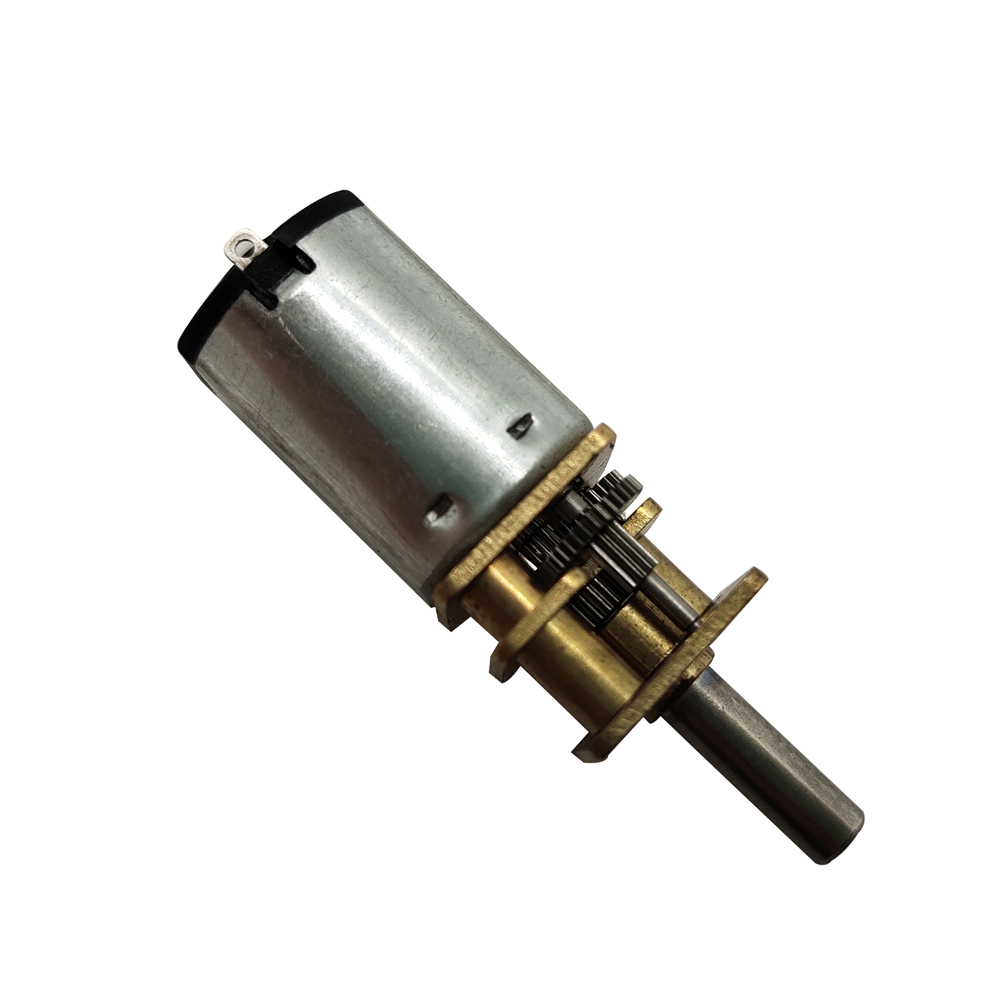

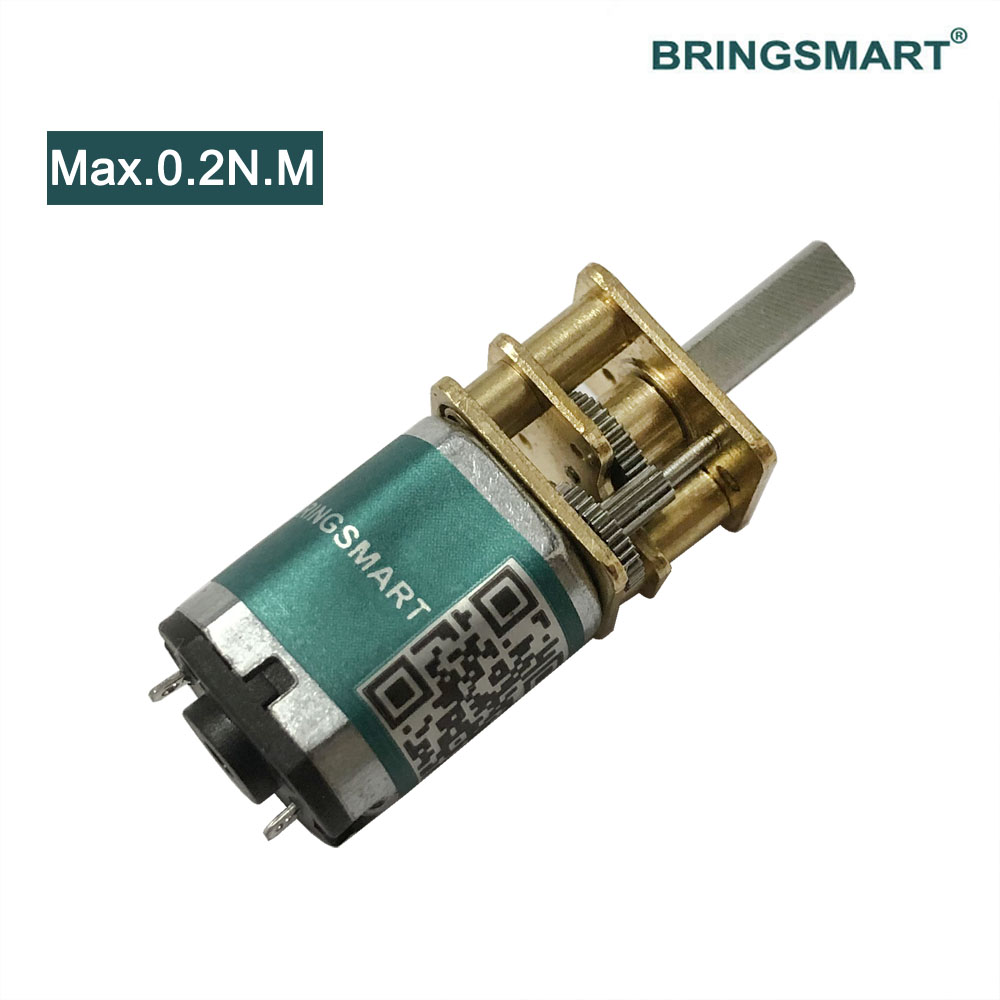

Bringsmart N20 Gear Motor Low Noise Micro 12V Motor DC n20 Motors 100RPM

N20

Quantity

Contact Now

add to cart

What is N20 Motors?

The N20 Motor is a very popular Micro DC Motor, especially in electronics manufacturing, among DIY enthusiasts, and in precision drive applications.

It often refers to the N20 Gear Motor because it is typically used in conjunction with a miniature gearbox.

Key Features and Advantages of N20 Motors

1. Structure and Dimensions

Micro Compact:"N20"is its model name, representing its extremely small size. N20 motors typically have dimensions of around 12*25mm. It typically features a slender rectangular or circular body, making it suitable for installation in products with highly limited space.
Gearbox: Most N20 motors integrate a miniature metal gearbox. This allows the motor to drastically reduce the rotational speed and simultaneously multiply the torque (rotational force) while maintaining a small size.

2. Performance Range of n20 motors

Voltage: Common rated voltages include 3V,6V,12V.
Speed and Torque: Due to various gear reduction ratios, its output speed (RPM) and torque (e.g., Kg.cmB) range widely. This versatility allows it to meet demands for either low-speed high-torque or medium-speed moderate-torque applications.

3. Typical Applications of n20 motors

Due to its small size and high efficiency, N20 motors are widely used in the following areas:

Smart Devices: Smart door locks, electronic locks, small automatic switches.
Medical Equipment: Micro peristaltic pumps, precision drug delivery systems.
Robotics: Micro-robots, linear actuators
Precision Transmission: Camera gimbals, miniature drive mechanisms in drones or model aircraft.

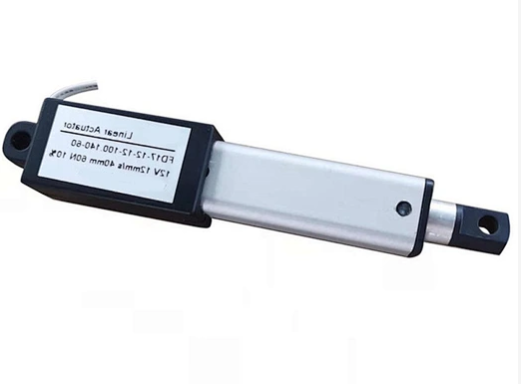

N20 Motors for Smart Door Locks	N20 Gear Motor for Micro Gimbals	N20 Motors for Linear Actuators	N20 Gear Motor for DIY Robotics

Bringsmart N20 Gear Motors Variations for Diverse Applications

To perfectly suit the requirements of our customers' various devices and usage scenarios, Bringsmart has developed a comprehensive range of N20 motors.

These variations ensure that you can find the ideal motor for precision integration into your specific project:

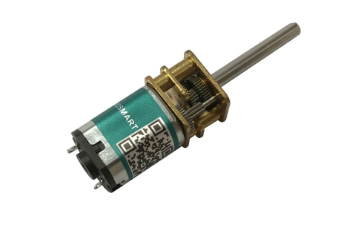

Extended Shaft N20 Gear Motor: For applications requiring the drive to pass through a thick enclosure or mechanism.

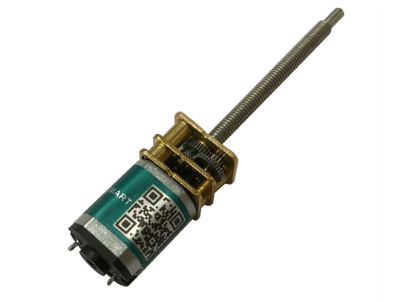

Threaded Shaft N20 Motors: Often used for linear motion systems such as micro-actuators or electric push rods.

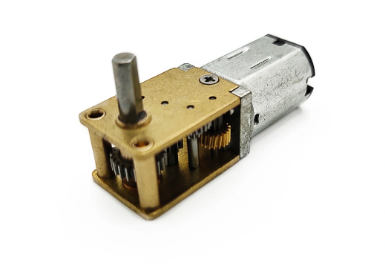

N20 Gear Motor Right Angle: Features a right-angle gearbox output, ideal for space-constrained installations where a 90-degree turn is needed.

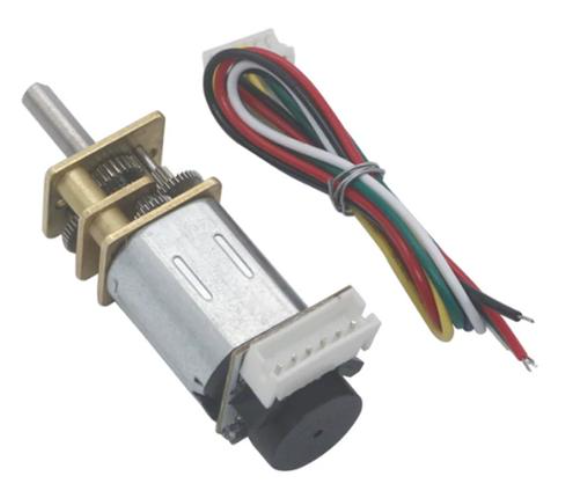

N20 Motors with Encoder Disk (Encoder Motor): Provides feedback for highly accurate speed regulation and position control, crucial for robotics and automation.

You can click on the images below to learn more about the specifications and applications of each N20 motor type.

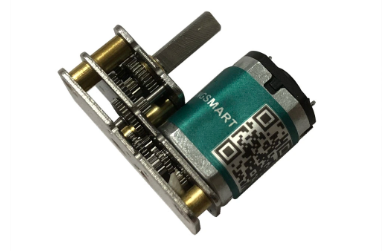

Extended Shaft N20 Gear Motor	Threaded Shaft N20 Motors	N20 Gear Motor Right Angle	1024 Gear box N20 Motors	N20 Gear Motor with Encoder Disk

Higher torque motors than N20 Motors

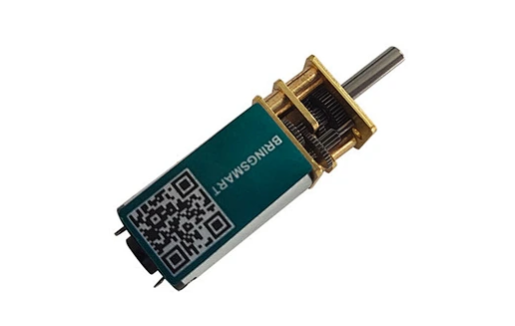

If you require higher torque, we recommend the N30 motor to you. We also offer mounting brackets for the N20 motors for your selection. Please click on the images below to learn more, and if you have any other requirements, please contact us.

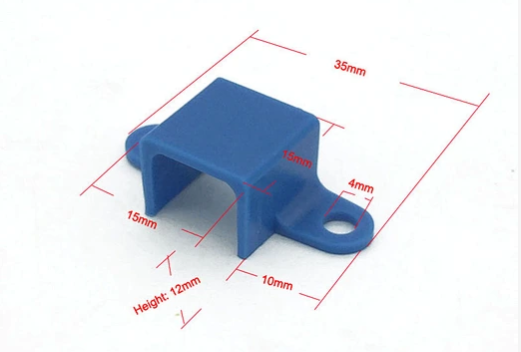

Mounting Bracket for N20 Gear Motors	N30 Gear Motor

Custom Case for N20 Motors

You can click on the picture below to see how Bringsmart worm gear motor provides customized services for brand customers, solving the problems of high noise, insufficient torque, short life, waterproof, electromagnetic interference and high cost (the following cases involving privacy have been confidential or have been approved by customers).

Motor for motorized curtains	Motor for ice cream vending machine	Motor for automatic chicken coop door

Why Choose Bringsmart N20 Motors:

Global Compliance and Certified Quality We understand that quality and compliance are non-negotiable for the European and US markets. Our commitment to excellence is proven by:
ISO 9001 Certified Manufacturing: All Bringsmart motors are produced under strict quality control standards, ensuring consistency and reliability across every batch.
CE & RoHS Compliant: Bringsmart motors meet the necessary environmental and safety standards required for distribution and use in European Union (CE) and global markets (RoHS).
Your Long-Term Partnership Guarantee We stand behind the durability of our engineering. We offer a flexible and comprehensive 6 to 60-month after-sales warranty and support service based on your specific project requirements, minimizing your operational risks and ensuring continuous performance.

Bringsmart is a professional motor manufacturer with over a decade of expertise in the industry, having served more than 16,500 brand clients to date, the company counts renowned enterprises such as Apple, Haier, Lenovo, Deli, and Xiaopeng Automobile among its partners(many of whom have entered into confidentiality agreements).

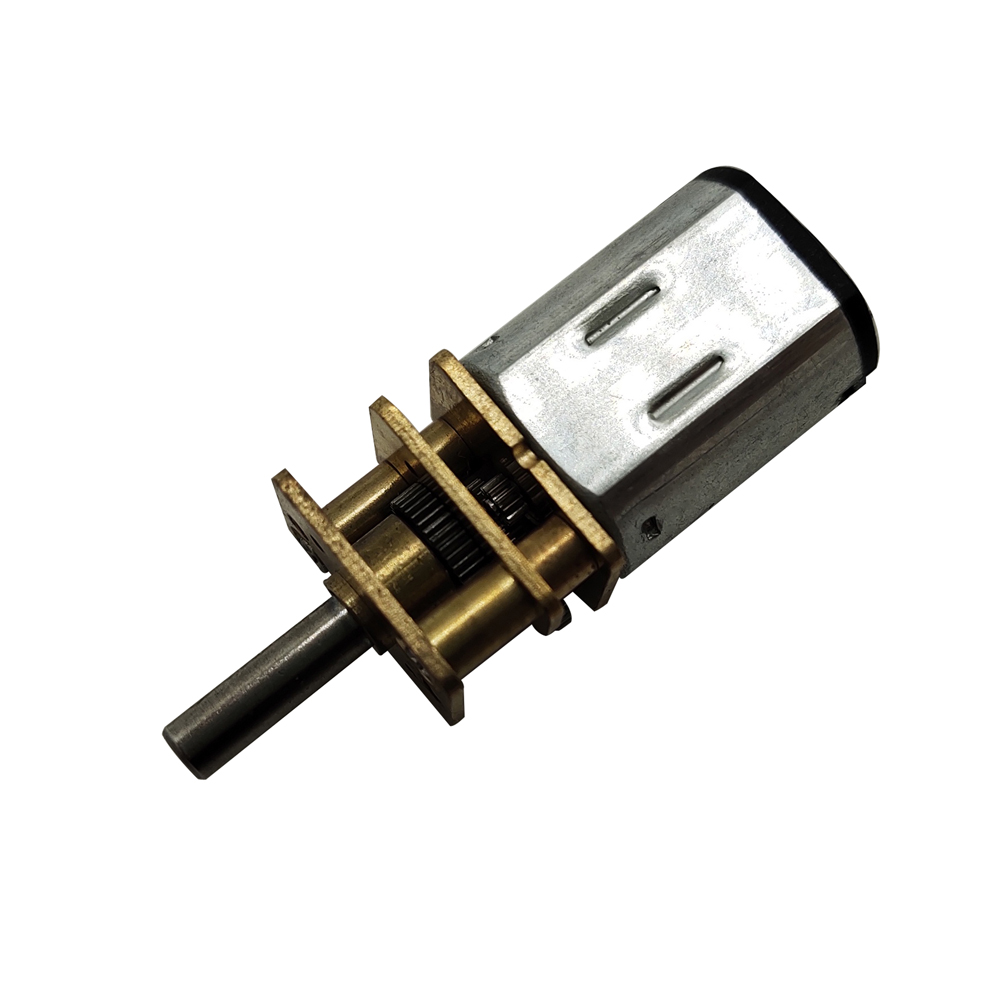

Bringsmart N20 Gear Motor Low Noise Micro 12V Motor DC n20 Motors

N20 Gear Motor Data

Basic information

Sort by power source type	DC
Diameter of gearbox (mm）	9*12.1
Diameter of gearbox (inch）	0.35*0.47
Max. length（mm）	34
Max. length（inch）	1.34
Companies producing the product	Fuzhou Bringsmart Intelligent Tech. Co., Ltd

Input

Operating voltage (v)	6v
Operating current	0.03-300A

Output

No load speed	15-3000rpm
Load speed	11.5-2308rpm
Load torque	22-3000kg.com
Load power	w
Stall torque	0.037-2.2kg.com

Parameter of N20 Gear Motor

N20 motors parameter can be customized according to your requirements voltage, 3V,6V,12V, speed, torque, the following is only the standard parameters,

if you need other parameters, please contact us.

Voltage (V)	Reduction Ratio	High speed motor speed(rpm)	No Load Speed (RPM)	No Load Current (mA)	Load Current (mA)	Load Speed (RPM)	Stall Current (mA)	Stall Torque (KG.CM)	Rated Torque (KG.CM)
3	10	15000	1500	50	100	1200	200	0.13	0.015
3	10	10000	1000	50	100	700	150	0.3	0.03
3	10	7500	750	30	60	550	130	0.27	0.022
3	10	6000	600	25	50	450	90	0.19	0.01
3	10	5000	500	20	35	400	100	0.15	0.02
3	30	12000	400	40	60	300	270	0.9	0.1
3	30	10500	350	40	55	280	250	0.75	0.09
3	30	9000	300	30	50	250	280	0.7	0.08
3	30	7500	250	25	40	200	220	0.45	0.06
3	50	10000	200	40	50	160	250	1	0.17
3	50	7500	150	30	45	130	300	0.7	0.12
3	100	12500	125	50	70	90	270	2	0.2
3	100	10000	100	30	50	80	250	1.2	0.18
3	100	7500	75	20	35	60	170	0.9	0.12
3	100	6000	60	20	40	50	200	1	0.16
3	100	5000	50	10	30	40	100	0.8	0.15
3	298	12000	40	20	45	32	170	1.8	0.7
3	298	10500	35	20	45	30	160	1.7	0.6
3	298	9000	30	30	50	25	200	2	0.6
3	298	7500	25	20	40	22	150	1.82	0.5
3	298	6000	20	20	40	17	135	1.7	0.45
3	298	4500	15	10	40	10	100	1.6	0.4
6	10	30000	3000	70	210	2500	600	0.4	0.03
6	10	25000	2500	60	200	2000	500	0.5	0.035
6	10	20000	2000	60	170	1500	500	0.6	0.04
6	10	15000	1500	50	120	1200	300	0.45	0.022
6	10	12000	1200	40	100	900	300	0.4	0.02
6	10	10000	1000	30	50	850	200	0.3	0.04
6	30	24000	800	60	90	600	550	1.6	0.17
6	30	21000	700	50	80	550	550	1.3	0.14
6	30	18000	600	50	80	500	550	1.4	0.15
6	30	15000	500	40	70	400	350	1.1	0.15
6	50	20000	400	60	100	350	500	1.6	0.4
6	50	15000	300	50	95	250	400	1.3	0.35
6	100	25000	250	60	90	200	550	4	0.5
6	100	20000	200	50	90	160	500	3.5	0.4
6	100	15000	150	50	80	120	400	2.5	0.35
6	100	12000	120	25	40	90	250	2.2	0.32
6	100	10000	100	20	40	80	200	2	0.3
6	298	24000	80	60	100	70	600	12	2
6	298	21000	70	60	90	60	500	11	1.7
6	298	18000	60	50	80	50	400	10	1.5
6	298	15000	50	40	70	40	300	8	1.3
6	298	12000	40	30	60	30	350	7.5	1.2
6	298	9000	30	20	40	25	200	7	1.2

Voltage (V)	Reduction Ratio	High speed motor speed(rpm)	No Load Speed (RPM)	No Load Current (mA)	Load Current (mA)	Load Speed (RPM)	Start voltage(v)	Stall Current (mA)	Stall Torque (KG.CM)	Rated Torque (KG.CM)
12	10	60000	6000	100	450	4500	9	1200	0.6	0.08
12	10	40000	4000	80	370	3000	9	1000	1.2	0.16
12	10	30000	3000	60	170	2200	9	700	0.5	0.1
12	10	24000	2400	50	120	1800	9	500	0.45	0.07
12	10	20000	2000	50	70	1500	9	500	0.6	0.1
12	30	48000	1600	120	300	1300	9	1500	3.5	0.5
12	30	42000	1400	100	270	1100	9	1000	2.8	0.34
12	30	36000	1200	60	90	1000	9	1100	2.8	0.3
12	30	30000	1000	50	80	800	9	700	2.2	0.2
12	50	40000	800	80	150	700	9	1000	3.2	0.8
12	50	30000	600	70	130	500	9	800	2.7	0.6
12	100	50000	500	90	160	400	9	1100	7	1
12	100	40000	400	80	120	340	9	1000	6	0.8
12	100	30000	300	50	170	240	9	600	5	0.7
12	100	24000	240	40	150	200	9	500	4	0.6
12	298	20000	200	40	60	160	9	400	4	0.6
12	298	47800	160	80	120	130	9	1000	16	2.5
12	298	41700	140	80	110	120	9	1000	15.5	2.4
12	298	35700	120	60	100	100	9	800	15	2.2
12	298	29800	100	50	80	80	9	600	13	2
12	298	23700	80	40	60	70	9	500	12	1.8
12	298	18000	60	40	60	40	9	400	11	1.8

Please contact us to request the test report for the N20 motors

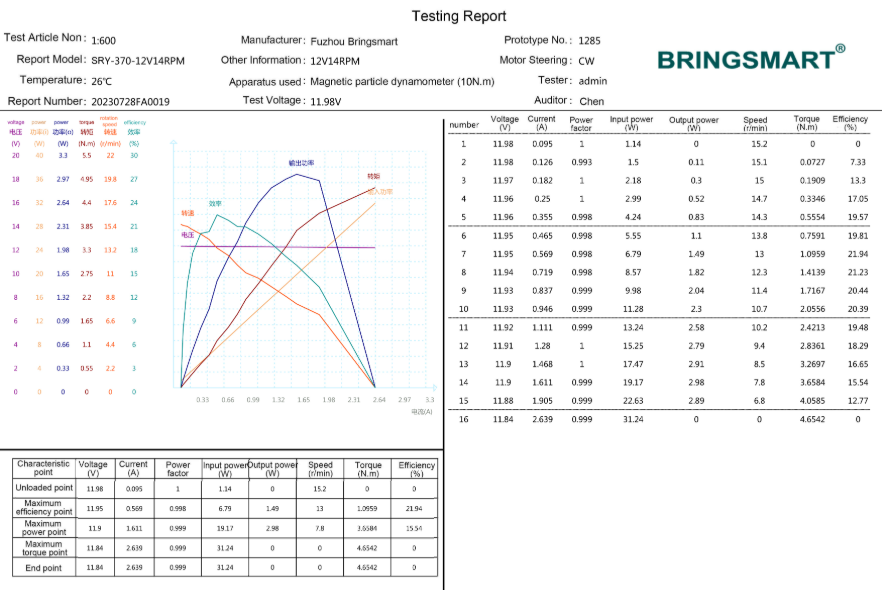

Below are the test reports for our other motors. We can customize the required voltage, speed, and torque according to your equipment. Please contact us to request the test report.

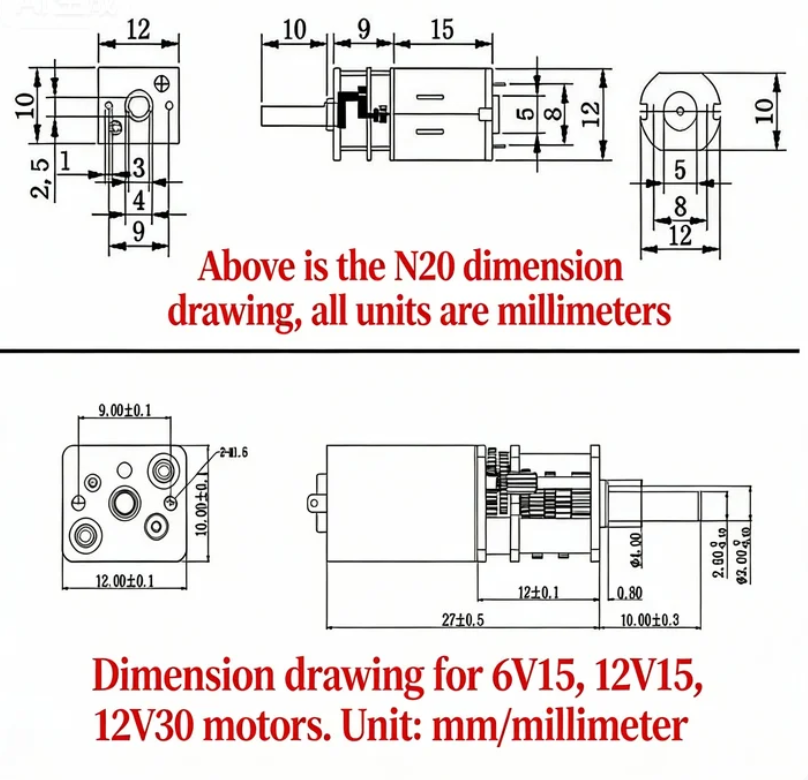

Size of N20 Gear Motor-mm (Contact us to request STEP CAD files )

BRINGSMART MOTOR DESIGN

If you are interested in this motor, then you can also find out more about what we can do for your project, which can reduce your project costs and development time.

Multiple parameters

We can do many kinds of gearmotor voltage, current, speed, load, just tell us the parameters you need.

Shaft modifications

If your project has a customized need for the gear motors shaft material (carbon steel, alloy steel, stainless steel, etc.), shaft length (long shaft, short shaft, single shaft, double shaft), shaft shape (d-cuts, keyway cuts, location holes, threaded shafts, and shaped shafts), please give us your drawings, and we use the most advanced shaft machining equipments to meet your needs.

Wires and connectors

We can assemble the length and parameters of wires and connectors of dc brush and brushless motors according to your requirements.

Customised wiresets including all manner of connectors from JST, Hirose, AMP, Molex, AVX, and Kyocera

We also offer the following motor accessories, each of which has been rigorously selected and tested to ensure a perfect match for our motors, ensuring the stability of your application.
