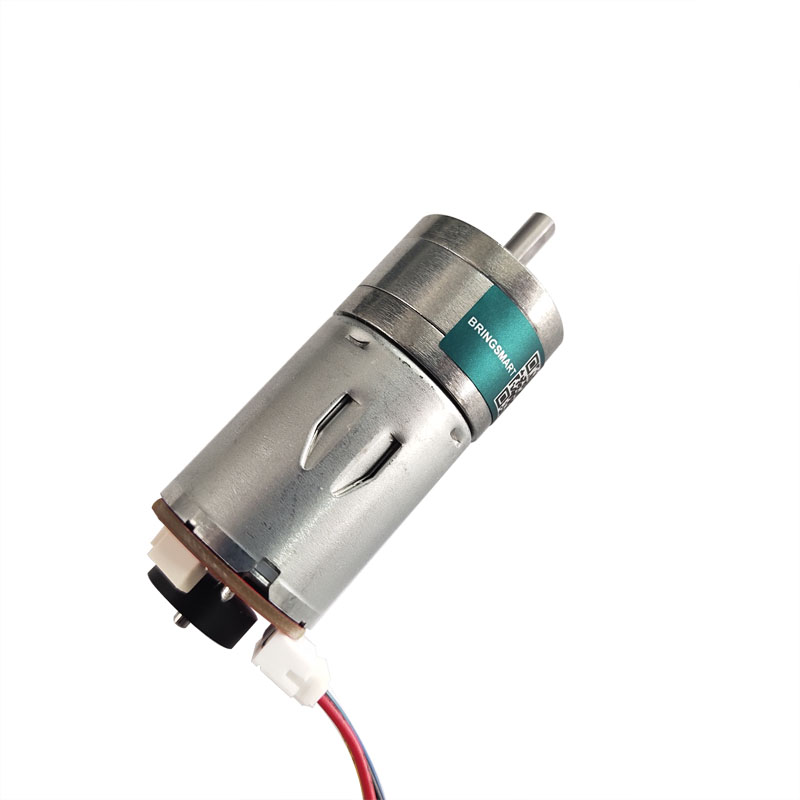

bringsmart SRJGA25-371B 17-500rpm 0.5-8kg.cm DC 12 Volt gear motor

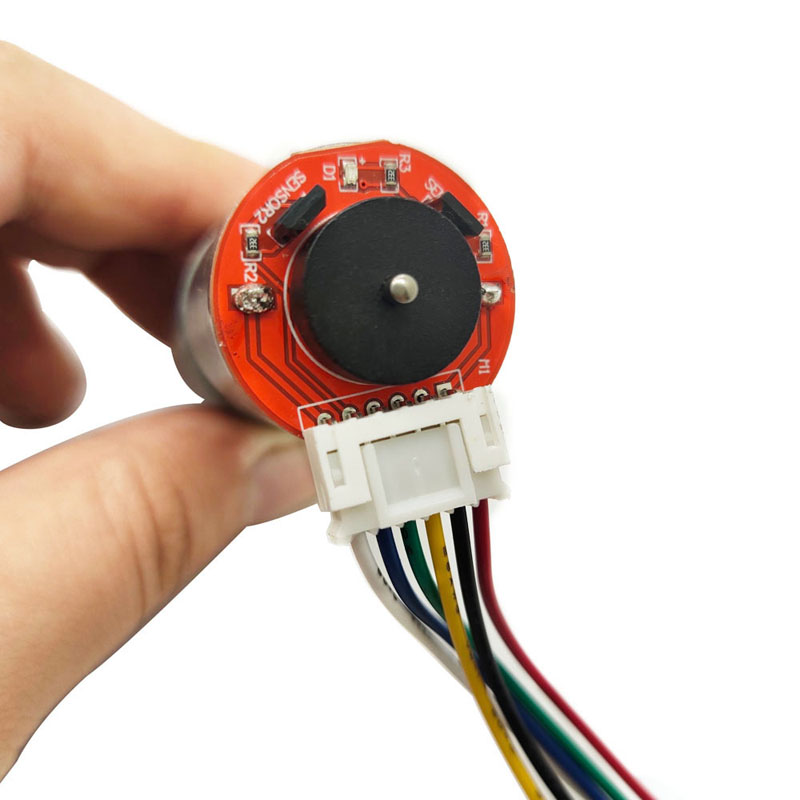

Black → Encoding Power - (positive and negative can not be wrong 3.3-5V)
Yellow → signal feedback (motor 1 rotation is 16 signals)
Green → signal feedback ( motor 1 rotation is 16 signals )
Blue → coding power + (positive and negative polarity can not be wrong 3.3-5V)

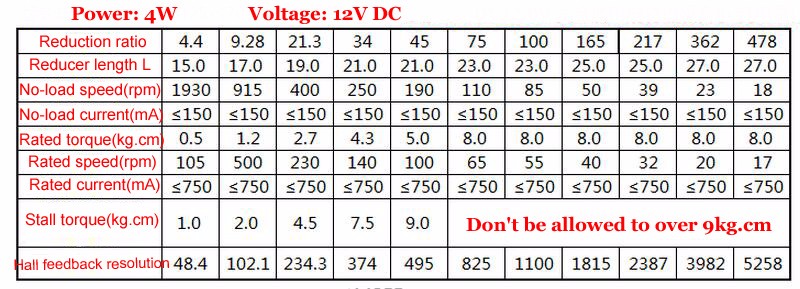

Product data
Basic information
| Sort by power source type | DC |

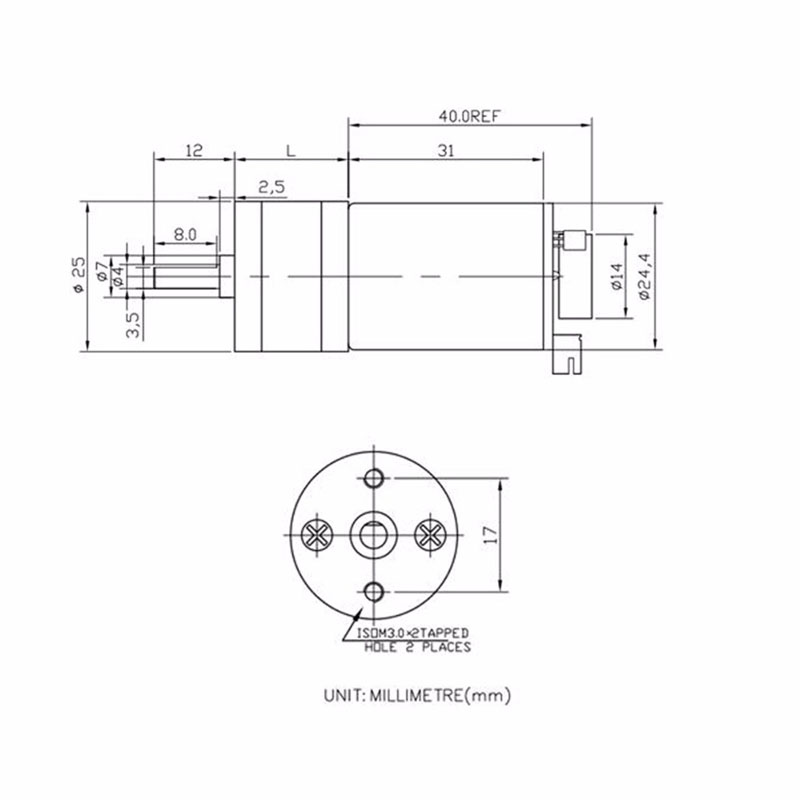

| Diameter of gearbox (mm） | 25*L |
| Diameter of gearbox (inch） | 0.98*L |
| Max. length（mm） | 52+L |
| Max. length（inch） | 2.05+L |
| Companies producing the product | Fuzhou Bringsmart Intelligent Tech. Co., Ltd |
Input
| Operating voltage (v) | 12v |
| Operating current | 0.15-0.75A |
Output
| No load speed | 18-1930rpm |
| Load speed | 17-500rpm |
| Load torque | 0.5-8kg.com |
| Load power | 4w |
| Stall torque | 1.0-9kg.com |
BRINGSMART MOTOR DESIGN
If you are interested in this motor, then you can also find out more about what we can do for your project, which can reduce your project costs and development time.
Multiple parameters
We can do many kinds of gearmotor voltage, current, speed, load, just tell us the parameters you need.
Shaft modifications
If your project has a customized need for the gear motors shaft material (carbon steel, alloy steel, stainless steel, etc.), shaft length (long shaft, short shaft, single shaft, double shaft), shaft shape (d-cuts, keyway cuts, location holes, threaded shafts, and shaped shafts), please give us your drawings, and we use the most advanced shaft machining equipments to meet your needs.
Wires and connectors
We can assemble the length and parameters of wires and connectors of dc brush and brushless motors according to your requirements.
Customised wiresets including all manner of connectors from JST, Hirose, AMP, Molex, AVX, and Kyocera
We also offer the following motor accessories, each of which has been rigorously selected and tested to ensure a perfect match for our motors, ensuring the stability of your application.
