bringsmart SRJGA25-310 5-1272rpm 0.04-11Kg.cm DC 3V 6V 12 Volt gear motor

SRJGA25-310

Quantity

Contact Now

add to cart

SRJGA25-310: 25mm spur gearbox with 310 dc mótor

The 25mm diameter gearboxes (spur gearboxes and planetary gear box) can be used with brushed high speed dc mótor 310 280 340 385, and brushless high speed dc mótor 2430, you can see the difference between them in the table below:

Mótor Model	motor gearbox dc Characteristics	Load Torque-kgf.com	Load Speed-rpm	Max size-mm
SRJGA25-310	brushed motor with spur gear box	0.1-11	11-1318	18.5+18 to 27
SRJGA25-340	brushed motor with spur gear box	0.27-6.37	13-1611	24.5+18 to 27
SRJGA25-280	brushed motor with spur gear box	0.13-3	40-954	30.8+15 to 23
SRJGA25-370	brushed motor with spur gear box	0.1-14	5-1351	31+18 to 27
SRJGA25-385	brushed motor with spur gear box	0.32-30	10-1200	37.5+17 to 27
SRJGA25-2418	brushless motor with spur gear box, Long Life	0.03-16.5	6-1500	18+18 to 26
SRJGA25-2430	brushless motor with spur gear box, Long Life	0.1-7.5	9-1046	30.8+15 to 27
SRCM25-2430	brushless motor with planetary gear box, Long Life	0.43-21	14-888	30.8+18 to 40.8

Below we introduce the smallest mótor size SRJGA25-310, if you need other size motor gearbox dc, please contact us.

DC Mótor Features:

Lighter, smaller dc mótor

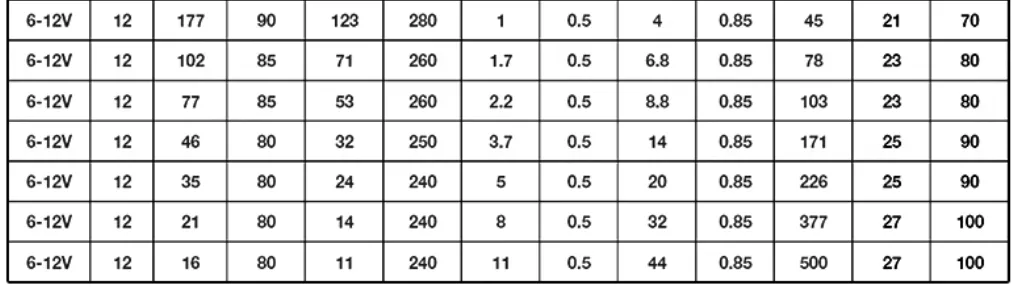

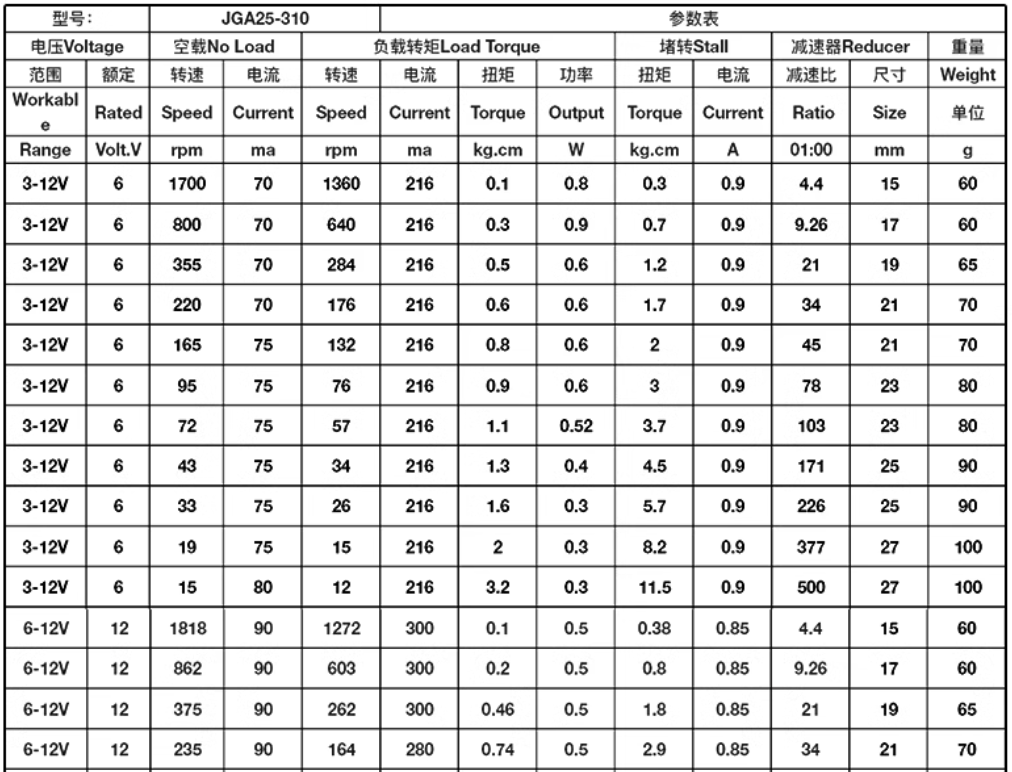

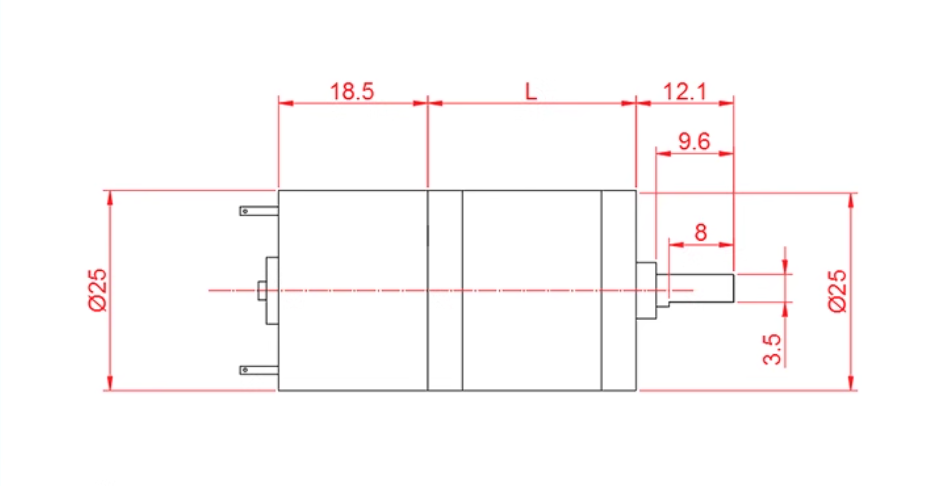

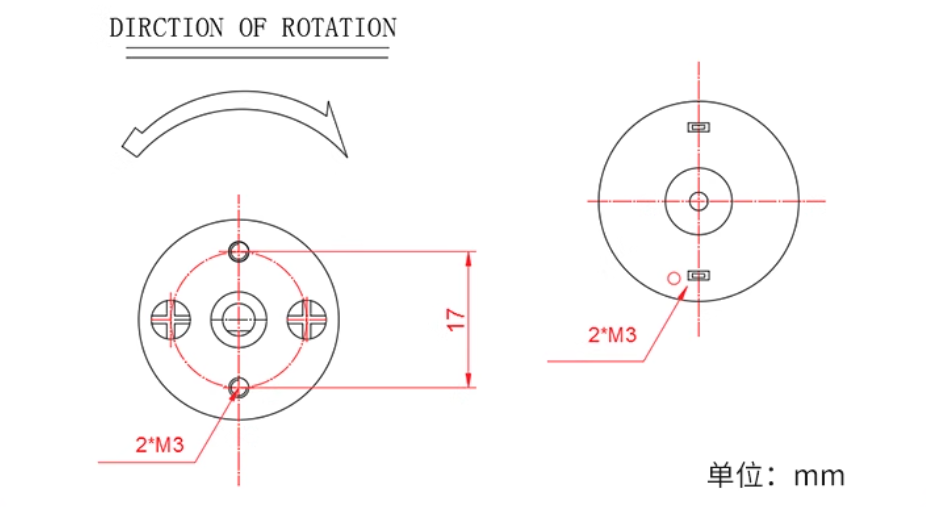

This mótor is the smallest of the 25mm diameter gearbox series, with a length range from 36.5mm to 45.5mm, weight from 60-100g depending on the gear ratio (the exact dimensions can be seen in the table below), and is particularly suitable for projects with limited installation space, but Bringsmart's use of high quality dc mótor accessories and adherence to higher than industry production standards allows the dc mótor maximum rated load torque to remain up to 11kgf.cm.

Low cost motor gearbox dc

Use brushed high speed motor, simple construction, low cost

Applications

In terms of the Smart Home Appliance Industry, This motors are commonly used in applications such as:

Coffee machines: Bringsmart motors can be used to grind the coffee beans, extract the coffee liquid, froth the milk, dispense the cups and other steps of precise control to ensure the taste and flavor of the coffee.

Motorized Curtains: motor gearbox dc can be used to control the opening and closing of curtains at a uniform speed, ensuring quietness and enhancing the intelligence of the curtains.

Pop up power outlet: Bringsmart motors can be used to raise and lower sockets with a steady torque output to ensure that the sockets are able to withstand sufficient plugs and respond in a timely manner.

Sweepers: Bringsmart motors are used to move, vacuum, and brush the sweeper to provide precise control and powerful sweeping and mopping action.

If the parameters of this motor do not meet your requirements, please click to learn more about the motors we recommend for you.

25mm Gear box diameter

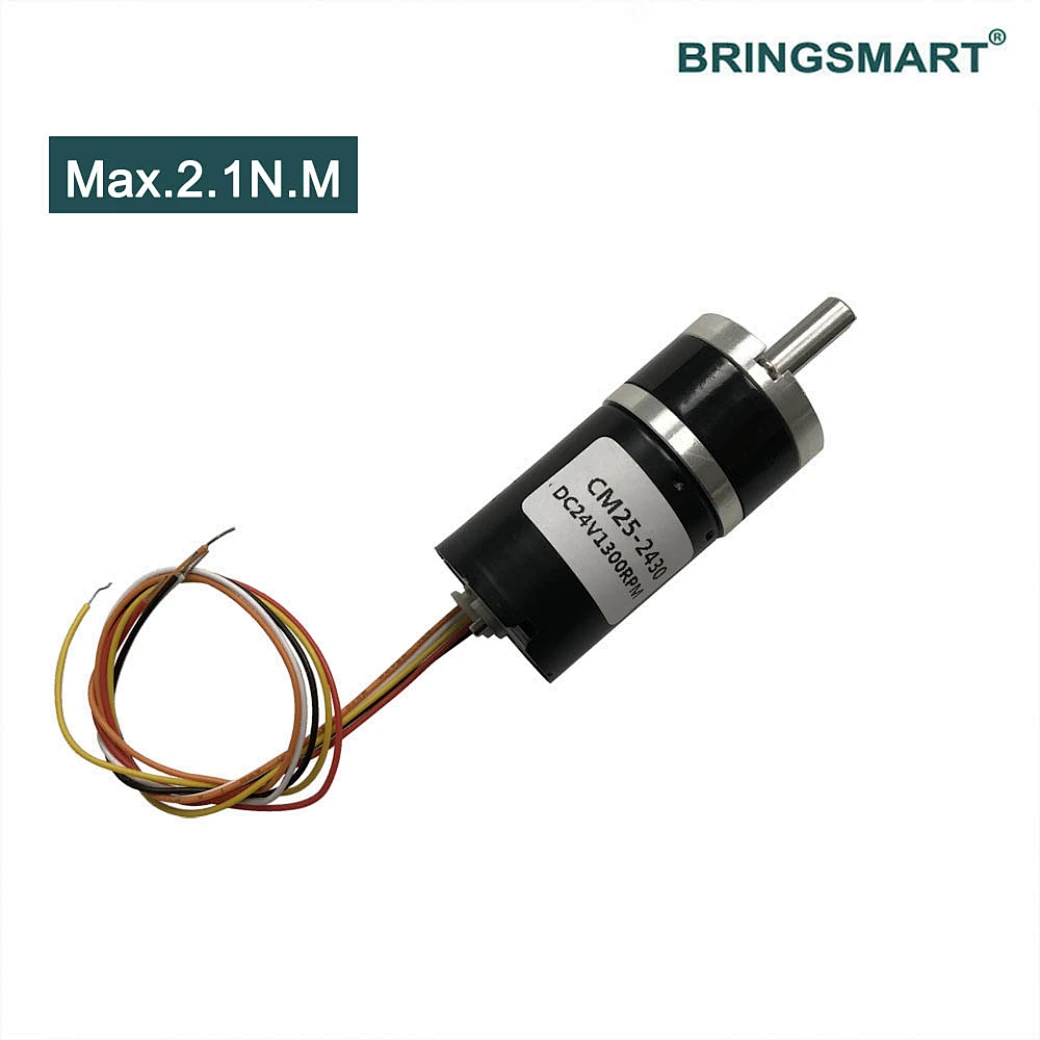

It's the same 25mm diameter gearbox as the one you just looked at, the overall motor length is slightly longer, but with the planetary gearbox and bldc motor, the max torque is 21kgf.cm, the previous one only had a max torque of 11kgf.cm.

37mm Gearbox diameter

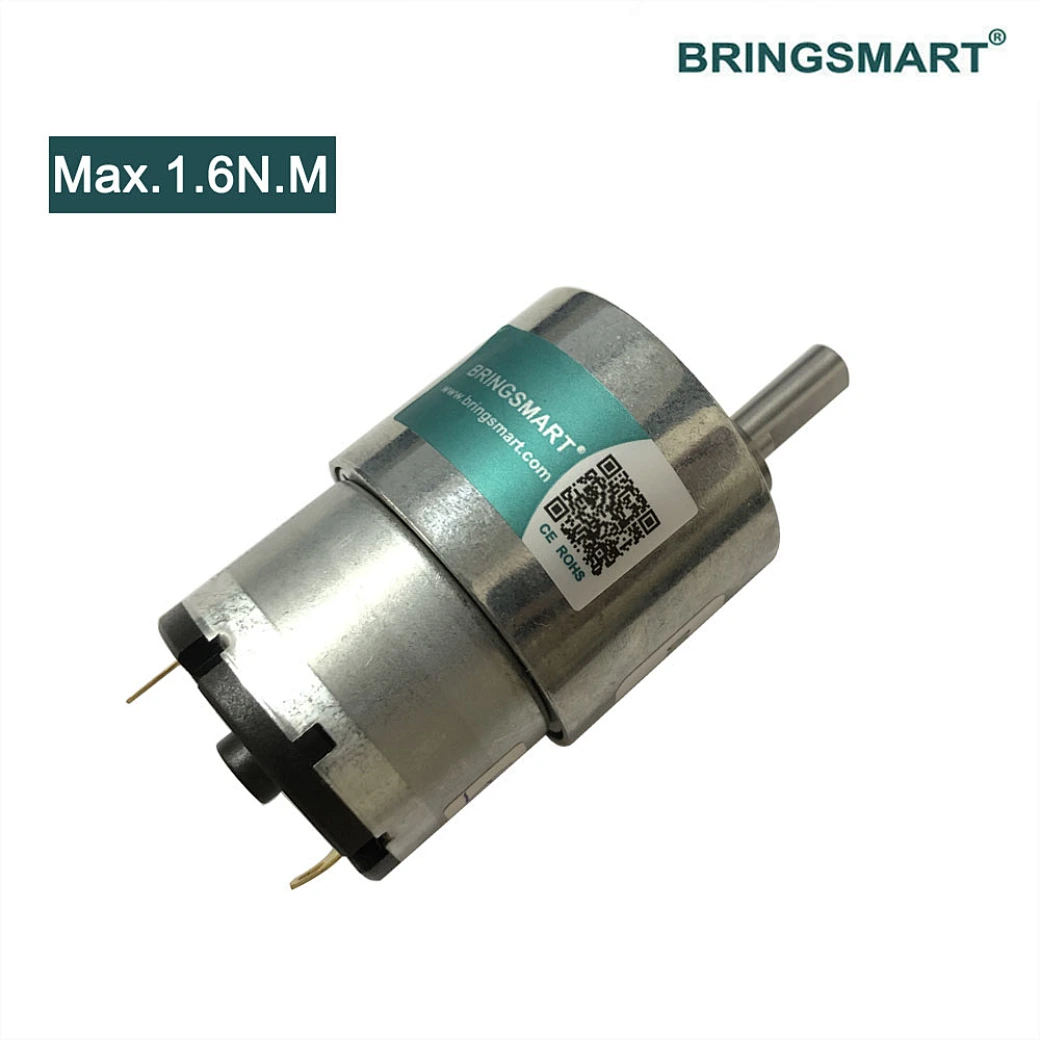

Using a 37mm diameter spur gear reducer with a brushed motor, it achieves a maximum torque of 16kgf.cm, compared to the previous model's maximum torque of 11kgf.cm.

37mm Gearboxs diameter

Using a 37mm diameter spur gear reducer with a brushed motor, it achieves a maximum torque of 35kgf.cm, compared to the previous model's maximum torque of 11kgf.cm.

37mm Reducer diameter

Using a 37mm diameter spur gear reducer with a brushed motor, the motor length is much longer than the previous oneit achieves a maximum torque of 60kgf.cm, compared to the previous model's maximum torque of 11kgf.cm.

Learn more

Because of the page limitations of the website, there is no way to show all the motors, perhaps you have not found a satisfactory motor,

please check the content below to contact us!

BRINGSMART MOTOR DESIGN

If you are interested in this motor, then you can also find out more about what we can do for your project, which can reduce your project costs and development time.

Multiple parameters

We can do many kinds of gearmotor voltage, current, speed, load, just tell us the parameters you need.

Shaft modifications

If your project has a customized need for the gear motors shaft material (carbon steel, alloy steel, stainless steel, etc.), shaft length (long shaft, short shaft, single shaft, double shaft), shaft shape (d-cuts, keyway cuts, location holes, threaded shafts, and shaped shafts), please give us your drawings, and we use the most advanced shaft machining equipments to meet your needs.

Wires and connectors

We can assemble the length and parameters of wires and connectors of dc brush and brushless motors according to your requirements.

Customised wiresets including all manner of connectors from JST, Hirose, AMP, Molex, AVX, and Kyocera

We also offer the following motor accessories, each of which has been rigorously selected and tested to ensure a perfect match for our motors, ensuring the stability of your application.
