bringsmart SR5840-3650 Double Shaft 6-380rpm 2.5-60Kg.cm DC 12V 24 Volt brushless gear motor
Red wire: connect to the positive pole of the motor +
Connect the blue wire to the negative pole of the motor to brake immediately
White wire: CW/CCW reversing wire, connect the white wire to the black wire to change the steering.
Yellow wire: FG signal line output Hall signal, the base pulse of a circle of nine signals
Blue wire: PWM pulse width speed control line can be connected to 0-5V pulse width speed control.
BLDC 3650 speed control wiring (speed control power supply and motor power supply is independent of open)
Connect the blue wire to the middle pin of the potentiometer.
Black wire: with the motor power supply common ground - this line must be shared with the negative pole of the motor and the other foot of the motor power supply 0 ~ 5V + pole

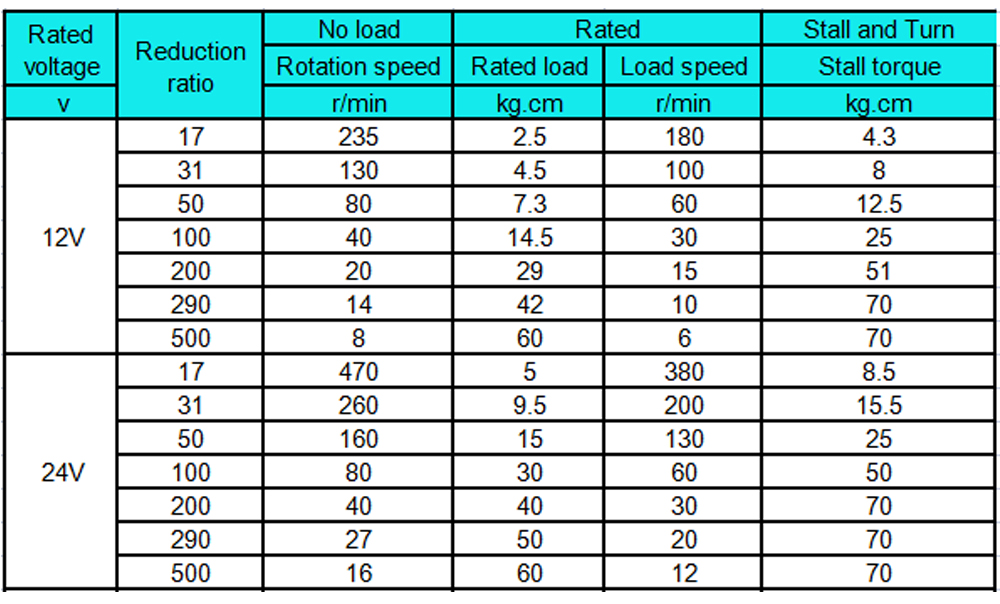

Product data
Basic information
| Sort by power source type | DC |

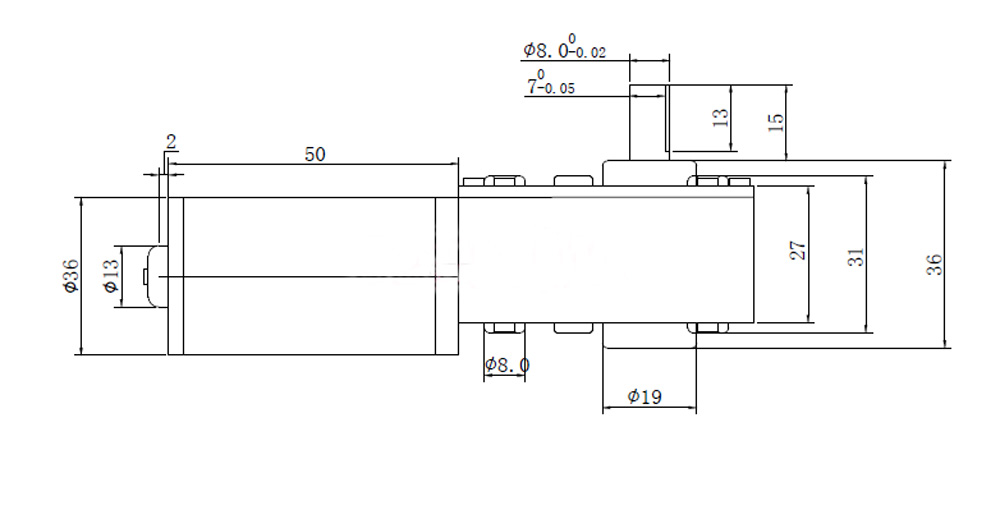

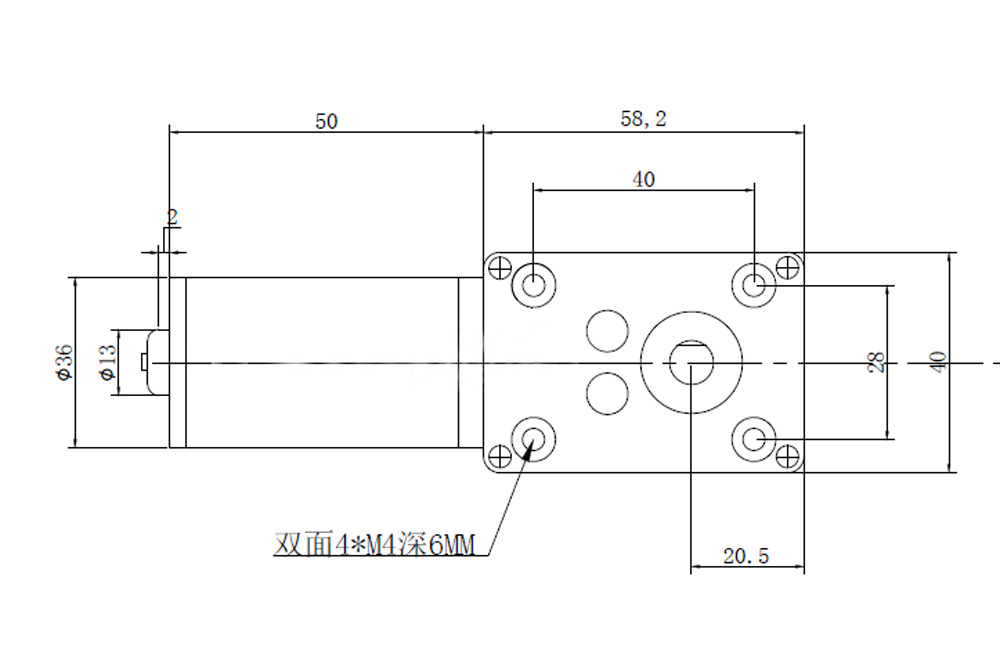

| Diameter of gearbox (mm） | 58.2*40 |
| Diameter of gearbox (inch） | 2.29*1.57 |
| Max. length（mm） | 108.2 |
| Max. length（inch） | 4.26 |
| Companies producing the product | Fuzhou Bringsmart Intelligent Tech. Co., Ltd |
Input
| Operating voltage (v) | 12v 24v |
| Operating current | 0.23-1.6A |
Output
| No load speed | 8-470rpm |
| Load speed | 6-380rpm |
| Load torque | 2.5-60kg.com |
| Load power | w |
| Stall torque | kg.com |

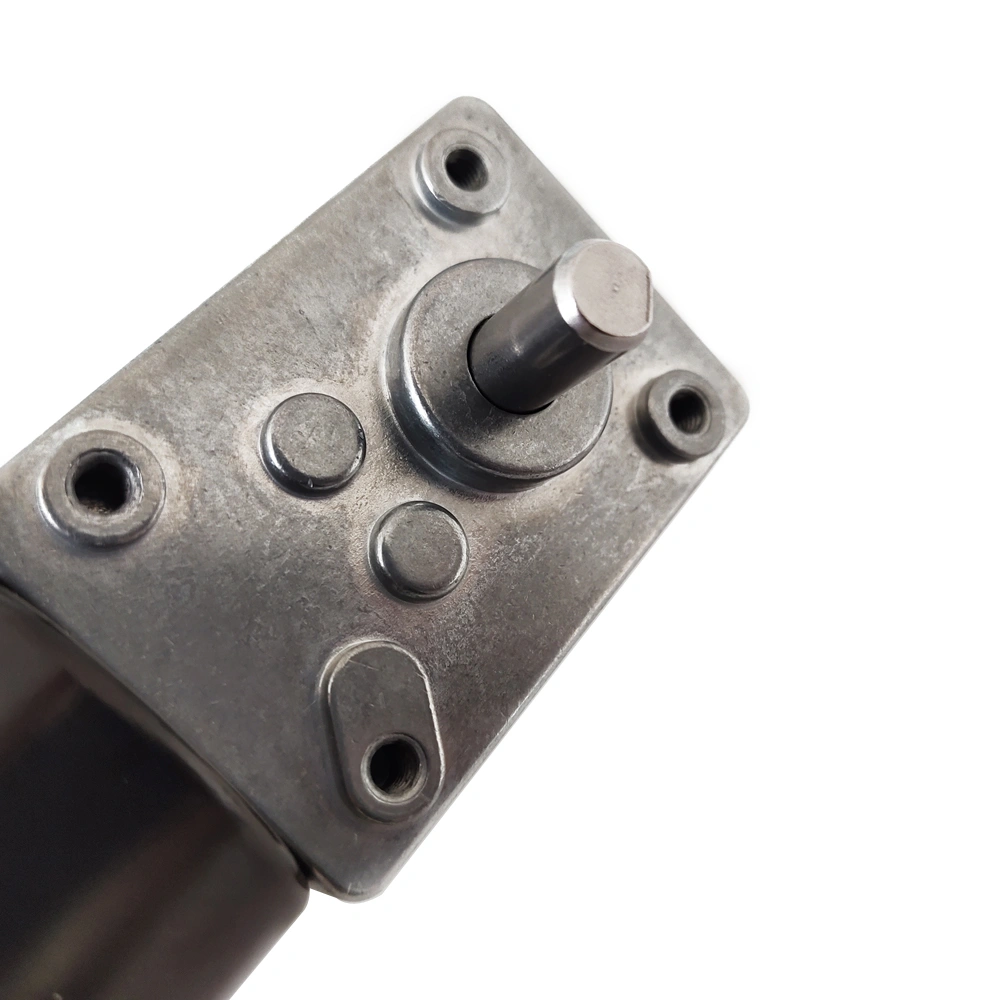

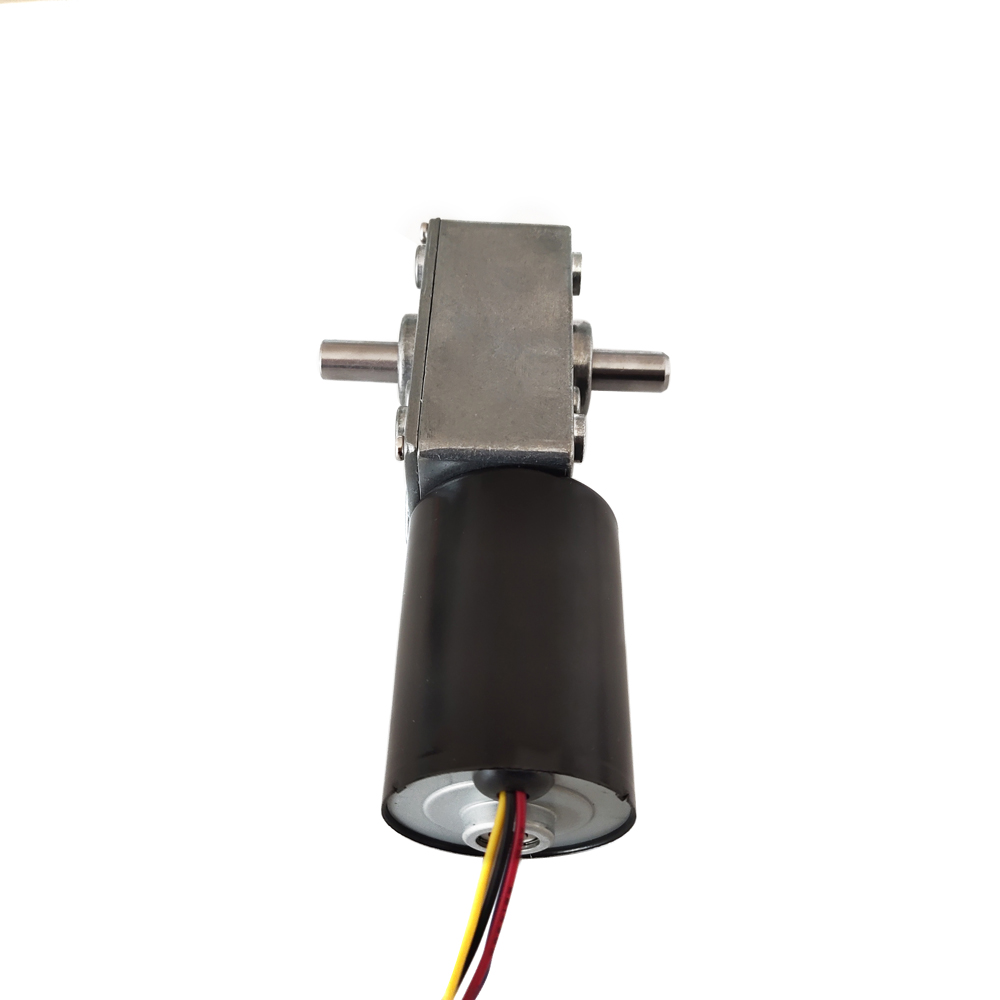

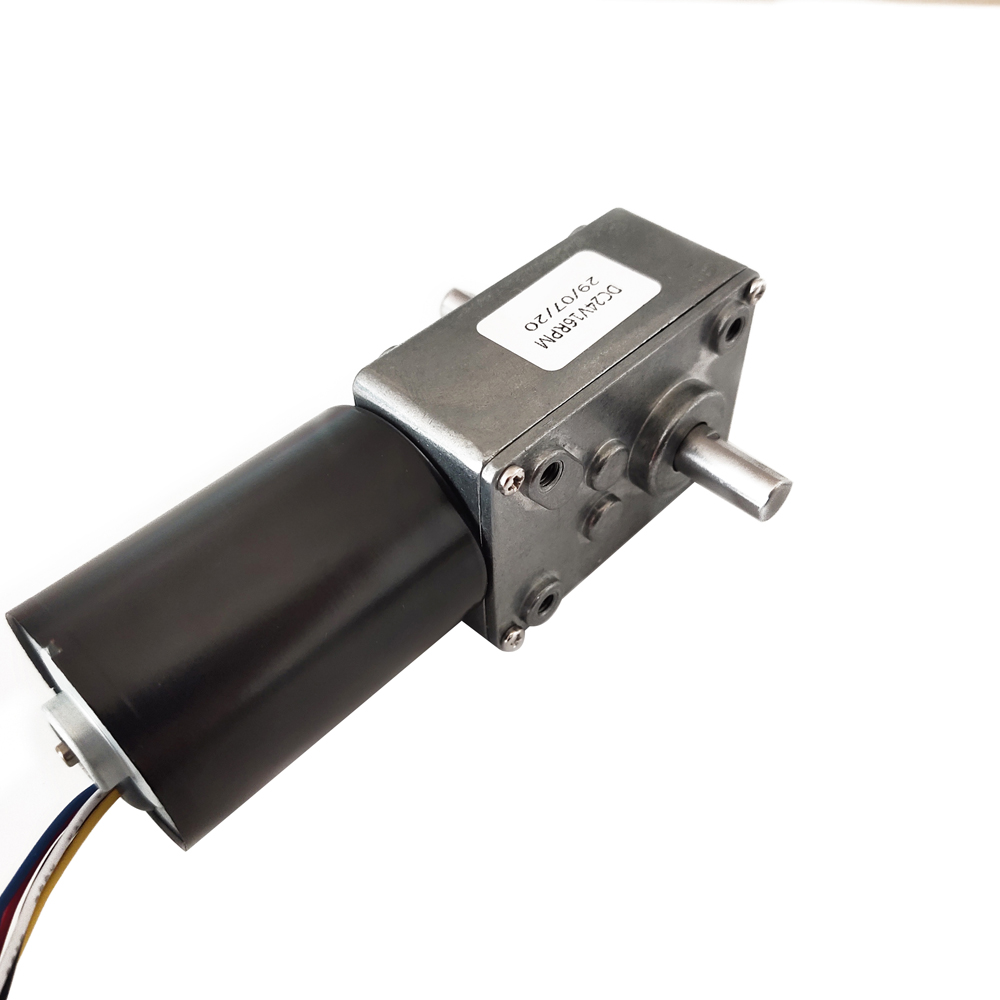

Bringsmart 5840-3650 Double Shaft Brushless DC Worm Gear Motor
BRINGSMART MOTOR DESIGN
If you are interested in this motor, then you can also find out more about what we can do for your project, which can reduce your project costs and development time.
Multiple parameters
We can do many kinds of gearmotor voltage, current, speed, load, just tell us the parameters you need.
Shaft modifications
If your project has a customized need for the gear motors shaft material (carbon steel, alloy steel, stainless steel, etc.), shaft length (long shaft, short shaft, single shaft, double shaft), shaft shape (d-cuts, keyway cuts, location holes, threaded shafts, and shaped shafts), please give us your drawings, and we use the most advanced shaft machining equipments to meet your needs.
Wires and connectors
We can assemble the length and parameters of wires and connectors of dc brush and brushless motors according to your requirements.
Customised wiresets including all manner of connectors from JST, Hirose, AMP, Molex, AVX, and Kyocera
We also offer the following motor accessories, each of which has been rigorously selected and tested to ensure a perfect match for our motors, ensuring the stability of your application.
