CCM6C PWM 10A Regulator And Speed Controller 6V 12V 24V Use For Brushed Motor

Specification:

Model: CCM6C

Input voltage: 6V/12V /24V DC

Control Power: 24V-within 200W; 12V-within 120W; 6V- within 60W

Current: Sustained current maximum 20A, suggest use within 10A

PWM Duty Cycle:5% -100%, almost 99% motor included.

PWM Frequency:21khz ( It means with very low voice when low speed )

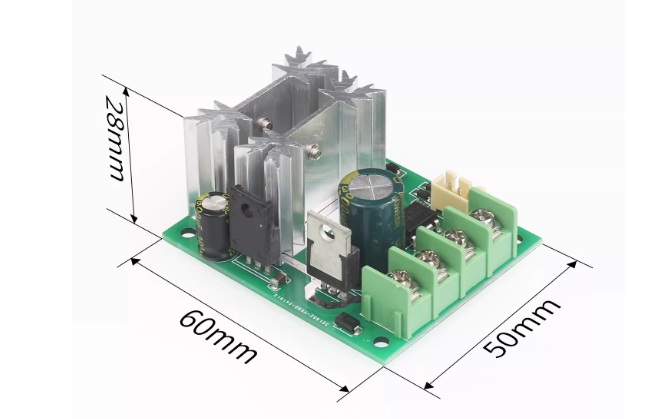

Size (L*W*H):6 x 5 x 2.7cm/2.36"x1.96"x1.06"(approx)

BRINGSMART MOTOR DESIGN

If you are interested in this motor, then you can also find out more about what we can do for your project, which can reduce your project costs and development time.

Multiple parameters

We can do many kinds of gearmotor voltage, current, speed, load, just tell us the parameters you need.

Shaft modifications

If your project has a customized need for the gear motors shaft material (carbon steel, alloy steel, stainless steel, etc.), shaft length (long shaft, short shaft, single shaft, double shaft), shaft shape (d-cuts, keyway cuts, location holes, threaded shafts, and shaped shafts), please give us your drawings, and we use the most advanced shaft machining equipments to meet your needs.

Wires and connectors

We can assemble the length and parameters of wires and connectors of dc brush and brushless motors according to your requirements.

Customised wiresets including all manner of connectors from JST, Hirose, AMP, Molex, AVX, and Kyocera

We also offer the following motor accessories, each of which has been rigorously selected and tested to ensure a perfect match for our motors, ensuring the stability of your application.
