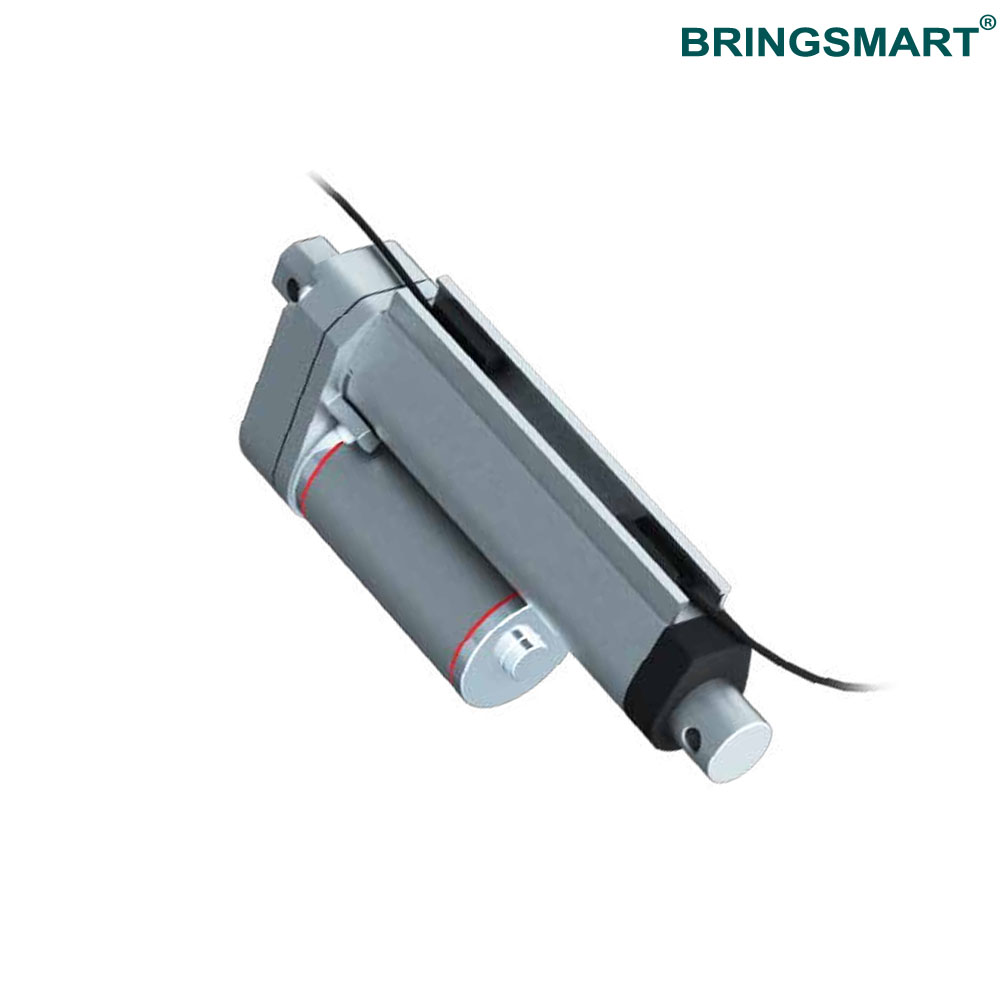

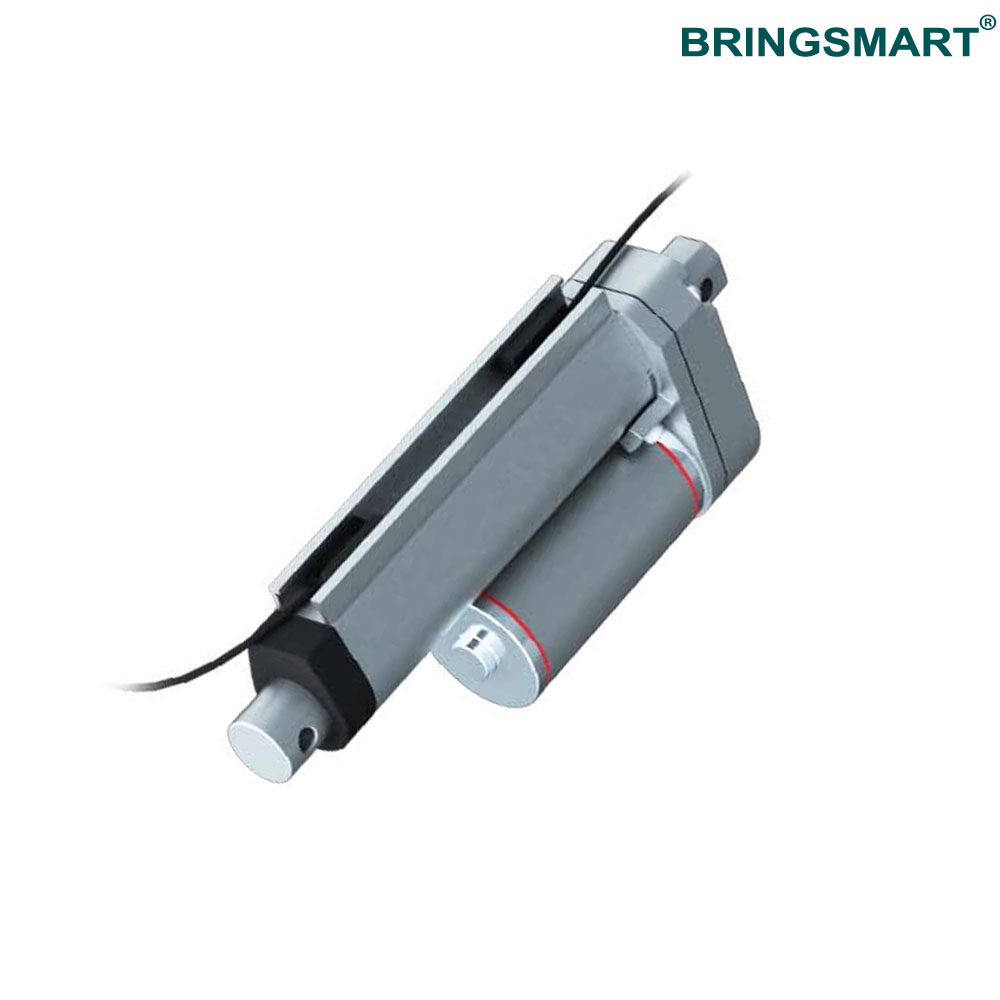

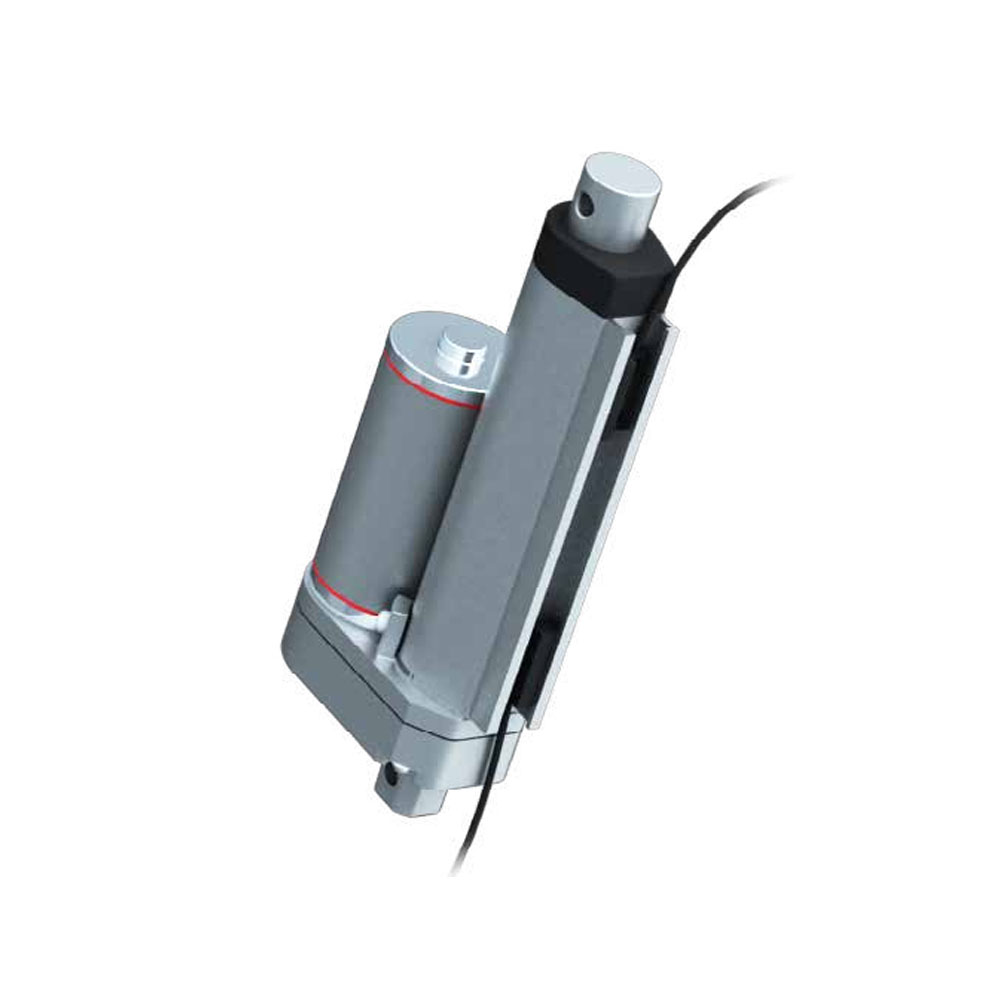

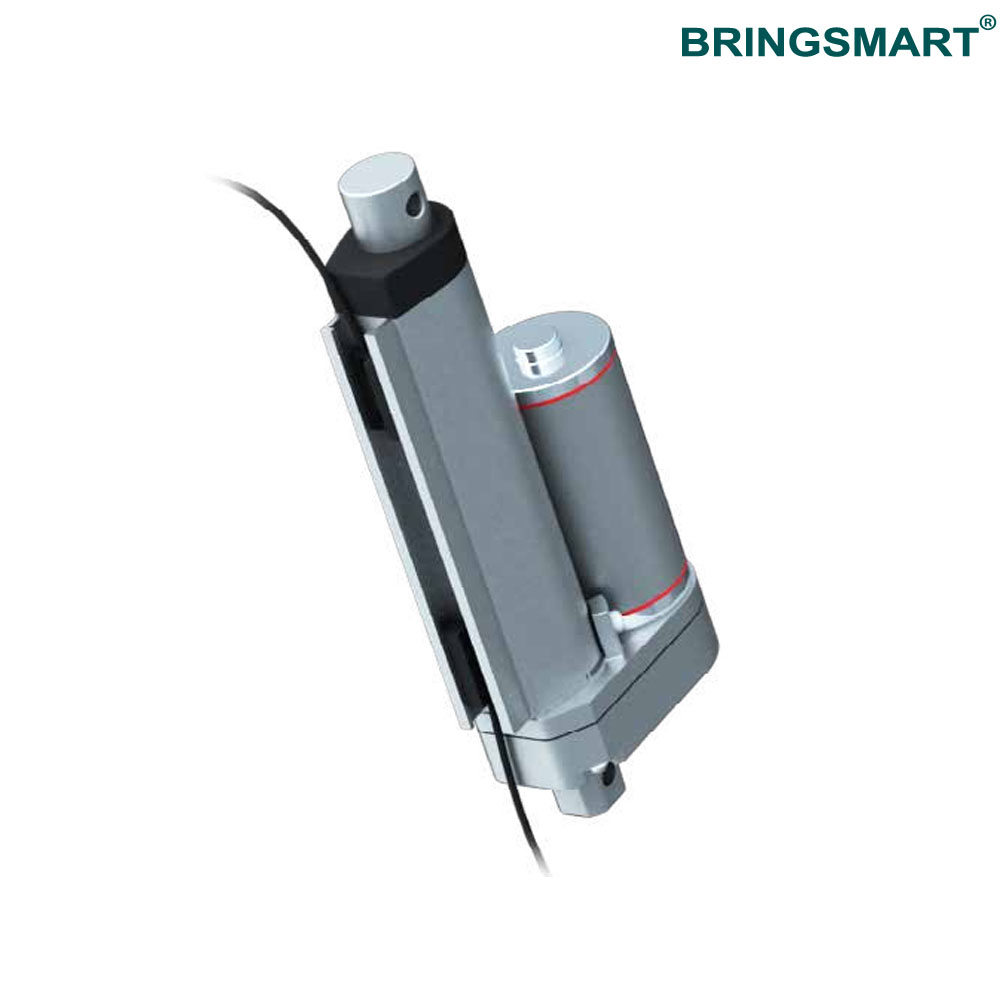

BSTGA-X 12V dc linear actuator 24v electric motor 36v 48v Tubular motor Manually adjust stroke

产品详情

Product Introduction:

Aluminum alloy material, compact design, light weight, adopt DC gear motor; Stroke can be customized, simple installation, easy operation, can replace hydraulic, pneumatic and other traditional mechanical push products, Green environmental protection, widely used in aircraft, ships, luxury car seat backrest lift and massage beds, fire, medical, furniture and other products.

The model comes with a magnetic switch, only the feedback signal, we provide an external circuit board to achieve the end of the stroke to automatically stop.


Feature:

CE ROSH Certificated;

Max. 50,000 times test.

Operating temperature: -20 to +65 degrees Celsius

Shell and telescopic material: aluminum alloy

Protection level: IP54

Powder metallurgy gears

External magnetic switch, adjustable stroke

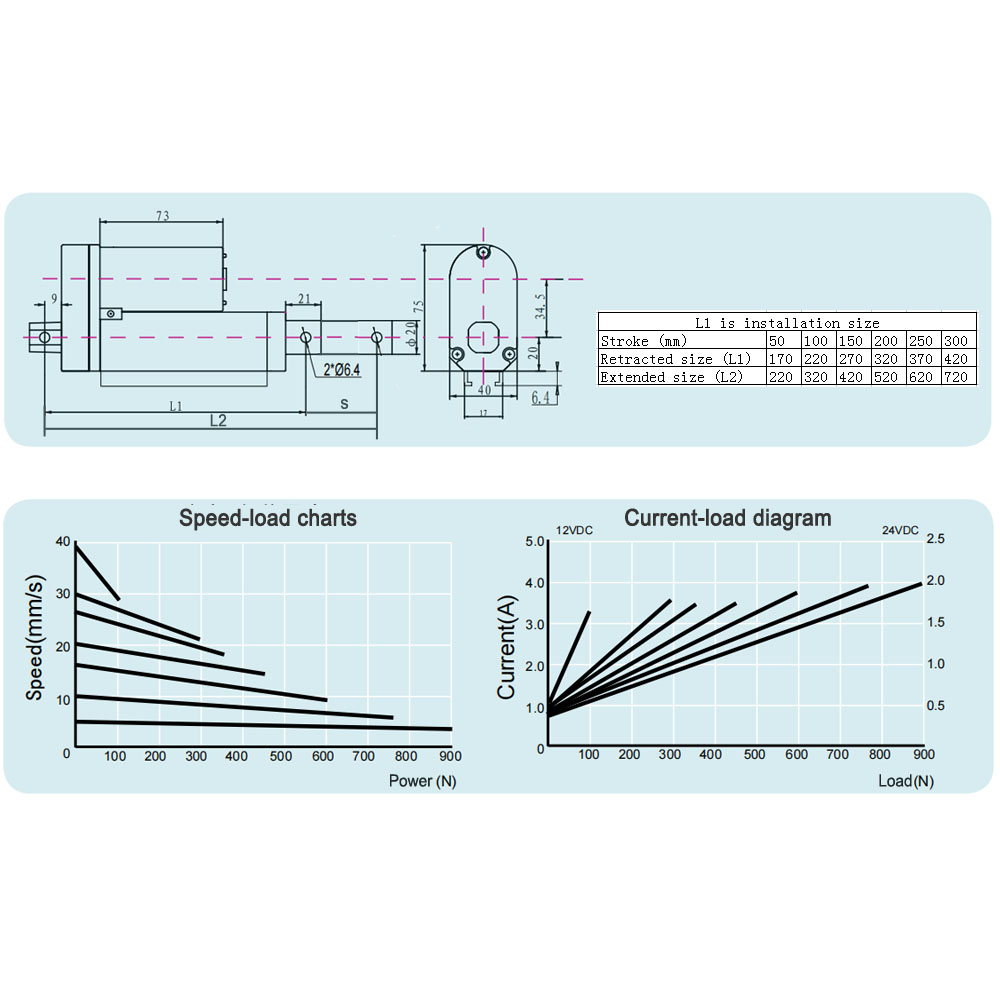

Size:


Customized service:

DC Voltage: 12v, 24v, 36v,48V DC;

Stroke: 50-500mm; other size, please contact us.

Maximum thrust: 900N;

Operating frequency: 20% (high-speed type of 10%)

Maximum self-locking force: 2300N

Maximum life: 50000 times

Speed: according to the load.

Load-speed: 900N-5mm/s;500N-10mm/s; 250N-20mm/s; 100N-30mm/s; 50N-35mm/s;



Please leave message of voltage, stroke, load which you want, we will reply you soon.
