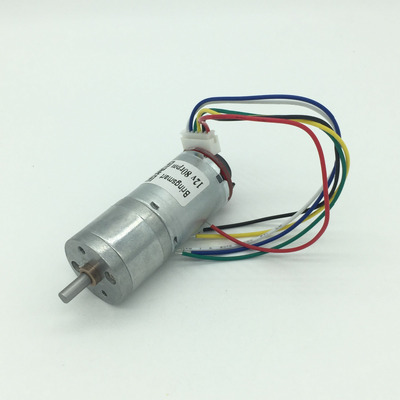

JGA25-371 Dc 12 Volt Motors With Encoder Motor And Gear Motor

JGA25-371 Dc 12 Volt Motors With Encoder Motor And Gear Motor

Voltage： DC 12V
WhatsApp  Message
产品详情

JGA25-371 Dc 12 Volt Motors With Encoder Motor And Gear Motor

Wiring:



Red → Motor Power + (exchange can control motor reversing)
black → encoder Power - (positive and negative not take the wrong 3.3-5V)
Yellow → feedback signal (One revolution of the motor is 11 signal)
White → feedback signal (One revolution of the motor is 11 signal)
Green → encoder supply + (positive and negative not take the wrong 3.3-5V)
Blue → Motor Power - (exchange can control motor reversing)
