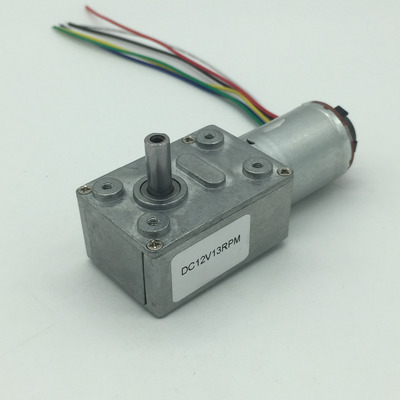

JGY-370B 12v DC Motor with Encoder Worm Gear Motor with Reductor

JGY-370B 12v DC Motor with Encoder Worm Gear Motor with Reductor

Voltage： DC 12V
WhatsApp  Message
产品详情

JGY-370B 12v DC Motor with Encoder Worm Gear Motor with Reductor

Wiring method:
Red → motor power + (exchange can control the motor forward and reverse)

Black → Encoding Power - (positive and negative can not be wrong 3.3-5V)

Yellow → signal feedback (motor 1 rotation is 16 signals)

Green → signal feedback ( motor 1 rotation is 16 signals )

Blue → coding power + (positive and negative polarity can not be wrong 3.3-5V)

White→ Motor power - (exchange can control the motor forward and reverse)
