Product Detail

R2430 12V 6000rpm DC Brushless Gear Motor DC 12 Volt Motors

Voltage：

DC 12V

产品详情

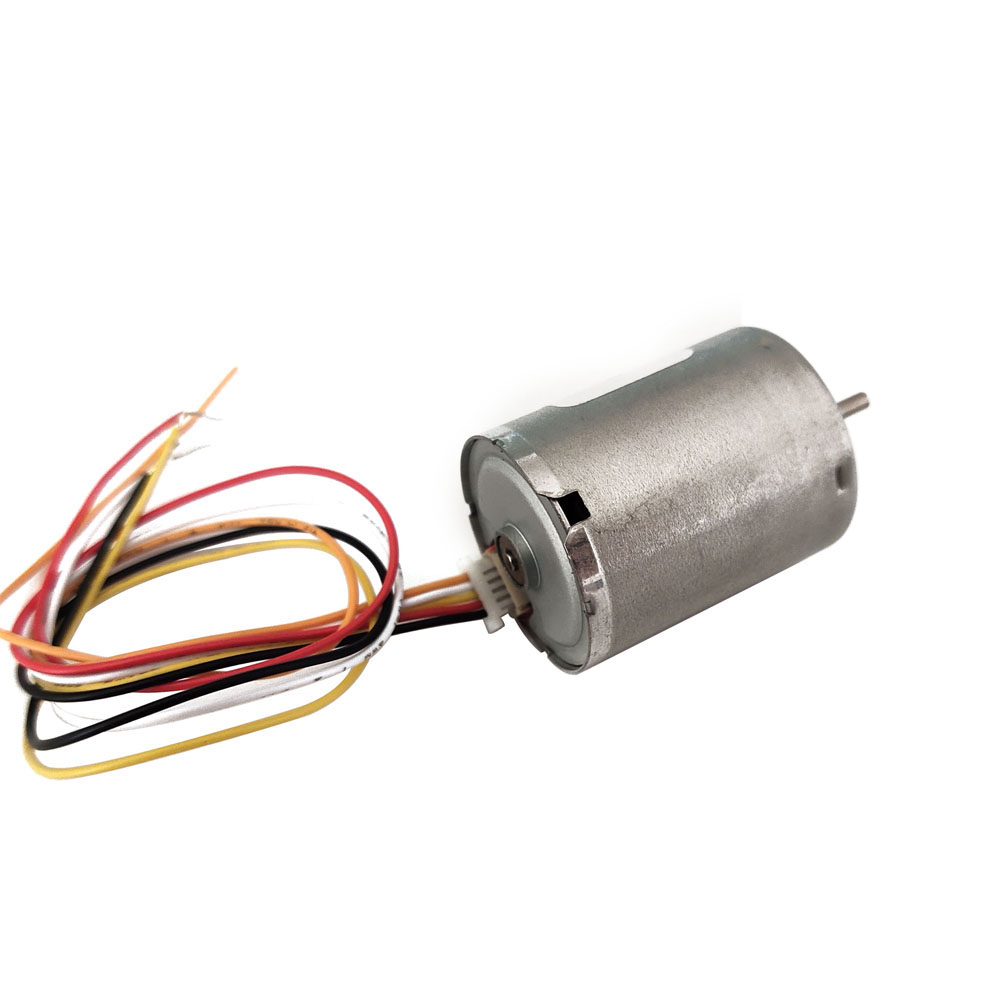

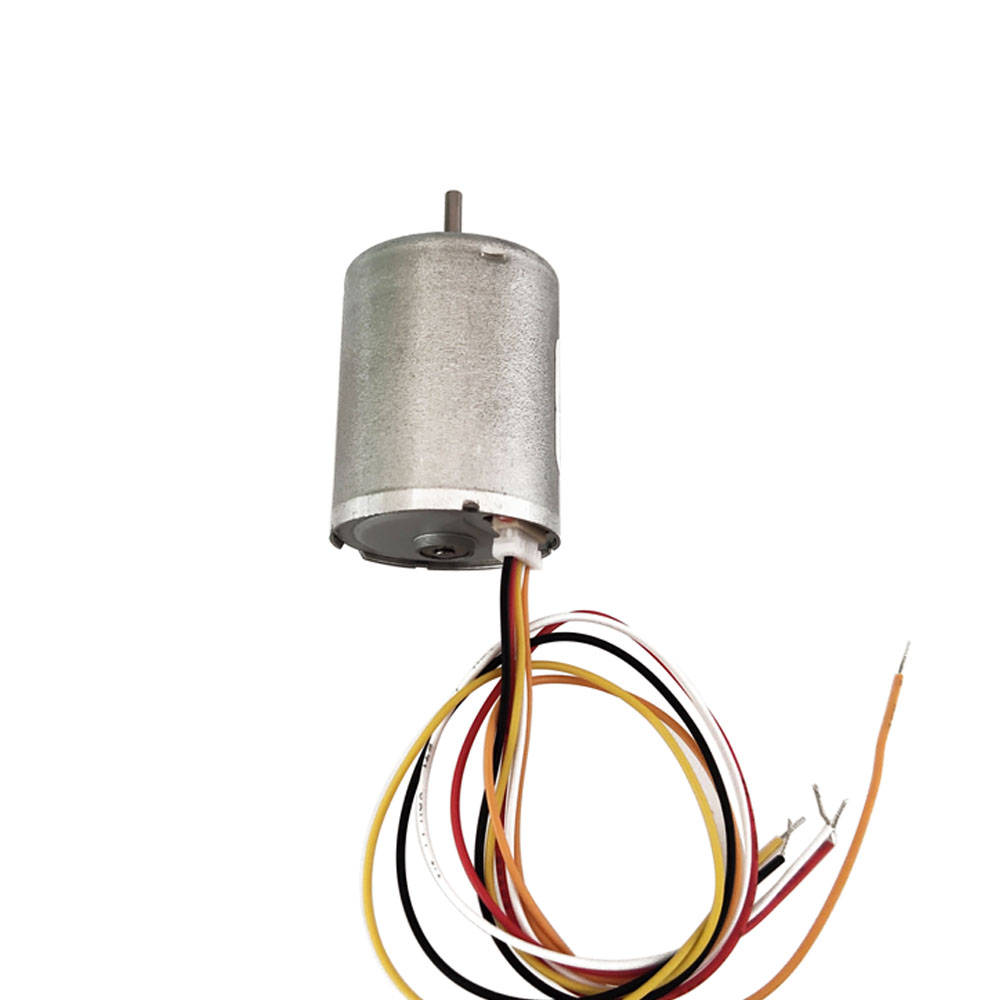

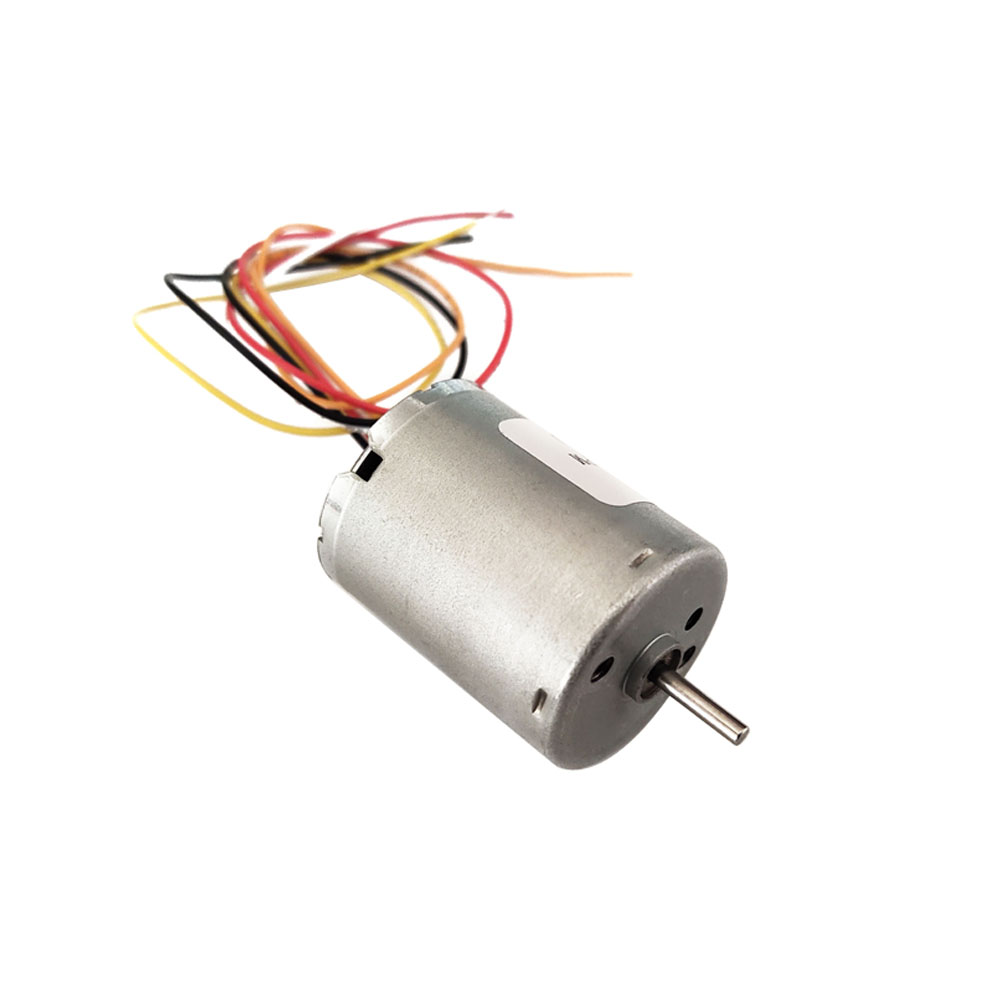

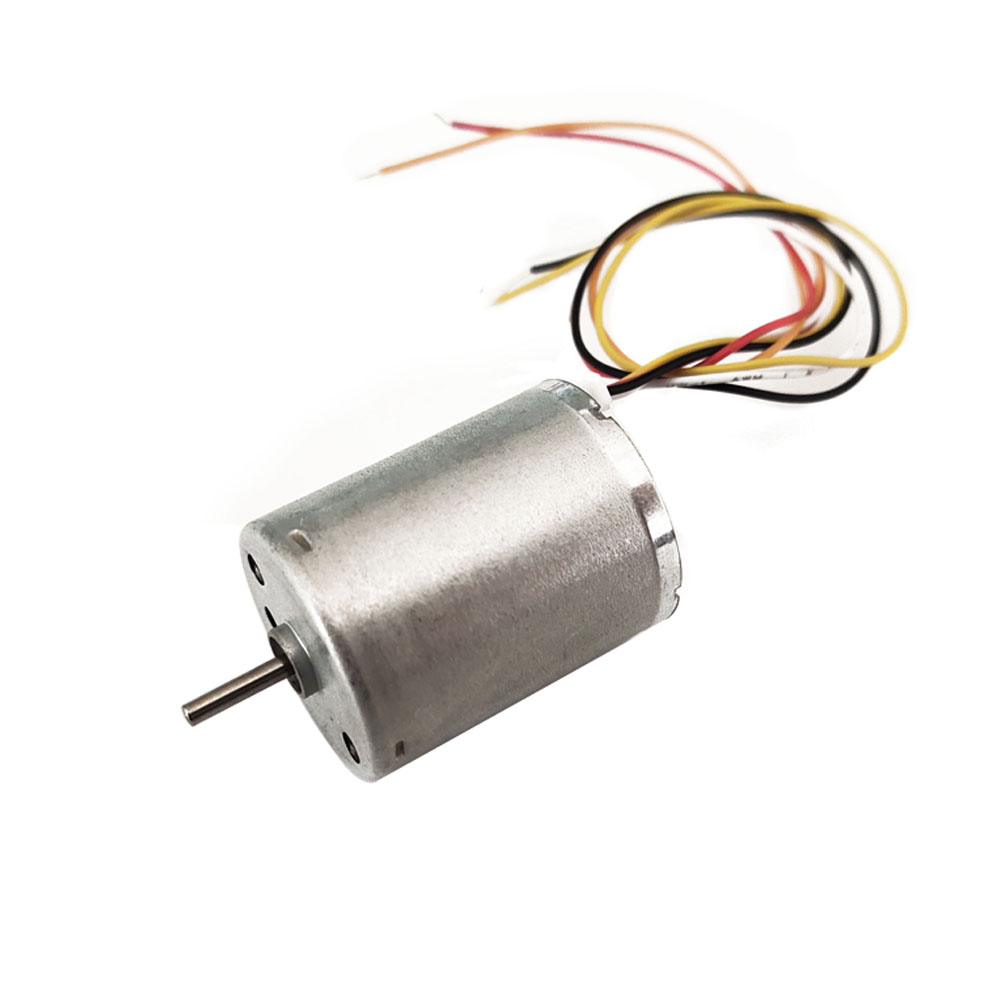

R2430 12V 6000rpm DC Brushless Gear Motor DC 12 Volt Motors

Model: R2430

Voltage: 12V

Speed: 6000rpm

Shaft Diameter: 2.0mm

Shaft length: 9.5mm

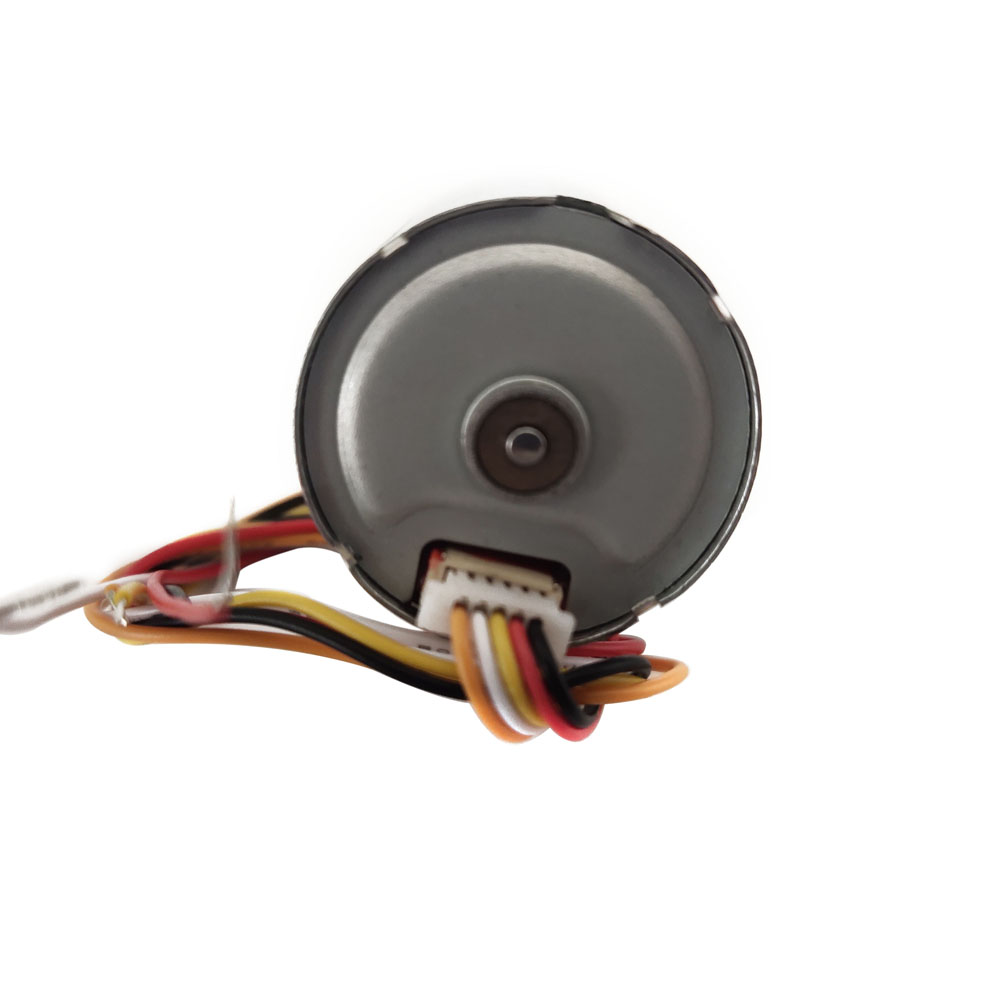

Wiring Method:

black line and blue line connect to the negative power, red wire connect to positive power supply.

Blue Line line is disconnected will immediately brakes.

Yellow Line: CW / CCW commutation line, the yellow line connect to the black line, change the steering.

Green Line: FG output signal line, the Hall signal

Blue line: PWM pulse width speed line can be connected 0-5V PWM converter
