Product Detail

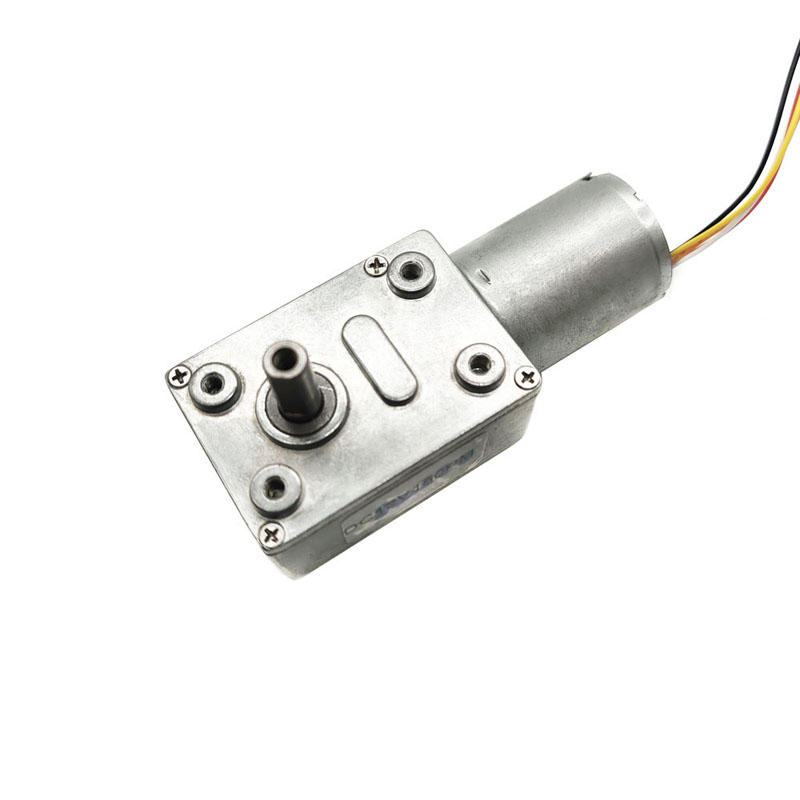

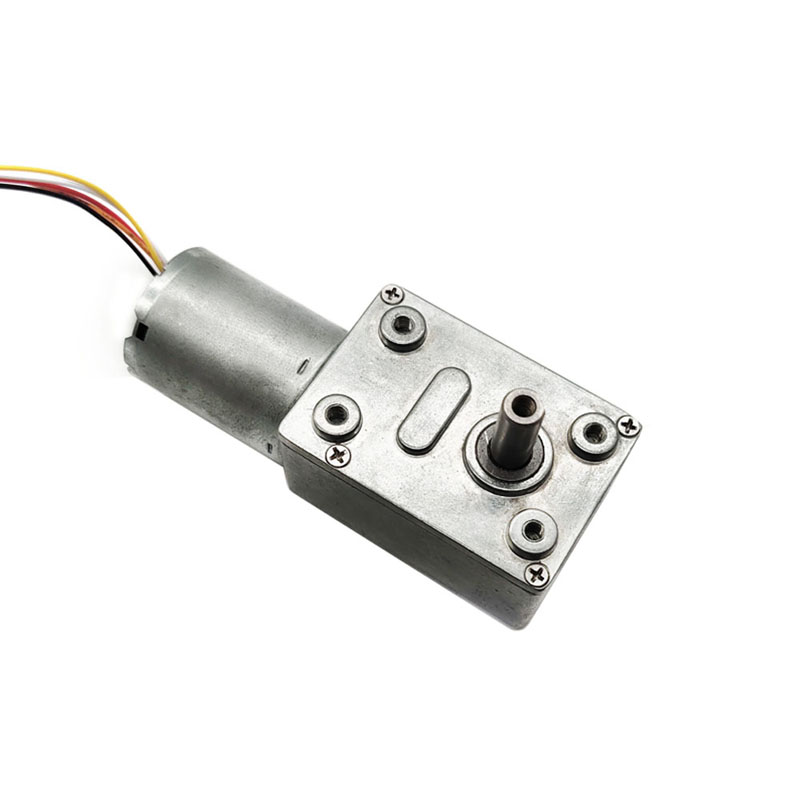

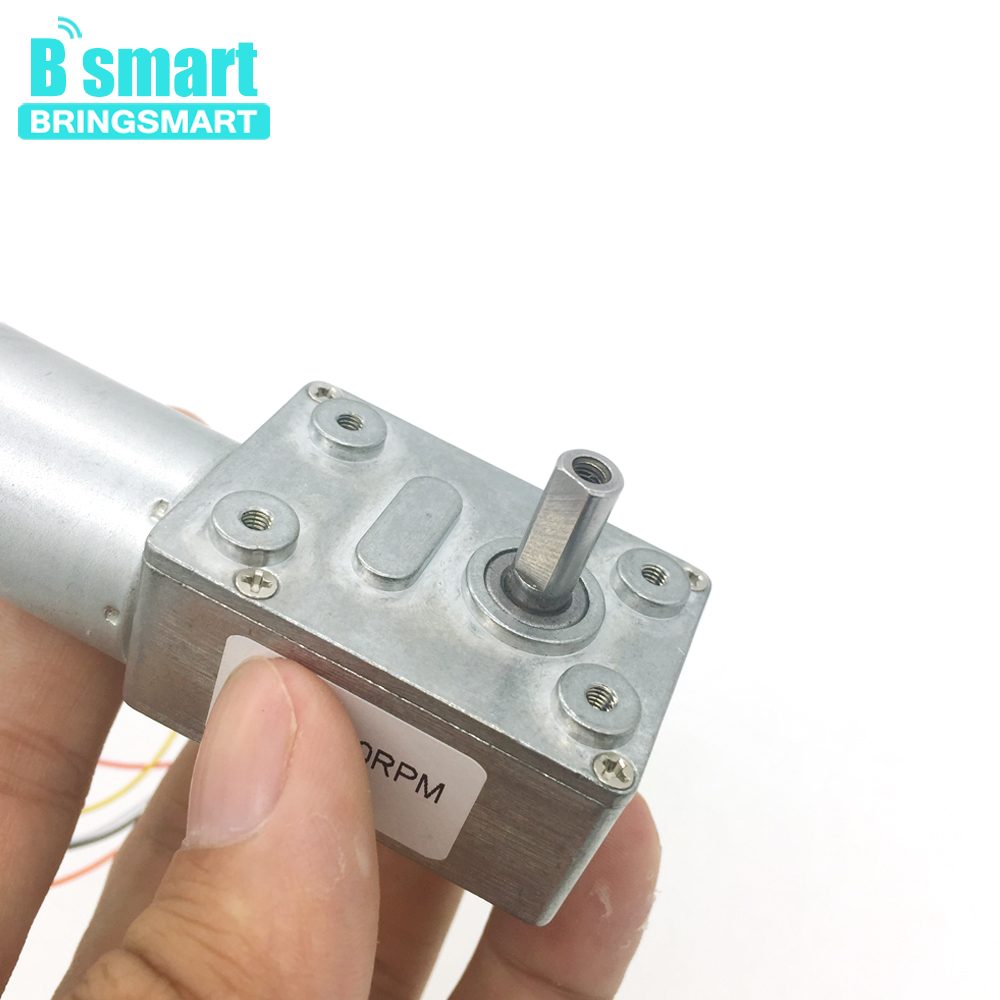

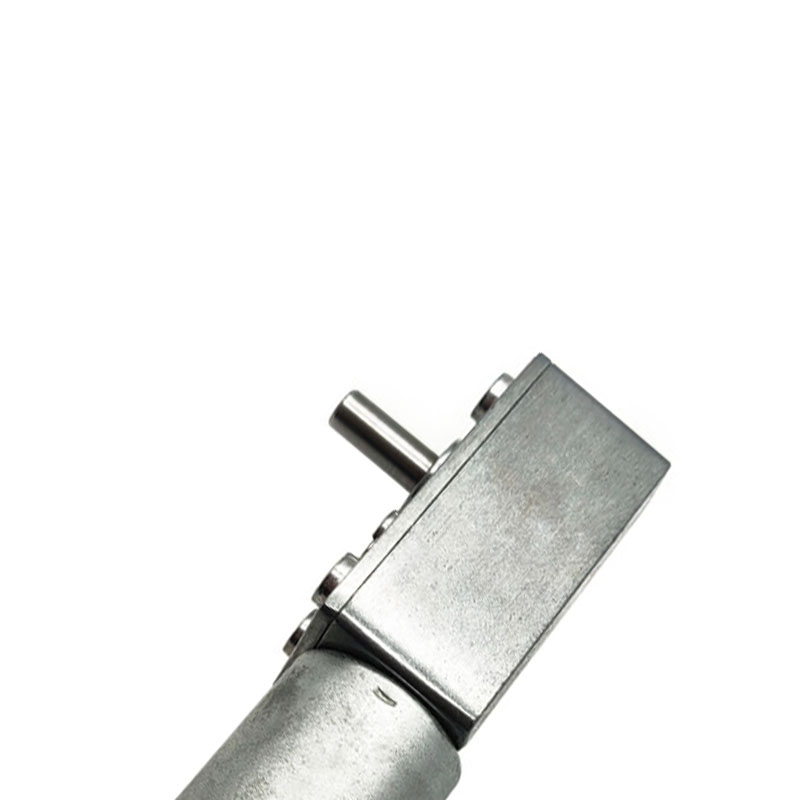

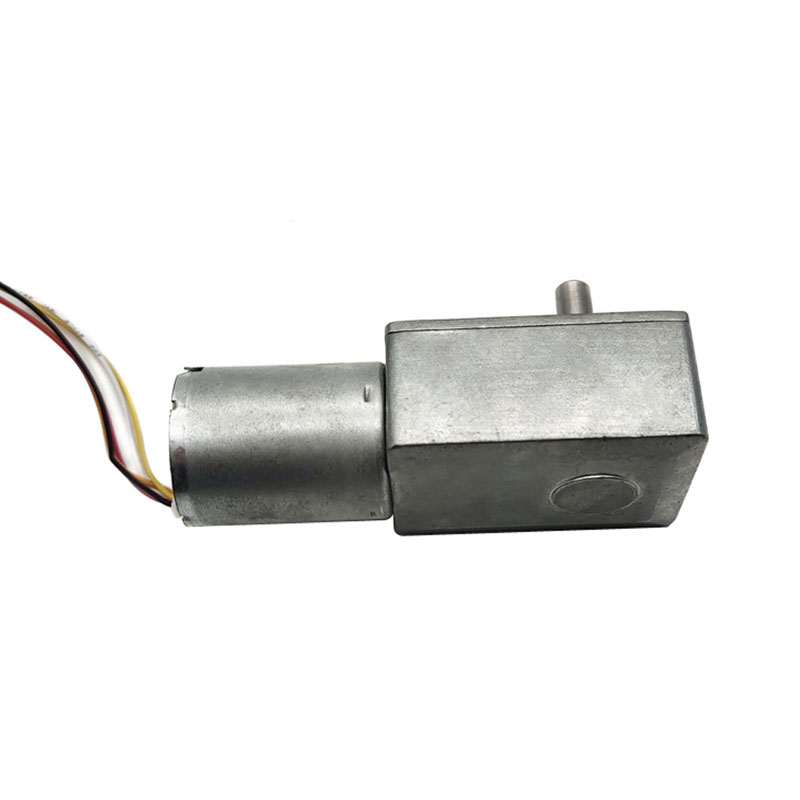

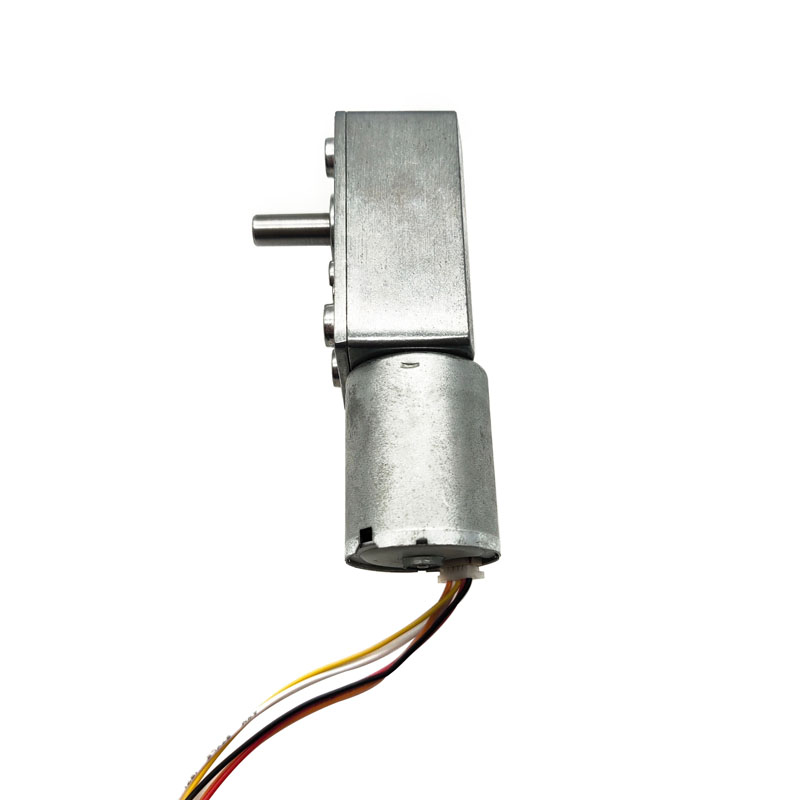

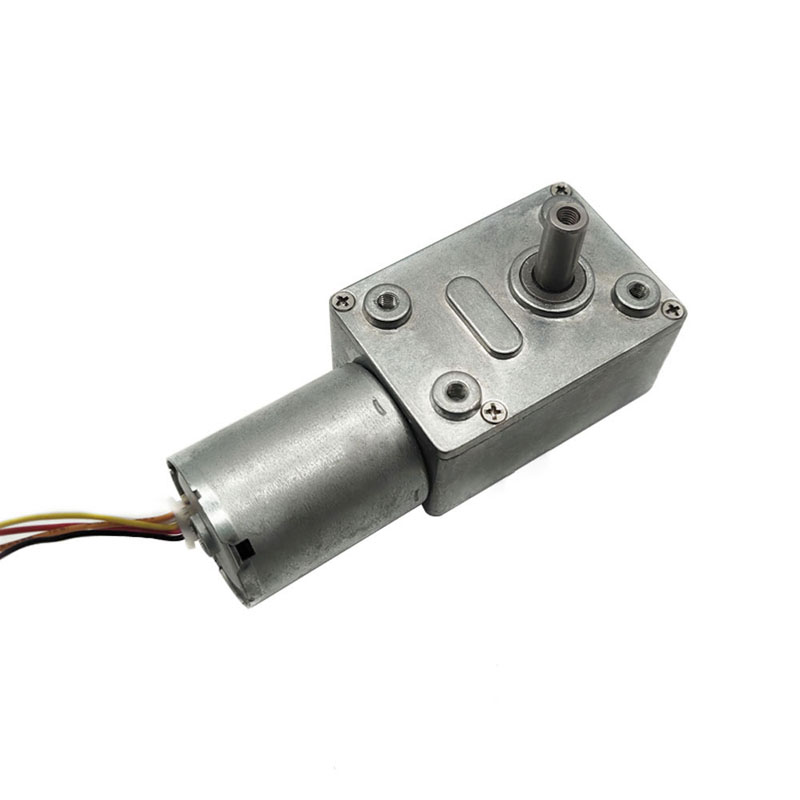

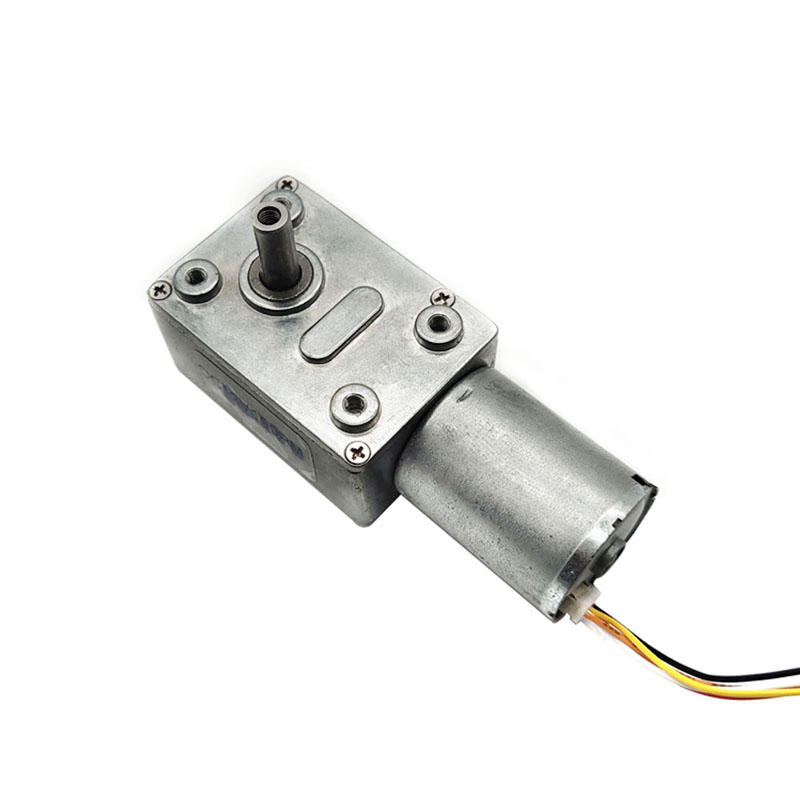

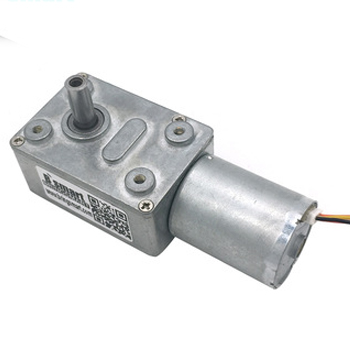

JGY-2430 Brushless 12 Volt DC Worm Gear Motor Reduction Gearbox Engine Self-locking Reversible

JGY-2430 Brushless 12 Volt DC Worm Gear Motor Reduction Gearbox Engine Self-locking Reversible

Voltage： DC12V 24V
WhatsApp  Message
产品详情

·JGY-2430 Brushless 12 Volt DC Worm Gear Motor Reduction Gearbox Engine Self-locking Reversible

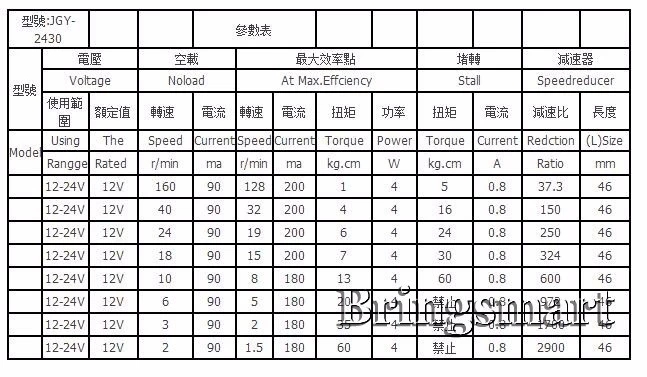

Model: JGY-2430
Working voltage range: 12-24V
Rated 12V No Load Speed: 160rpm 40rpm 24rpm 18rpm 10rpm 6rpm 3rpm 2rpm

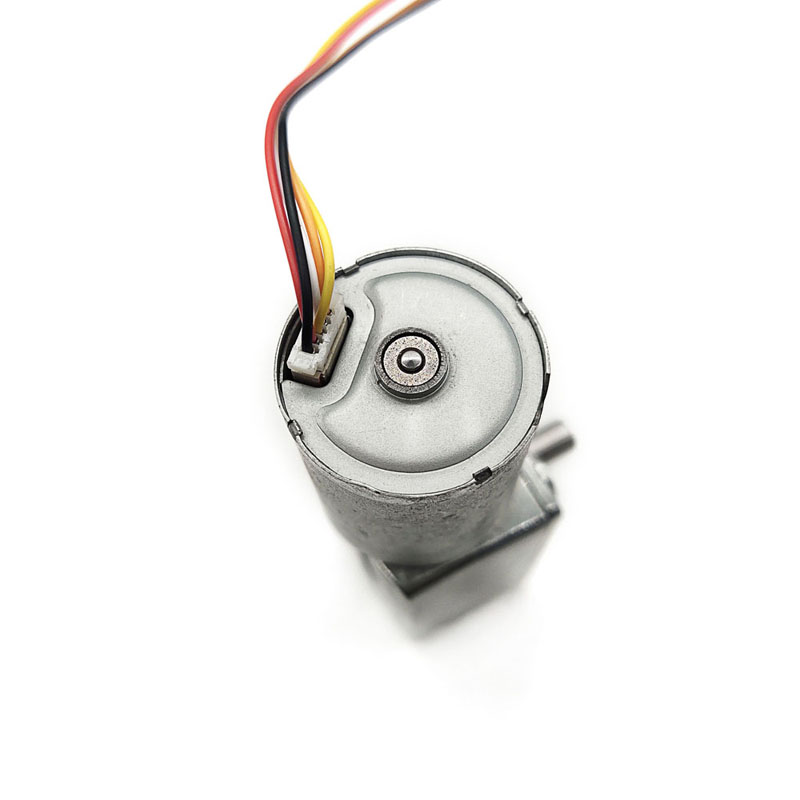

Wiring Method:
black line & White line: power supply negative -
Red line: power supply positive +
White Line: Line Disconnect Brakes immediately.
Orange Line: CW / CCW commutation line, the yellow line to the black line change turned.
Yellow Line: FG output signal line Hall signal
White line: PWM pulse width speed line can be connected to 0-5V PWM converter

H7630f58665914a1f8d7b22795fd56476M.jpgHTB1UiTwQXXXXXbJXFXXq6xXFXXXo.jpg_.webp.jpgHd69e16b64c364a32a8fb43b5cb18afe3B.jpgHe13458a6b9ad402ab538e6a7b87e8787B.jpg_350x350.jpgH106801c80b064c91bd012ccf787877295.jpg
