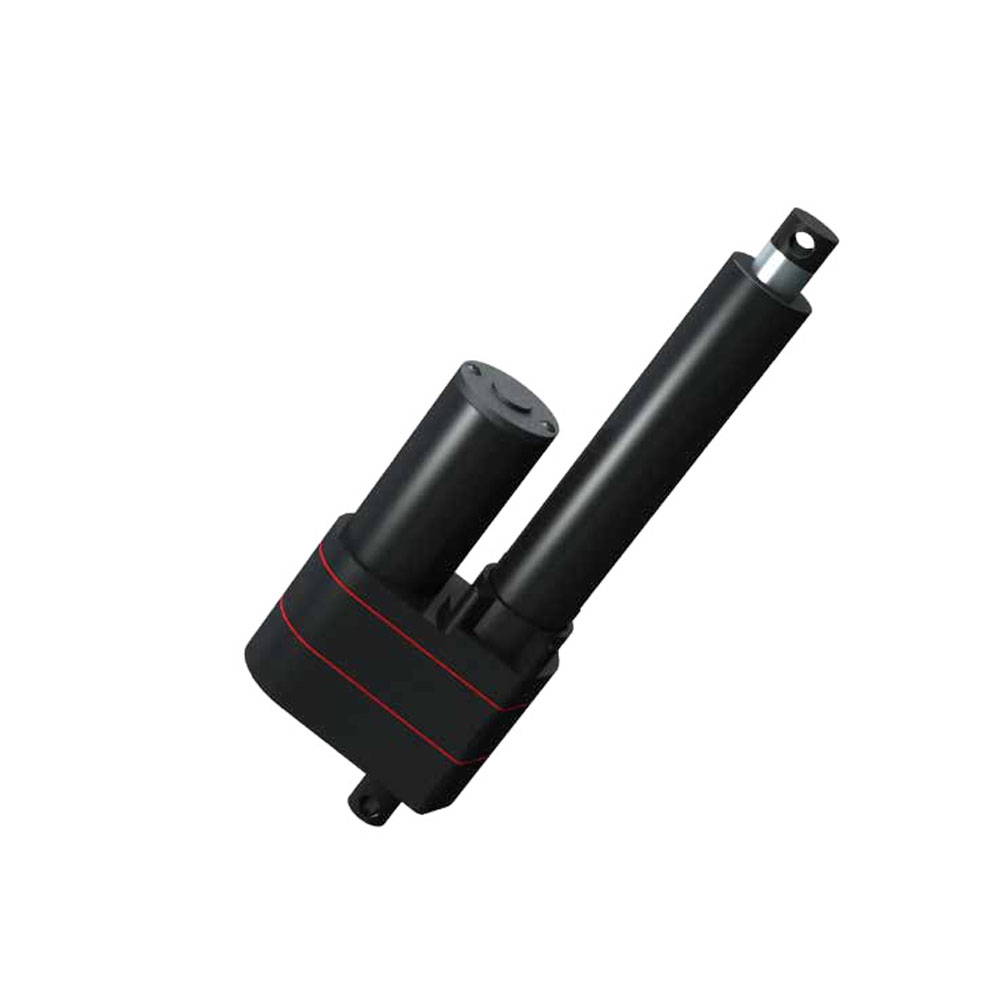

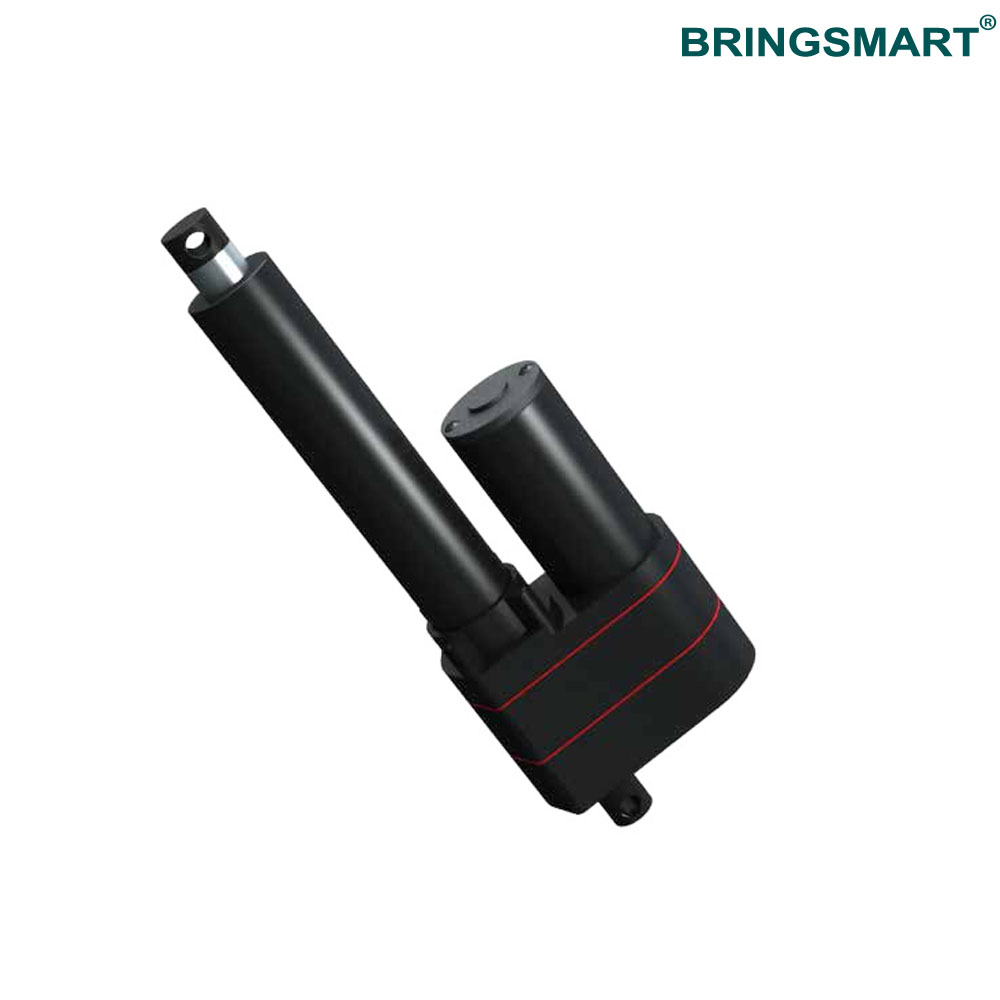

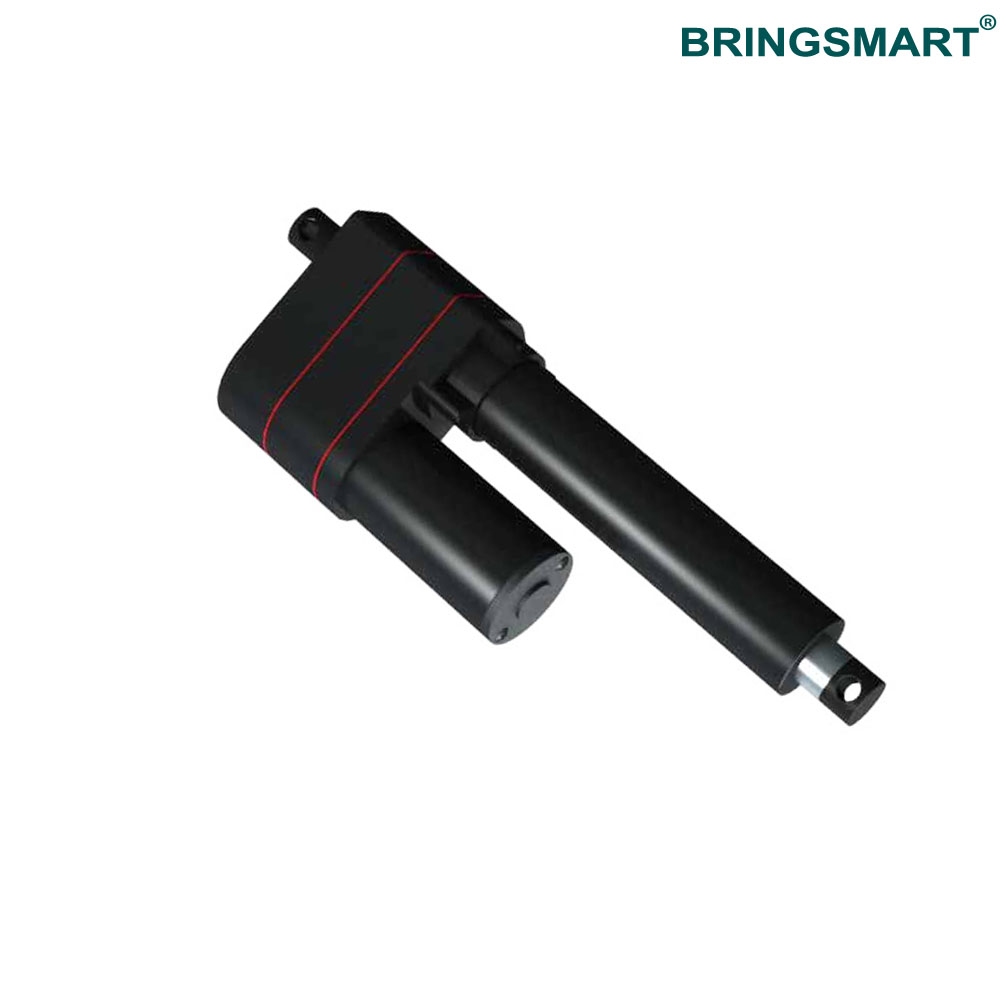

Product introduction:
Aluminum alloy, compact design, use good quality DC gear motor, built-in micro switch, can be stopped automatically when stroke is completed; stroke can be customized, easy to install, easy to operate; can replace hydraulic and pneumatic and other traditional products, green security, widely used in aircraft, ships, luxury car seat back down and massage chair massage beds, fire equipment,medical equipment, furniture and other products... ...
Feature:
CE ROSH Certificated;
Max. 50,000 times test.
Operating temperature: -20 to +65 degrees Celsius
Shell and telescopic material: aluminum alloy
Gear material: powder metallurgy metal
Protection level: IP65
Size:
Customized service:
Voltage: 12v, 24v, 36v, 48v;
Stroke: 0-500mm; other size, please contact us.
Load: 0-7000N/0-700KGS.
Speed: according to the load.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

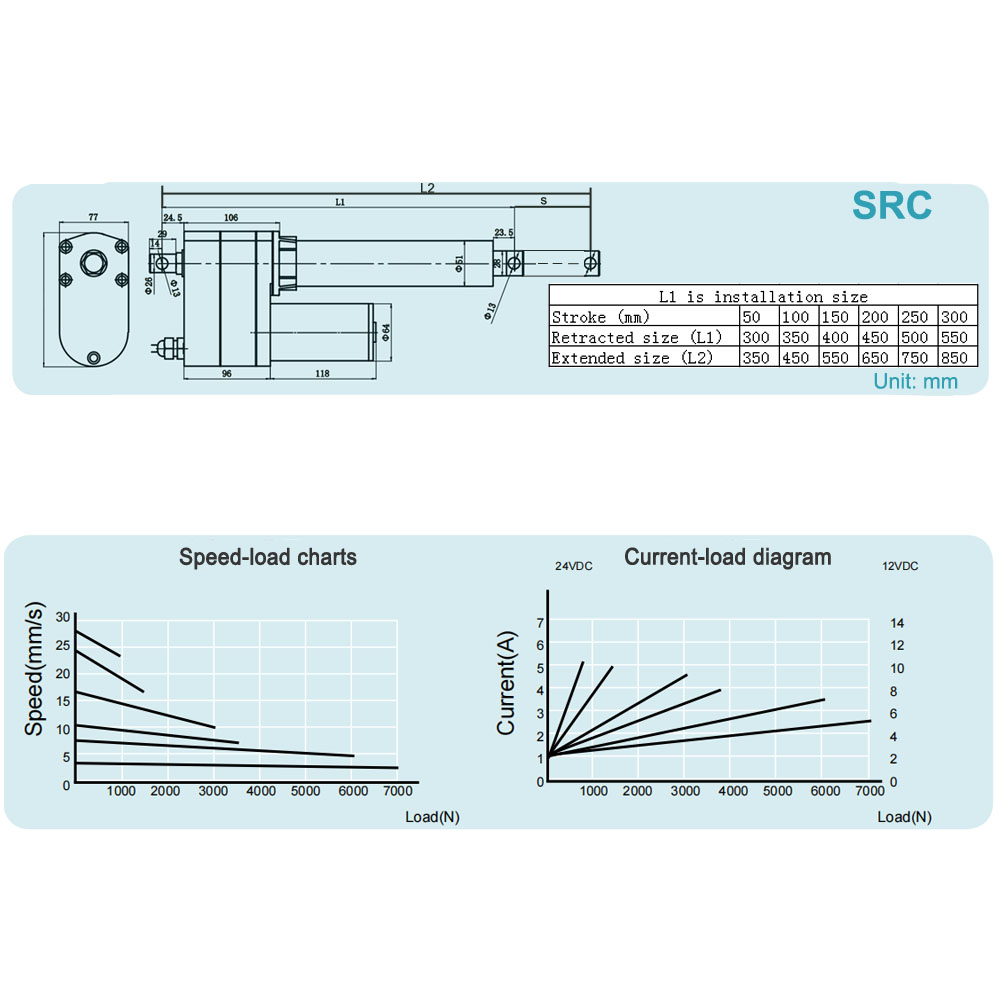

| Voltage | 12v 24v 36v 48v |
|
| Max Load (N) | 7000 | 6000 | 5000 | 4000 | 3000 | 2000 | 1500 |
| Max speed (mm/s) | ≤5 | ≤6 | ≤7 | ≤10 | ≤16 | ≤20 | ≤25 |
| 5000N=500KG
|
|
Please leave message of voltage, stroke, load which you want, we will reply you soon.
Or send email: sales5@bringsmart.com
